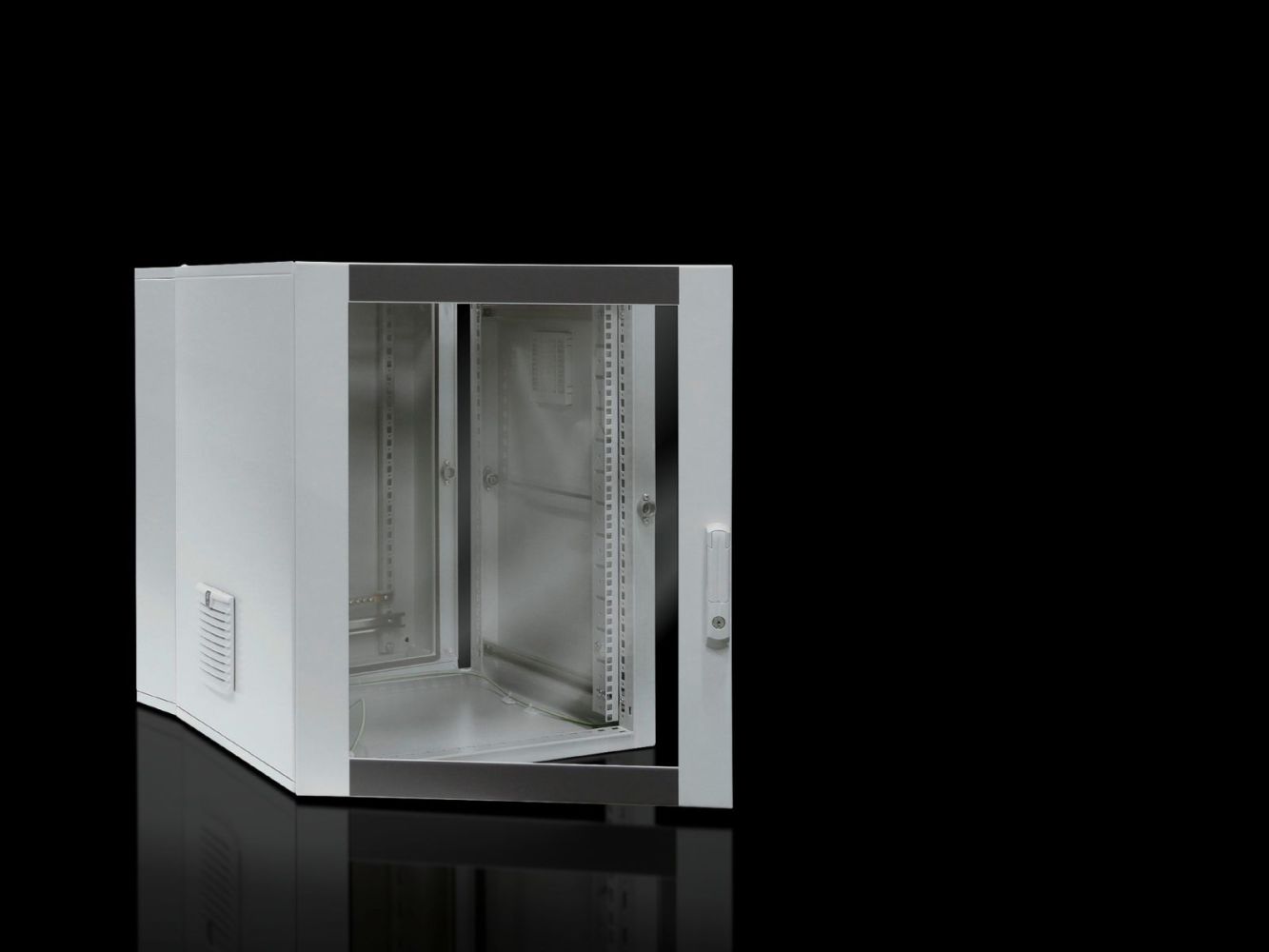

Rittal wall-mounted distributor DK prev. W x H x D 600x746x573 mm 3-piece (freight shipping)
|
-9% 736,46 EUR 808,46 EUR |
|
|
( 876,39 EUR incl. VAT ) ≈ £622.31 | ≈ $823.36 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| End-Of-Life: | 09. Jul 2025 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 724463 |
| Mfg Part No: | 7715735 |
| UPC/EAN: | 4028177324244 |
| Weight: | 45 kg |
| Type: | DK 7715735 |
Further Walls and Doors from RittalFurther products in category Walls and Doors
All products of Rittal
Product information for Rittal 7715735:
Wall-mounted enclosure with optimum accessibility due to hinged part.
Material: Wall and hinged part: Sheet steel, 1.5 mm
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: Wall and hinged part: RAL 7035
Glazed door: RAL 7035/7015 (slate grey)
Protection category IP to IEC 60 529: IP 54 in conjunction with solid gland plate
Supply includes: Wall section
Hinged part with 25 mm pitch pattern of holes in the front and rear frame
Designer glazed door
Wall section: Gland plate, solid, top
Wall section: Gland plate with brush strip, bottom
Wall section: 2 vertical punched rails
Wall section: C rail mounted horizontally for cable clamping
Hinged part with two 482.6 mm (48,3 cm ( 19 inch )) mounting angles, fully depth adjustable
Hinged part: Side outlet filters left and right
Earth rail with star earthing
4 wall mounting brackets 10 mm
Mini-comfort handle
Security lock 3524 E
Note: Enclosure 673 mm deep with reinforced wall mounting bracket
Packs of: 1 pc(s).
EAN: 4028177324244
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC000261
Design: Pre-configured
Dimensions: Width: 600 mm
Height: 746 mm
Units: 15 U
Depth: 573 mm
Depth hinged part: 416 mm
Installation depth: 520 mm
Clearances: Clearance width: 502 mm
Clearance height: 683 mm
Wall section: Depth: 135 mm
Load capacity: Hinged part, static (max.): 75 kg
Weight/pack: 48.3 kg
Material: Wall and hinged part: Sheet steel, 1.5 mm
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: Wall and hinged part: RAL 7035
Glazed door: RAL 7035/7015 (slate grey)
Protection category IP to IEC 60 529: IP 54 in conjunction with solid gland plate
Supply includes: Wall section
Hinged part with 25 mm pitch pattern of holes in the front and rear frame
Designer glazed door
Wall section: Gland plate, solid, top
Wall section: Gland plate with brush strip, bottom
Wall section: 2 vertical punched rails
Wall section: C rail mounted horizontally for cable clamping
Hinged part with two 482.6 mm (48,3 cm ( 19 inch )) mounting angles, fully depth adjustable
Hinged part: Side outlet filters left and right
Earth rail with star earthing
4 wall mounting brackets 10 mm
Mini-comfort handle
Security lock 3524 E
Note: Enclosure 673 mm deep with reinforced wall mounting bracket
Packs of: 1 pc(s).
EAN: 4028177324244
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC000261
Design: Pre-configured
Dimensions: Width: 600 mm
Height: 746 mm
Units: 15 U
Depth: 573 mm
Depth hinged part: 416 mm
Installation depth: 520 mm
Clearances: Clearance width: 502 mm
Clearance height: 683 mm
Wall section: Depth: 135 mm
Load capacity: Hinged part, static (max.): 75 kg
Weight/pack: 48.3 kg
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
