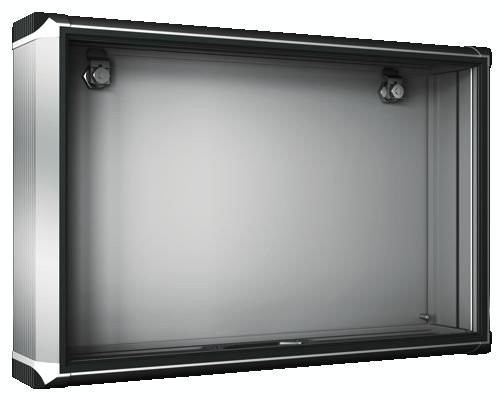

Rittal 6380020 CP Optipanel, for front panel BH 430x343 mm, installation depth 100 mm, Extruded aluminum section, Support arm connection 120x65 mm
|
282,56 EUR 284,86 EUR |
|
|
( 336,25 EUR incl. VAT ) ≈ £242.72 | ≈ $323.81 plus delivery charges: 83,00 € |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 595686 |
|---|---|
| Mfg Part No: | 6380020 |
| UPC/EAN: | 4028177429079 |
| Weight: | 6.208 kg |
Product information for Rittal 6380020:
Benefits: Aluminium enclosure, high thermal conductivity for optimum passive heat dissipation.
Low weight coupled with high stability
Compatible with all Rittal stand and support arm systems
Material: Enclosure: Extruded aluminium section
Corner pieces: Die-cast zinc
Corner protectors: Plastic
Colour: Enclosure: Natural anodised.
Corner pieces: RAL 7035
Corner protectors: similar to RAL 7024
Protection category IP to IEC 60 529: IP 65
Supply includes: Enclosure with hinged rear panel
Seals
Note: The support arm connection may be swapped over by rotating the enclosure
3 mm double-bit lock insert may be exchanged for 41 mm lock inserts, plastic handles and T handles, type C
Hinging of the rear panel on the longest enclosure side
Packs of: 1 pc(s).
EAN: 4028177429079
Customs tariff number: 94032080
eCl@ss 5.1: 27180505
eCl@ss 7.0: 27180505
ETIM 6.0: EC002504
Design: Support arm connection, rectangular 120 x 65 mm
to fit TFT monitor
For the configuration of subracks: To fit front panel width: 430 mm
Installation depth: 100 mm
To fit front panels: with width: 430 mm
with height: 343 mm
Lock version: Cam
Number of locks: 2
Lock insert: 3 mm double-bit
Weight/pack: 5.3 kg
Type: CP 6380020
