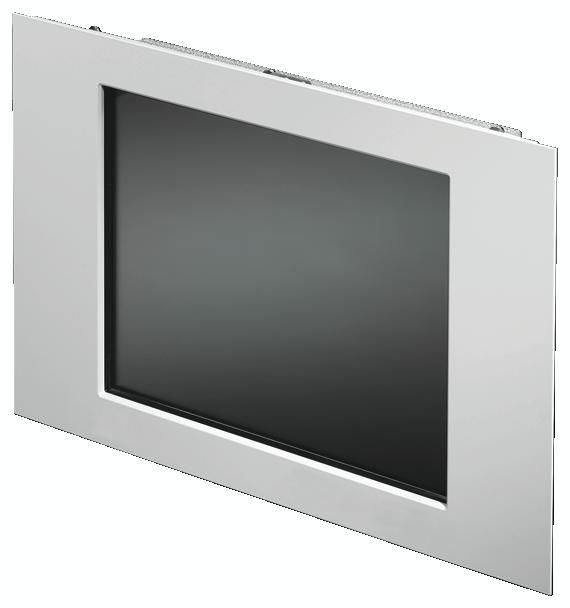

Rittal 6450010 SM TFT monitor, 38,1 cm ( 15 inch )
|
1.544,45 EUR 1.571,71 EUR |
|
|
( 1.837,90 EUR incl. VAT ) ≈ £1,328.23 | ≈ $1,760.67 plus delivery charges: 83,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Lieske Part No.: | 880079 |
|---|---|
| Mfg Part No: | 6450010 |
| UPC/EAN: | 4028177389991 |
| Weight: | 6.52 kg |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 6450010:
Installation variant for surfaces and command panels.
Benefits: High-quality industrial design
Reduced installation work thanks to integral front frame
No additional ventilation required
Very small installation depth (45 mm)
Material: Front frame: Aluminium
Surface finish: Powder-coated
Colour: RAL 7035
Protection category IP to IEC 60 529: IP 65 (at the front)
Supply includes: Seal
Hex nuts (for installation in surfaces)
VGA cable
Rear threaded bolts M5 (14 units)
Touch variants additionally with integral connection cable and driver CD-ROM.
With anti-reflection coated safety glass screen.
Note: Other variants as resistive touchscreen with serial or USB interface available on request.
Packs of: 1 pc(s).
EAN: 4028177389991
Customs tariff number: 85286910
eCl@ss 5.1: 27189229
eCl@ss 7.0: 27189190
ETIM 6.0: EC001428
Design: without touchscreen
Dimensions: Width: 430 mm
Height: 343 mm
Rated operating voltage: 12 V (DC)
Operating temperature: Operation (environment): +0°C...+50°C
Bearing: -40°C...+85°C
Power consumption: With DC: 15 W
Display features: Diagonal: 38,1 cm ( 15 inch )
Resolution of display: 1024 x 768 pixels
Resolution of controller: VGA
Resolution of controller: SVGA
Resolution of controller: XGA
Number of colours: 16.2
Brightness (typ.): 400 cd/m²
Contrast ratio: 700 : 1
Reading angle horizontal (left/right): 80 °
Reading angle vertical (top/bottom): 70 °
Lamp life:
V-Sync. (min./max.): 60 Hz - 75 Hz
On-screen display (OSD): Operating buttons at the rear
Interfaces/connections: General: VGA (D-Sub HD 15-pole)
General: DVI-D
Weight/pack: 6.52 kg
Type: SM 6450010
Benefits: High-quality industrial design
Reduced installation work thanks to integral front frame
No additional ventilation required
Very small installation depth (45 mm)
Material: Front frame: Aluminium
Surface finish: Powder-coated
Colour: RAL 7035
Protection category IP to IEC 60 529: IP 65 (at the front)
Supply includes: Seal
Hex nuts (for installation in surfaces)
VGA cable
Rear threaded bolts M5 (14 units)
Touch variants additionally with integral connection cable and driver CD-ROM.
With anti-reflection coated safety glass screen.
Note: Other variants as resistive touchscreen with serial or USB interface available on request.
Packs of: 1 pc(s).
EAN: 4028177389991
Customs tariff number: 85286910
eCl@ss 5.1: 27189229
eCl@ss 7.0: 27189190
ETIM 6.0: EC001428
Design: without touchscreen
Dimensions: Width: 430 mm
Height: 343 mm
Rated operating voltage: 12 V (DC)
Operating temperature: Operation (environment): +0°C...+50°C
Bearing: -40°C...+85°C
Power consumption: With DC: 15 W
Display features: Diagonal: 38,1 cm ( 15 inch )
Resolution of display: 1024 x 768 pixels
Resolution of controller: VGA
Resolution of controller: SVGA
Resolution of controller: XGA
Number of colours: 16.2
Brightness (typ.): 400 cd/m²
Contrast ratio: 700 : 1
Reading angle horizontal (left/right): 80 °
Reading angle vertical (top/bottom): 70 °
Lamp life:
50000 h
H-Sync. (min./max.): 31.4 kHz - 80 kHzV-Sync. (min./max.): 60 Hz - 75 Hz
On-screen display (OSD): Operating buttons at the rear
Interfaces/connections: General: VGA (D-Sub HD 15-pole)
General: DVI-D
Weight/pack: 6.52 kg
Type: SM 6450010
