Rittal 6321050 AX command panel housing for table-TFT up to 61 cm ( 24 inch ), 650x450x155

Your rating:
Average rating
product review for Rittal 6321050 AX command panel housing for table-TFT up to 61 cm ( 24 inch ), 650x450x155
( 4.5 / 5 ) 6 ratings
Rittal 6321050
This image may differ from the desired article.
Rittal 6321050Rittal 6321050Rittal 6321050Rittal 6321050Rittal 6321050Rittal 6321050Rittal 6321050
-10% 391,00 EUR 432,19 EUR
( 465,29 EUR incl. VAT )
≈ £327.27  |  ≈ $429.71
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 6321050 AX command panel housing for table-TFT up to 61 cm ( 24 inch ), 650x450x155
Datasheet:file_download Download
Lieske Part No.:1598197
Mfg Part No: 6321050
UPC/EAN: 4028177923249
Weight:15.8 kg
Type:AX 6321050

Product information for Rittal 6321050:

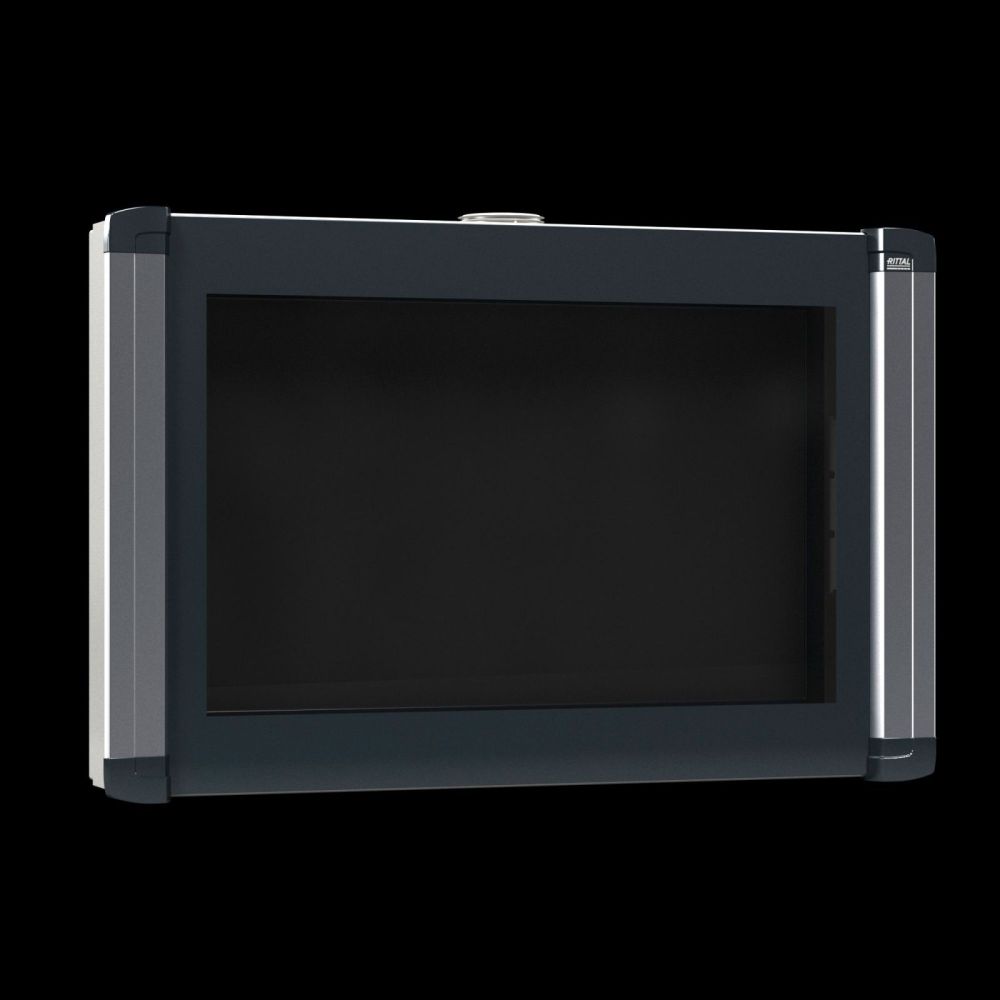

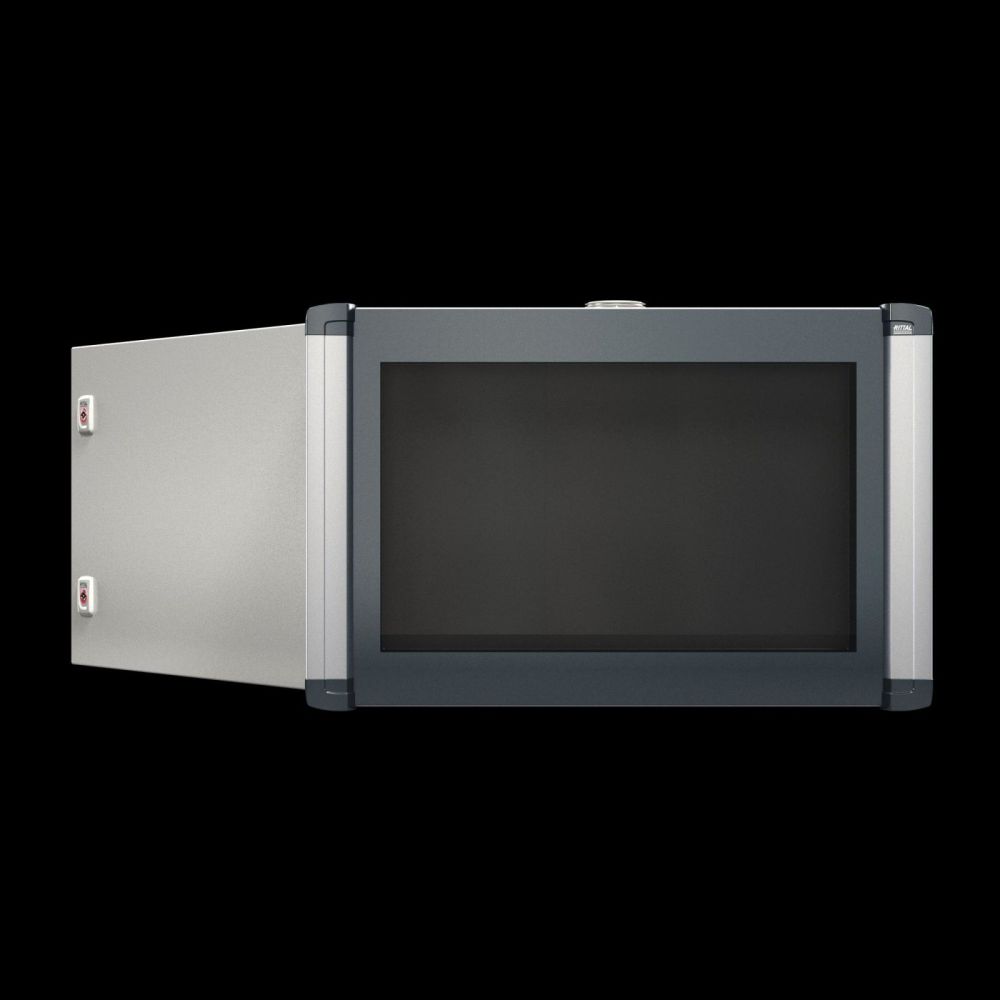

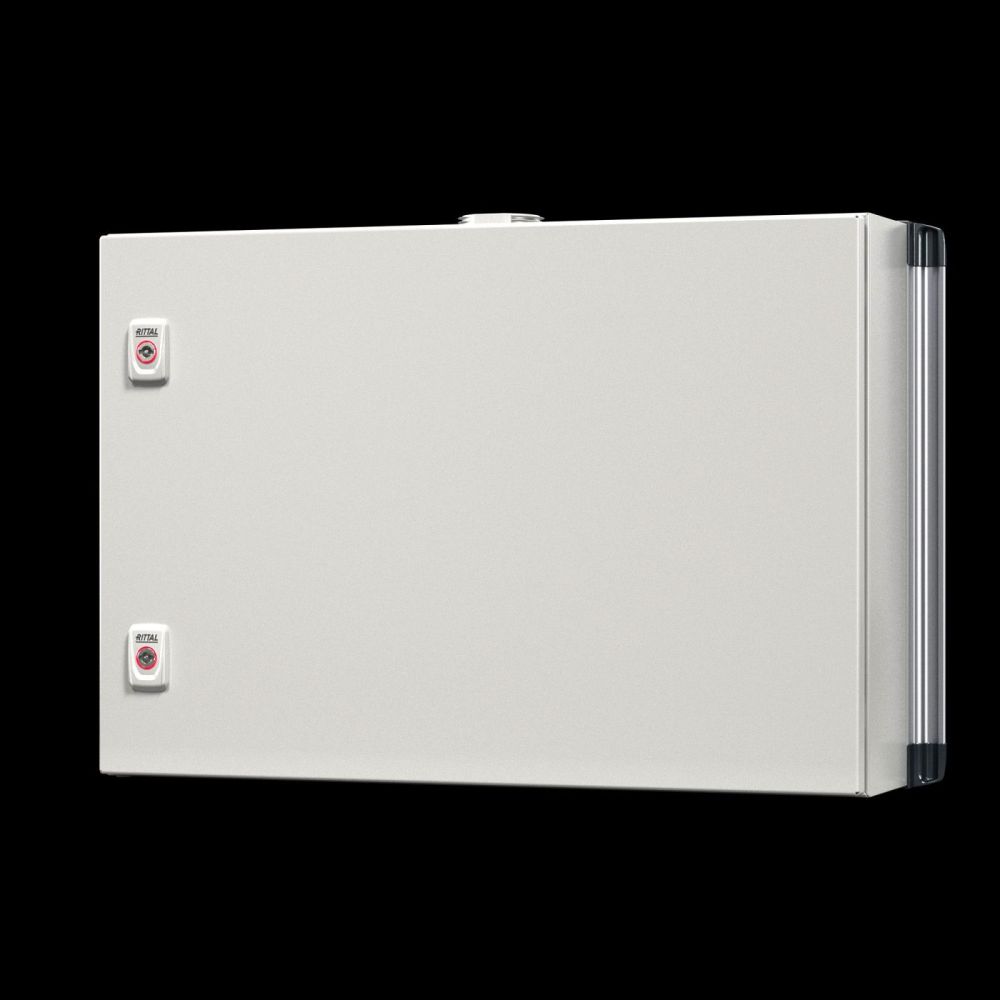

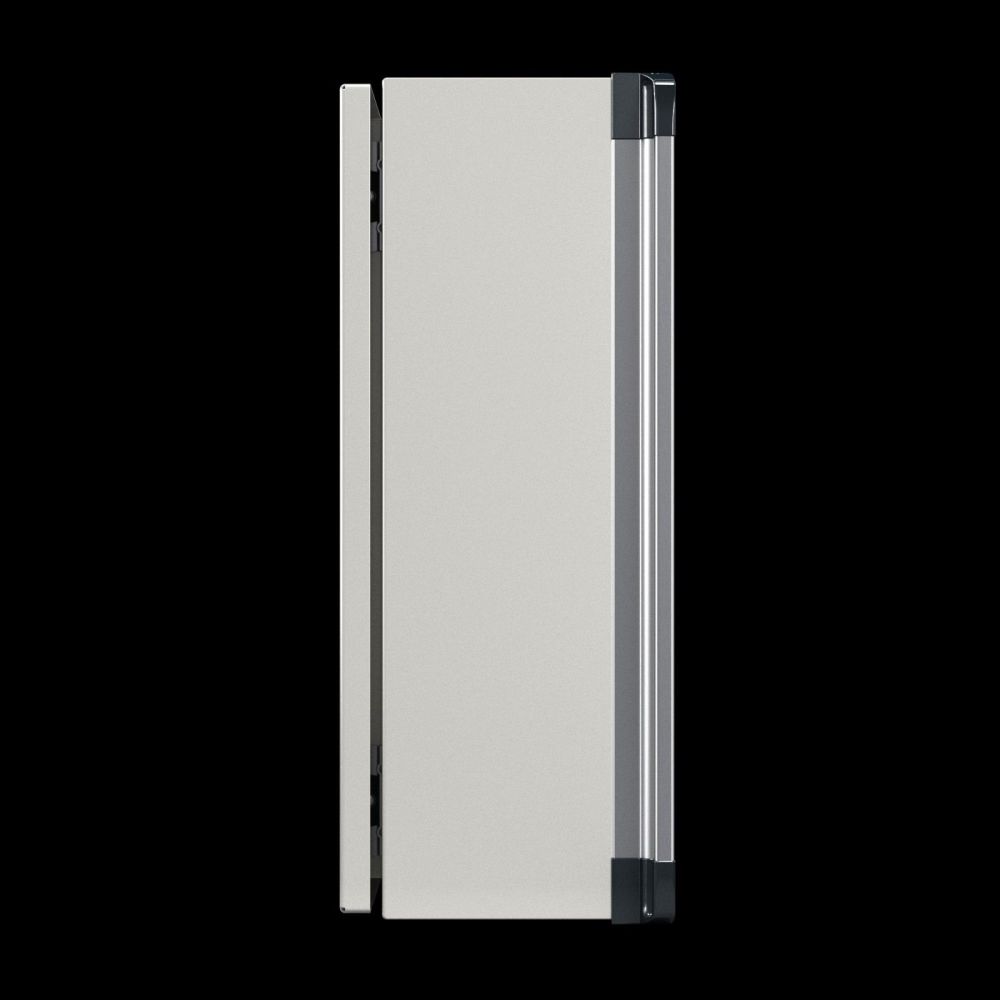

The Rittal AX 6321050 is a command panel housing for desktop TFTs with screen diagonals up to 24 inches in formats 16:9 and 16:10. It serves as a protective housing for industrial or stationary applications where a TFT monitor must be protected against dust, splashing water, and mechanical impacts. The housing is made of sheet steel and offers a robust, long-lasting construction for use in production environments, laboratories, or other technical facilities. The surface is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035, ensuring high resistance to corrosion and mechanical stress. The grip strips are made of aluminium and are naturally anodized, providing good corrosion resistance and an aesthetically pleasing appearance.

Applications
This housing is designed for use in industrial environments where a TFT monitor must be protected from external influences. It is suitable, for example, for control and operating stations in manufacturing, logistics, or automation technology. The protection rating IP 65 according to IEC 60 529 ensures that the housing is dust-tight and protected against splashing water from all directions. Additionally, it meets protection ratings NEMA 1 and NEMA 12 as well as Type ratings Type 1 and Type 12 according to UL 50E, confirming its suitability for indoor environments with increased mechanical or moist stress. The IK code IK08 indicates that the housing is resistant to mechanical impacts such as shocks or vibrations with a defined energy level.

Functions and Equipment in Detail

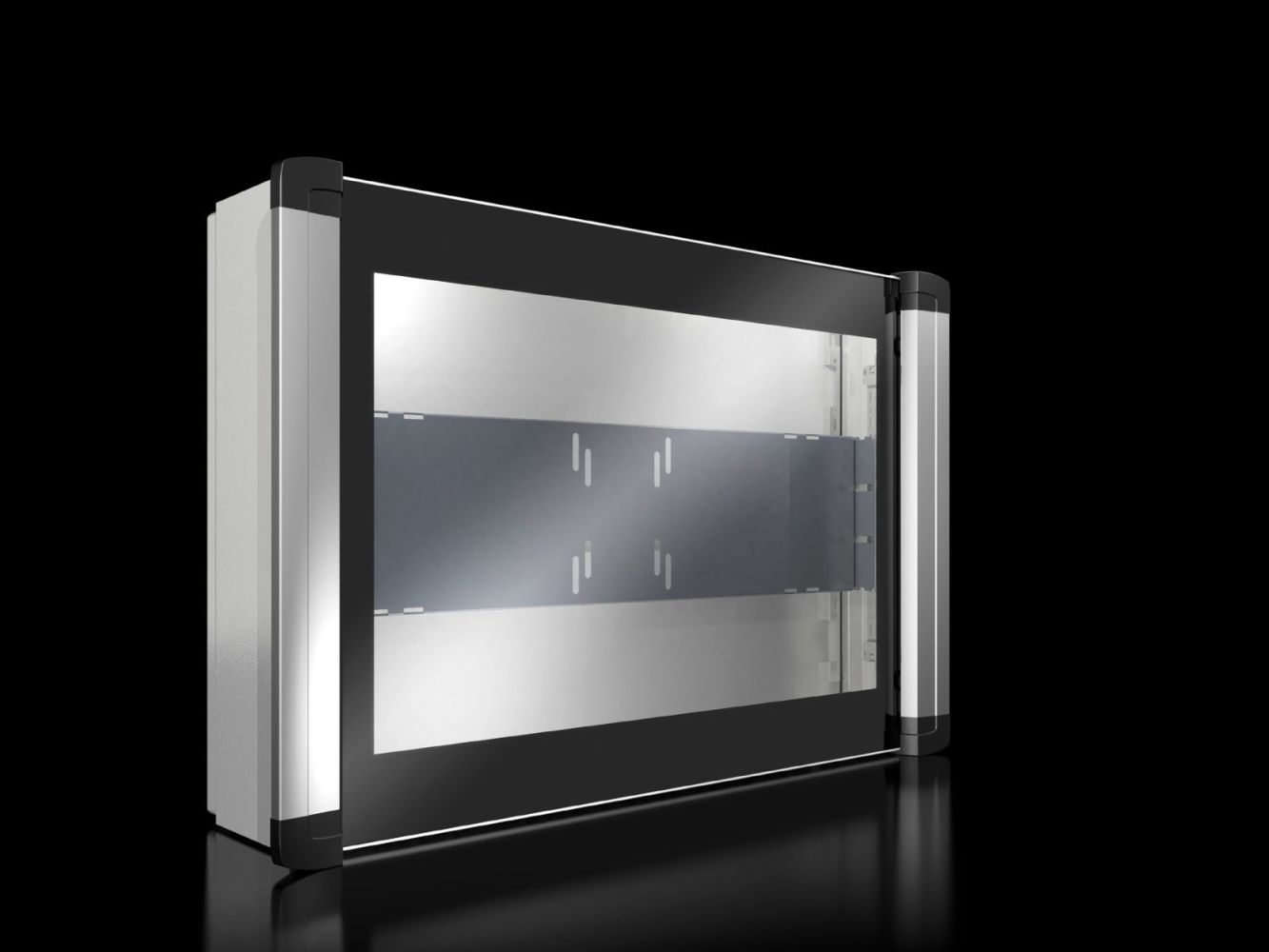

The housing is equipped with a viewing window made of single-pane safety glass, which allows clear visibility of the screen without compromising the protective function. The integrated TFT mounting bracket supports the VESA standard mounting 75/100, enabling common desktop TFTs to be mounted easily and securely. The door is rear-mounted and hinged on the right, allowing access to the monitor from the rear. The door is secured using a latch lock with a 3 mm double-barrel lock insert, ensuring a secure and reliable locking mechanism. The side grip strips and plastic end caps (similar to RAL 7024) provide an ergonomic grip and a seamless visual appearance.

Technology Explained Simply
The construction of the housing allows for easy exchange of the door hinge and mounting arm connection by rotating the housing, making installation flexible. The mounting arm connection is designed for a diameter of 130 mm and can optionally be pre-formed off-centre in the reinforcement plate, allowing it to be easily drilled out. The interior includes a shaped internal mounting angle with system perforation, enabling flexible mounting of internal components. The continuous foamed PU seal ensures a tight seal between the housing and door, supporting the IP 65 protection rating.

Compatibility and Accessories
The housing is compatible with desktop TFTs that support the VESA standard mounting 75/100. As accessories, various lock inserts made of zinc die-cast with a length of 27 mm are available, allowing adjustment of the lock. Additionally, Mini comfort handles AX can be used as a replacement for the latch to facilitate access. Other compatible components include an adjustable-depth keyboard tray (128 to 228 mm) and a swivel tray for mouse pad, enhancing ergonomic workspace design. The AS Multitool AX/VX 4052000 serves as a tool for installation and maintenance.

Mounting and Installation
Mounting is done via the integrated VESA bracket, which is attached directly to the monitor. The door can be mounted on the rear or side by rotating the housing, simplifying installation at different locations. The reinforcement for the mounting arm connection allows secure fastening to a mounting arm or wall structure. The system perforation in the internal mounting angle allows flexible attachment of internal components.

Operational Advantages
The housing provides a high protection standard, extending the service life of the installed TFT and increasing operational safety. The robust construction from sheet steel and the powder-coated surface ensure high mechanical and chemical resistance. The integrated viewing window enables unobstructed operation, while the ergonomic grip strips and optional keyboard tray enhance user comfort. The replaceable lock and flexible mounting options increase adaptability to different operating conditions.

General
MaterialCabinet: sheet steel, door: sheet steel, continuous foamed PU seal, handle strips: aluminium, end caps: plastic, viewing window: single-pane safety glass, TFT holder: sheet steel
Surface protectionCasing and door: dip primed, externally powder coated, textured lacquer, handle strip: natural anodized
Basic colourRAL 7035
ColourHousing and door: RAL 7035, handle strip: natural anodized, cover caps: similar to RAL 7024
Scope of deliveryHousing with door, with breakout and reinforcement for arm connection Ø 130 mm, viewing window, holder for desktop TFT with VESA 75/100 mounting, side grip rails and covers, door at rear, hinged on right, deadbolt lock with 3 mm double barb insert, shaped internal mounting angle with system perforation
Width650 mm
Height450 mm
Depth155 mm
Degree of protection IP according to IEC 60 529IP 65
NEMA degree of protectionNEMA 1, NEMA 12
Type rating according to UL 50EType 1, Type 12
Number of locks2
IK codeIK08
NoteSwapping of mounting arm connection and door hinge by rotating the housing possible, Optional: mounting arm connection Ø 130 mm, offset in reinforcement plate pre-formed, can be easily drilled out, locking systems for rear service access: locking insert, interchangeable with Mini comfort handle AX, locking inserts 27 mm, type A
Base materialsteel sheet
LockClosure type: latch, number of closures: 2, closure insert: 3 mm double barb
PCF/VE (Cradle-to-Gate)59.5 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 6321050, EAN: 4028177923249
