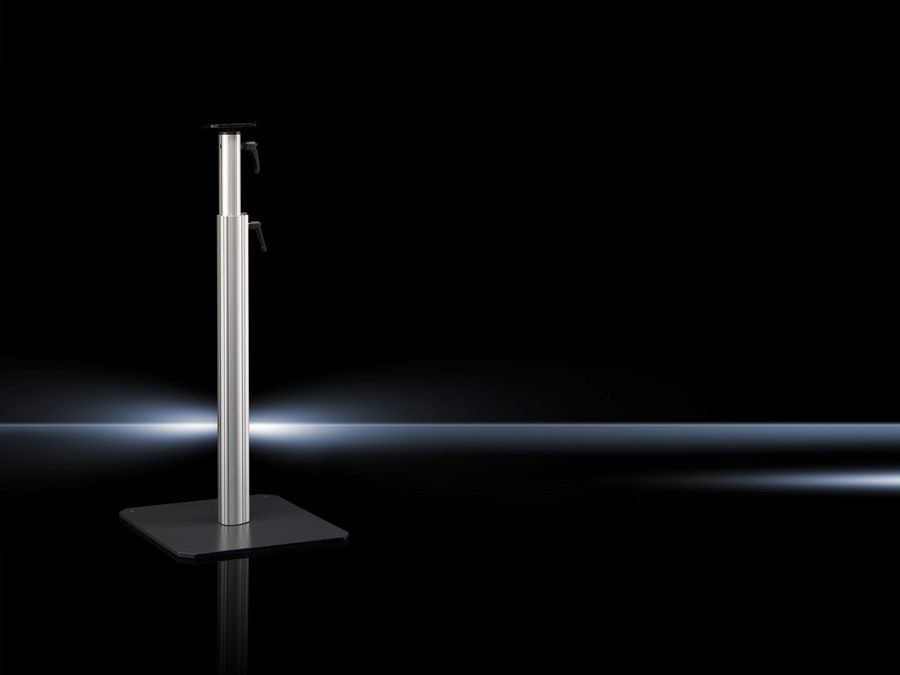

Rittal 6146100 Modular stand foot, base plate, 400x10x400 mm, load capacity

Your rating:
Average rating
product review for Rittal 6146100 Modular stand foot, base plate, 400x10x400 mm, load capacity
( 4.4 / 5 ) 28 ratings
Rittal 6146100
This image may differ from the desired article.
99,48 EUR
( 118,38 EUR incl. VAT )
≈ £83.26  |  ≈ $109.33
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 6146100 Modular stand foot, base plate, 400x10x400 mm, load capacity
Datasheet:file_download Download
Lieske Part No.:404346
Mfg Part No: 6146100
UPC/EAN: 4028177384552
Weight:13.7 kg
Type:CP 6146100

Product information for Rittal 6146100:

The Rittal CP 6146100 is a stand leg base plate made of steel, designed for use in the modular CP 40 system. It serves as a stable foundation for stand leg constructions in enclosures and industrial installations. The base plate is stationary and available in the colour RAL 7035, enabling visual harmonization with other components of the CP system. With dimensions of 400 mm width, 400 mm depth, and a height of 10 mm, it provides a compact yet robust platform. The static load capacity is 15 kg, sufficient for mounting devices or as a base for support arms. The delivery includes the stand leg base plate and a traverse, which serves to connect with other components.

Applications

The base plate is primarily used in industrial environments where stable and modular mounting structures are required for enclosures, controls, or other electrical components. It is part of the CP 40 system, developed for flexible and scalable enclosure construction. Its use in combination with stand legs enables secure floor mounting of enclosures, especially in environments where wall- or ceiling-mounted installation is not feasible.

Functions and Equipment in Detail

The stand leg base plate is made of steel, ensuring high mechanical stability and durability. The traverse, included in the delivery, serves as a connecting element and enables integration into existing support structures. The dimensions of 400 mm × 400 mm × 10 mm are aligned with the standard sizes of the CP 40 system, allowing for easy mounting and combination with other components. The static load capacity of 15 kg ensures stability under normal operating conditions.

Technology Explained Simply

The base plate is designed as a stationary component, meaning it is not movable or rotatable, but functions as a fixed base. The colour RAL 7035 is a grey tone commonly used in industry for technical components to ensure uniform visual design. The traverse, delivered together with the base plate, enables mechanical connection with other system elements, such as support arms or profiles. The static load capacity of 15 kg is sufficient for mounting light to medium-weight devices or as a base for height-adjustable support profiles.

Compatibility and Accessories

The CP 6146100 is specifically developed for the CP 40 system and can be combined with various accessories. These include, for example, couplings for support arm connections in dimensions 120x65 mm and 90x71 mm, as well as mounting elements for support arms. Additionally, height-adjustable support profiles (732x1122 mm) and tilt adjustment units for support profiles (model 6146200) are available, enabling flexible adjustment of mounting height and tilt. The double swivel caster VX/TS can also be used to increase the mobility of enclosures if required during operation.

Mounting and Installation

Installation is carried out by securing the base plate to a suitable substructure, with the traverse serving to connect with other components of the CP 40 system. The static load capacity of 15 kg must be considered when planning load distribution. The dimensions of 400 mm × 400 mm × 10 mm allow for easy integration into existing systems. The use of appropriate couplings and mounting elements ensures a secure and stable installation.

Advantages in Operation

The stand leg base plate provides a stable and modular foundation for enclosures in the CP 40 system. The use of steel ensures high mechanical strength, while the dimensions and compatibility with other components enable flexible and scalable system design. The static load capacity of 15 kg is sufficient for typical applications in industrial environments. The integrated traverse simplifies mounting and connection with other components, reducing installation time and enhancing system integrity.

General
ModelStationary
ColourRAL 7035
Scope of deliverystand foot base plate/bracket
Load capacity (static)15 kg
Width400 mm
Height10 mm
Depth400 mm


Product data sheet
Datasheet for Rittal 6146100, EAN: 4028177384552
