Rittal 6501050 Coupling CP 40, steel, for mounting arm connection 90x71 mm

Your rating:
Average rating
product review for Rittal 6501050 Coupling CP 40, steel, for mounting arm connection 90x71 mm
( 4.5 / 5 ) 53 ratings

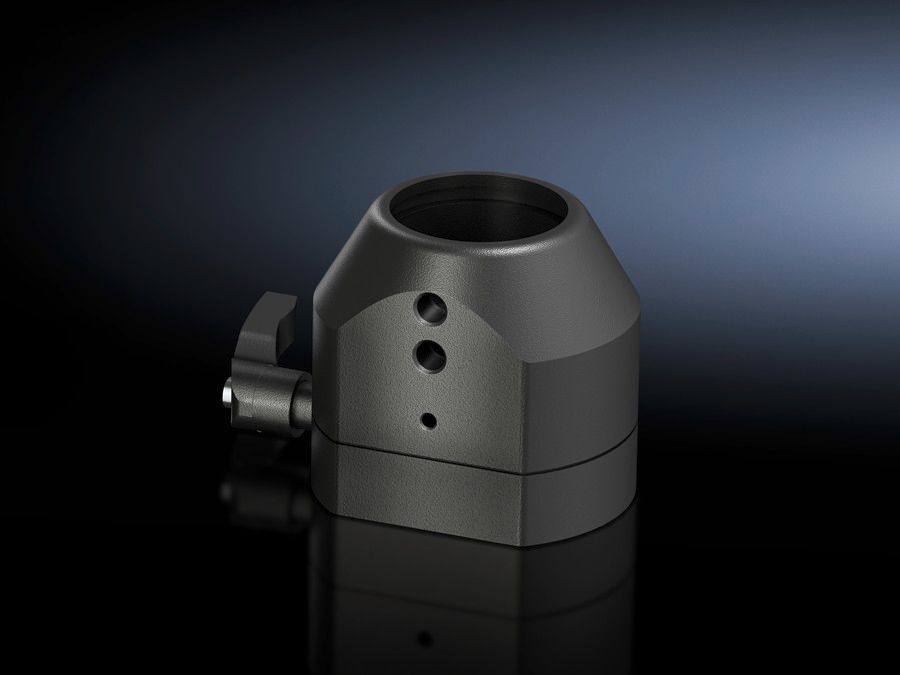

Rittal 6501050
This image may differ from the desired article.
76,59 EUR 79,65 EUR
( 91,14 EUR incl. VAT )
≈ £64.11  |  ≈ $84.17
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 6501050 Coupling CP 40, steel, for mounting arm connection 90x71 mm
Datasheet:file_download Download
Lieske Part No.:710764
Mfg Part No: 6501050
UPC/EAN: 4028177262911
Weight:1.32 kg
Type:CP 6501050

Product information for Rittal 6501050:

The Rittal CP 6501050 is a housing coupling of type CP 40, specifically designed for the rotatable mounting of enclosures or housings on the vertical part of the support arm system 40. The product serves as a connecting element between the enclosure and the support arm, enabling a flexible, swivelling installation. The coupling is made of zinc and features a structured coating in the colour RAL 7024, a grey-brown tone commonly used in industrial environments. The surface is designed to withstand mechanical stress and environmental influences during operation.

Applications
The coupling is used in industrial environments where enclosures or electronic housings are mounted on support arms, for example in production plants, automation systems, or during the installation of control and distribution units. The rotatable mounting allows for optimal alignment of the housing to ensure accessibility, maintenance, or adaptation to spatial conditions. Its use within the support arm system 40 makes it compatible with a wide range of Rittal system components.

Functions and Features in Detail
The coupling is rotatable/tiltable and offers a swivelling range of approximately 305°, providing extensive mobility. The position can be secured using a clamp lever, ensuring the housing remains fixed in the desired position. This is particularly advantageous when mounting in confined spaces or adapting to different viewing angles. The coupling is designed for a support arm connection with dimensions of 90 x 71 mm, enabling direct compatibility with standard components of the Rittal system.

Technology Explained Simply
The zinc construction ensures sufficient strength and corrosion resistance, while the structured coating provides an additional protective layer against mechanical damage and environmental influences. The swivelling function is achieved through an integrated joint that can be locked using the clamp lever. This design allows for simple yet secure installation without requiring additional tools.

Compatibility and Accessories
The coupling is specifically developed for Rittal’s support arm system 40 and is designed to fit standard dimensions of 90 x 71 mm. It is therefore directly compatible with other components of this system, such as support arms, mounting plates, or enclosures designed for this system.

Mounting and Installation
Installation is carried out by attaching the coupling to the vertical component of the support arm system 40. The swivelling function is activated and secured via the clamp lever, allowing the housing position to be individually adjusted. The installation requires no special tools, as fastening is done through the designated connection points.

Operational Advantages
The rotatable mounting enables flexible adjustment of the housing position, simplifying maintenance and inspection. The clamp lever ensures secure fixation in the desired position. The use of zinc and structured coating ensures high mechanical stability and durability in industrial environments. The coupling is thus a reliable component for mounting enclosures in systems that prioritise flexibility and accessibility.

General
MaterialZinc
Surface protectionStructured lacquer
ColourRAL 7024
Rotation angle/tilt rangeapprox. 305°, lockable via clamp lever
Rotatable/tiltableJa


Product data sheet
Datasheet for Rittal 6501050, EAN: 4028177262911

Questions & answers

What is the delivery time of Rittal 6501050 Coupling CP 40, steel, for mounting arm connection 90x71 mm?

The article Rittal 6501050 Coupling CP 40, steel, for mounting arm connection 90x71 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 6501050 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 6501050 Coupling CP 40, steel, for mounting arm connection 90x71 mm always at the best possible price. We can give you a discount of 2% on Rittal 6501050 Coupling CP 40, steel, for mounting arm connection 90x71 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
