Rittal 5302027 Equipotential bonding set for VX IT
|
25,97 EUR |
|
|
( 30,90 EUR incl. VAT ) ≈ £21.74 | ≈ $28.54 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910601 |
| Mfg Part No: | 5302027 |
| UPC/EAN: | 4028177955332 |
| Weight: | 0.265 kg |
| Type: | DK 5302027 |
Product information for Rittal 5302027:
Applications
The equipotential bonding set is used in industrial and technical installations where a continuous earthing circuit is required. It is specifically intended for enclosures of the VX IT series, which are installed in environments with increased requirements for electrical safety and functionality. The application typically takes place during the assembly and commissioning of enclosures, to bring all metallic components, such as doors, side panels, and installed units, to a common potential.
Functions and Equipment in Detail

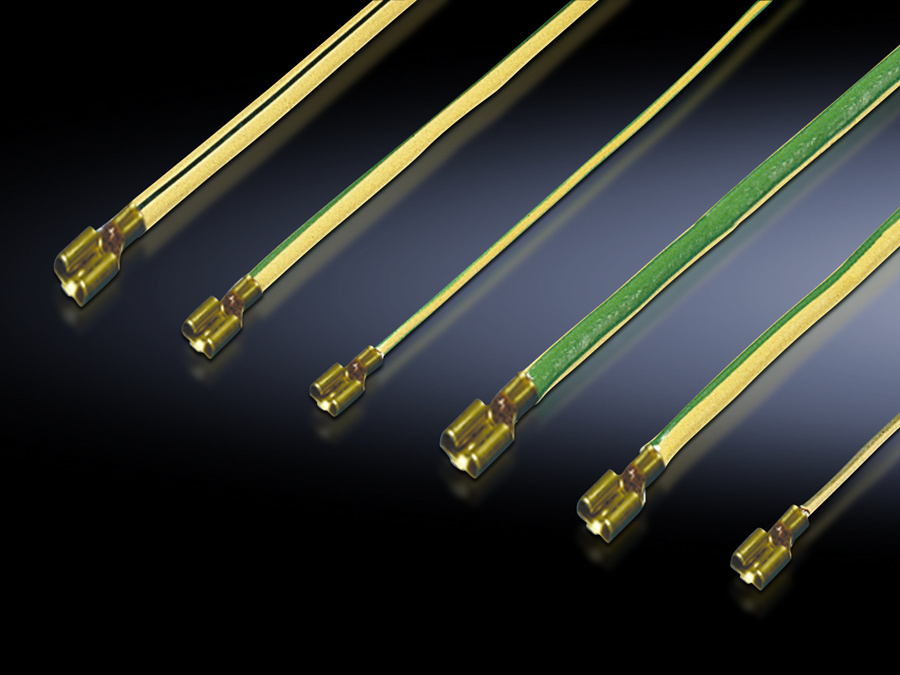

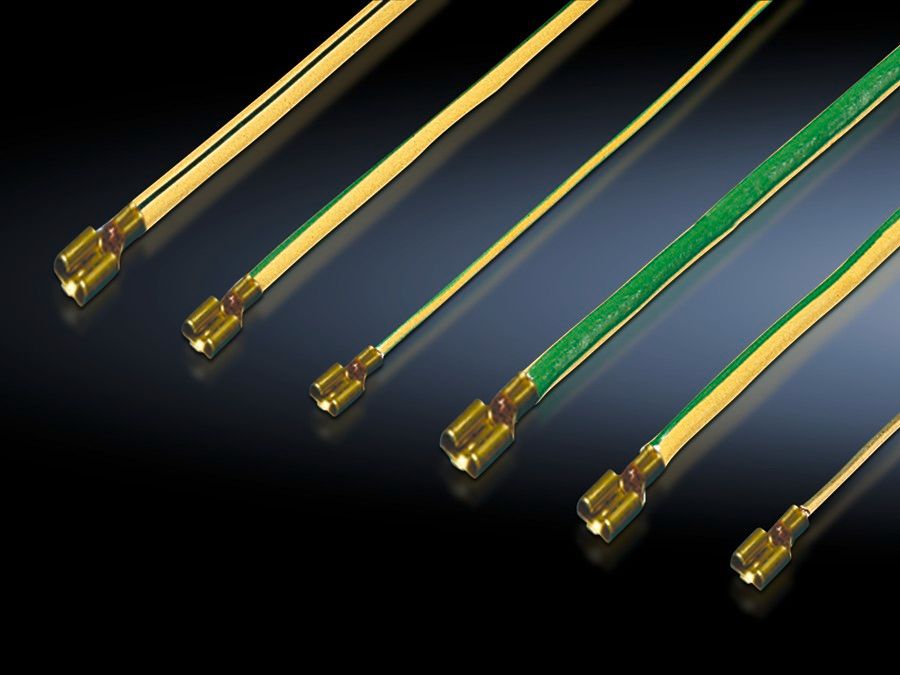

The set includes a central earthing point mounted on the enclosure frame, as well as seven earthing straps with a cross-section of 4 mm². The earthing straps conform to UL Style 1015 AWG 12 and are specifically designed for connecting doors and optional side panels. The central earthing point features a 0.3 m long earthing cable, enabling easy connection of the enclosure to the existing earthing or equipotential bonding network. The earthing straps ensure that all metallic flat parts within the enclosure are electrically interconnected, creating a uniform potential.
Technology Explained Simply
The functionality is based on contacting all flat parts of the enclosure with the enclosure frame, which serves as the central earthing point. This establishes an electrical connection between all metallic components. Additionally, the connection of all installed components to the same potential is ensured, either through contacting mounting or using the supplied earthing straps. The copper earthing straps with a 4 mm² cross-section ensure sufficient fault current dissipation and support functional earthing in accordance with DIN EN 50 310. The use of UL Style 1015 AWG 12 ensures standardized quality and reliability of the conductors.
Compatibility and Accessories
The equipotential bonding set is specifically designed for enclosures of the VX IT series. It is compatible with the standard configurations of this enclosure series and can be directly integrated into the designated mounting points during assembly. As a suitable accessory, the DK extension set for earthing for TS IT is offered, which enables an extension of earthing functions. The combination of both sets can be beneficial in more complex installation configurations to achieve a comprehensive earthing solution.
Installation and Mounting
Installation involves securing the central earthing point to the enclosure frame using the supplied mounting materials. The seven earthing straps are then attached to doors and optional side panels to ensure electrical connectivity. The earthing cable from the central point is connected to the existing earthing network, integrating the enclosure into the overall earthing system. The installation requires no special tools beyond standard screwdrivers or wrenches for fastening.
Operational Advantages
Using the equipotential bonding set achieves a homogeneous potential throughout the entire enclosure, minimizing the risk of sparking, electrostatic discharges, or unwanted voltage differences. Functional earthing in accordance with DIN EN 50 310 ensures that electrical systems operate correctly and the safety of the installation is guaranteed. The clear structure of the set, with a central earthing point and pre-fabricated earthing straps, reduces installation time and minimizes the risk of errors during assembly. The use of standardized components (UL Style 1015 AWG 12) ensures high reliability and maintainability of the system.
Scope of Delivery
The set includes 7 earthing straps (4 mm², UL Style 1015 AWG 12) for doors and optional side panels, one central earthing point, and the required mounting materials. The components are designed for direct installation in VX IT enclosures and enable quick and secure installation.
| General | |
| Applications | For creating a continuous, central equipotential bonding under all installed components or to ensure an existing functional earthing in accordance with DIN EN 50 310. |
| Function principle | Connection of all flat parts to the housing frame as central grounding point, in conjunction with connection of all installed components to the same potential, via contacting mounting or by separate grounding strap |
| Scope of delivery | 7 grounding straps (4 mm²), UL Style 1015 AWG 12, for doors and optional side panels, central grounding point, including fastening material |
| Note | If a risk assessment based on the end application has been carried out by a qualified electrician and no extended risk potential has been identified, no measures for protective earthing are required |
