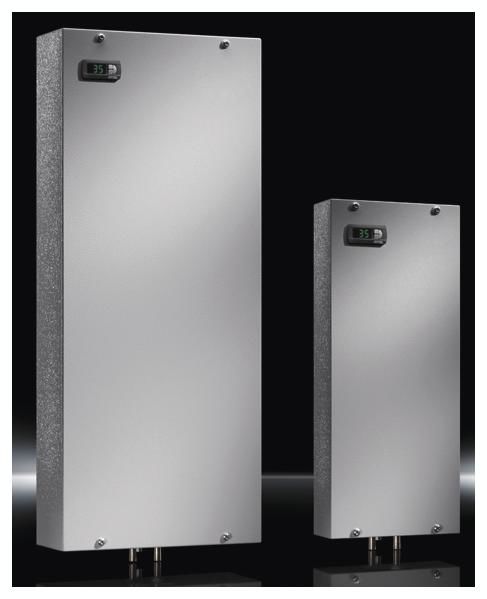

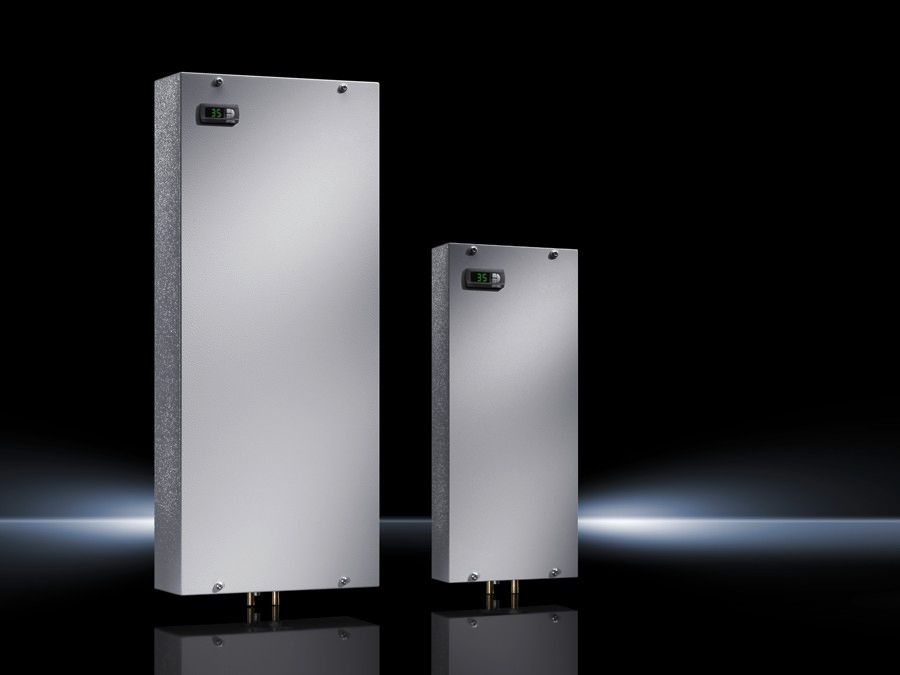

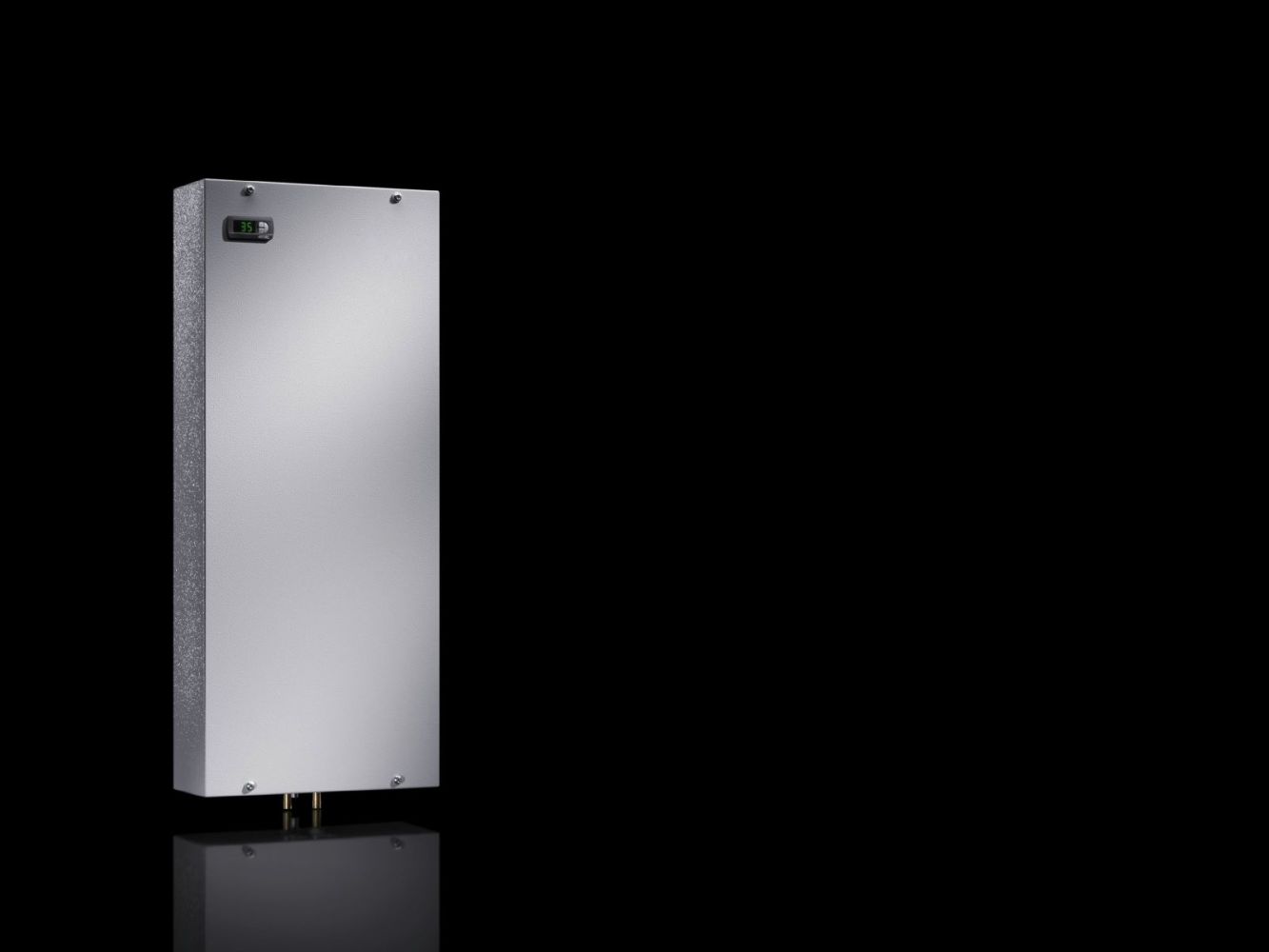

Rittal 3375500 SK Air/water heat exchanger, Wall-mounted, 5 kW, 230 V, 1~, 50/60 Hz, WHD: 450x1400x220 mm, e-Comfort controller
|
1.715,06 EUR 1.786,02 EUR |
|
|
( 2.040,92 EUR incl. VAT ) ≈ £1,471.52 | ≈ $1,987.75 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 710994 |
|---|---|
| Mfg Part No: | 3375500 |
| UPC/EAN: | 4028177495722 |
| Weight: | 39 kg |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3375500:
Design: Copper/brass (Cu/CuZn)
Colour: RAL 7035
Protection category IP to IEC 60 529: IP 55
Supply includes: Fully wired ready for connection (plug-in terminal strip)
Drilling template
Sealing and assembly parts
Note: Integral non-return valve for version with e-Comfort controller
Packs of: 1 pc(s).
EAN: 4028177495722
Customs tariff number: 84158300
eCl@ss 5.1: 27180712
eCl@ss 7.0: 27180712
ETIM 6.0: EC002515
Total cooling output: L 35 W 10 at 400 l/h: 5 kW
Air throughput (unimpeded air flow): Internal circuit at 50 Hz: 1490 m³/h
Internal circuit at 60 Hz: 1660 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/50 Hz
Dimensions: Width: 450 mm
Height: 1400 mm
Depth: 220 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +1°C...+70°C
Setting range: +20°C...+55°C
Water inlet: +1°C...+30°C
Refrigerant/cooling medium: Cooling medium: Water (see Internet for specifications)
Duty cycle: 100 %
Power consumption Pel: At 50 Hz: 178 W
At 60 Hz: 232 W
Rated current (max.): At 50 Hz: 1.45 A
At 60 Hz: 1.45 A
Pre-fuse: Miniature circuit-breaker/fuse: 4 A
Permissible operating pressure (p. max.): 1 bar - 10 bar
Water connections: ½" connector sleeve
G ?" external thread
Weight/pack: 39 kg
Type: SK 3375500
Colour: RAL 7035
Protection category IP to IEC 60 529: IP 55
Supply includes: Fully wired ready for connection (plug-in terminal strip)
Drilling template
Sealing and assembly parts
Note: Integral non-return valve for version with e-Comfort controller
Packs of: 1 pc(s).
EAN: 4028177495722
Customs tariff number: 84158300
eCl@ss 5.1: 27180712
eCl@ss 7.0: 27180712
ETIM 6.0: EC002515
Total cooling output: L 35 W 10 at 400 l/h: 5 kW
Air throughput (unimpeded air flow): Internal circuit at 50 Hz: 1490 m³/h
Internal circuit at 60 Hz: 1660 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/50 Hz
Dimensions: Width: 450 mm
Height: 1400 mm
Depth: 220 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +1°C...+70°C
Setting range: +20°C...+55°C
Water inlet: +1°C...+30°C
Refrigerant/cooling medium: Cooling medium: Water (see Internet for specifications)
Duty cycle: 100 %
Power consumption Pel: At 50 Hz: 178 W
At 60 Hz: 232 W
Rated current (max.): At 50 Hz: 1.45 A
At 60 Hz: 1.45 A
Pre-fuse: Miniature circuit-breaker/fuse: 4 A
Permissible operating pressure (p. max.): 1 bar - 10 bar
Water connections: ½" connector sleeve
G ?" external thread
Weight/pack: 39 kg
Type: SK 3375500
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
Questions & answers
What is the delivery time of Rittal 3375500 SK Air/water heat exchanger, Wall-mounted, 5 kW, 230 V, 1~, 50/60 Hz, WHD: 450x1400x220 mm, e-Comfort controller?
The article Rittal 3375500 SK Air/water heat exchanger, Wall-mounted, 5 kW, 230 V, 1~, 50/60 Hz, WHD: 450x1400x220 mm, e-Comfort controller is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3375500 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3375500 SK Air/water heat exchanger, Wall-mounted, 5 kW, 230 V, 1~, 50/60 Hz, WHD: 450x1400x220 mm, e-Comfort controller always at the best possible price. We can give you a discount of 2% on Rittal 3375500 SK Air/water heat exchanger, Wall-mounted, 5 kW, 230 V, 1~, 50/60 Hz, WHD: 450x1400x220 mm, e-Comfort controller if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
