Rittal 3201990 SK connection set for air/water heat exchanger

Your rating:
Average rating
product review for Rittal 3201990 SK connection set for air/water heat exchanger
( 4.4 / 5 ) 28 ratings
Rittal 3201990
This image may differ from the desired article.
Rittal 3201990Rittal 3201990Rittal 3201990
228,85 EUR 230,46 EUR
( 272,33 EUR incl. VAT )
≈ £191.55  |  ≈ $251.51
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3201990 SK connection set for air/water heat exchanger
Datasheet:file_download Download
Lieske Part No.:1131135
Mfg Part No: 3201990
UPC/EAN: 4028177709270
Weight:4.58 kg
Type:SK 3201990

Product information for Rittal 3201990:

The Rittal SK 3201990 is a connection set for air/water heat exchangers, specifically developed for the professional installation of water connections and volume flow regulation. It serves as a complete solution for the safe and efficient integration of heat exchangers into enclosure climate control systems. The set is designed for use in industrial plants where reliable cooling of electronic components is required, and enables precise control of water flow. The pressure hoses are individually cuttable to adapt them to specific installation conditions.

Applications
This connection set is intended for use in enclosure climate control systems, particularly in combination with air/water heat exchangers. It is used in industrial environments where continuous cooling of electronic components is necessary, for example in automation technology, machine building, or process control systems. The set is used in plants where cooling is performed via a water circuit system, with heat from the enclosure being transferred to the coolant via the heat exchanger.

Functions and Equipment in Detail

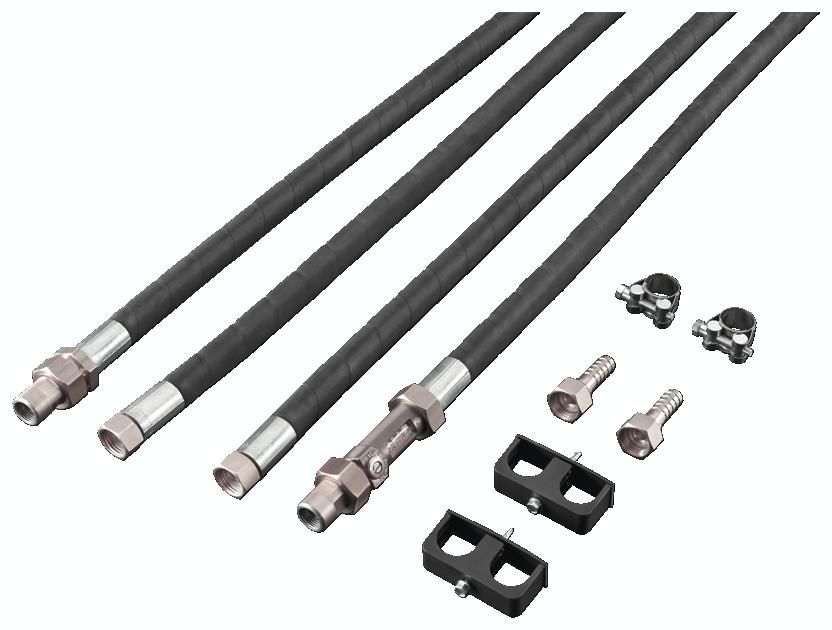

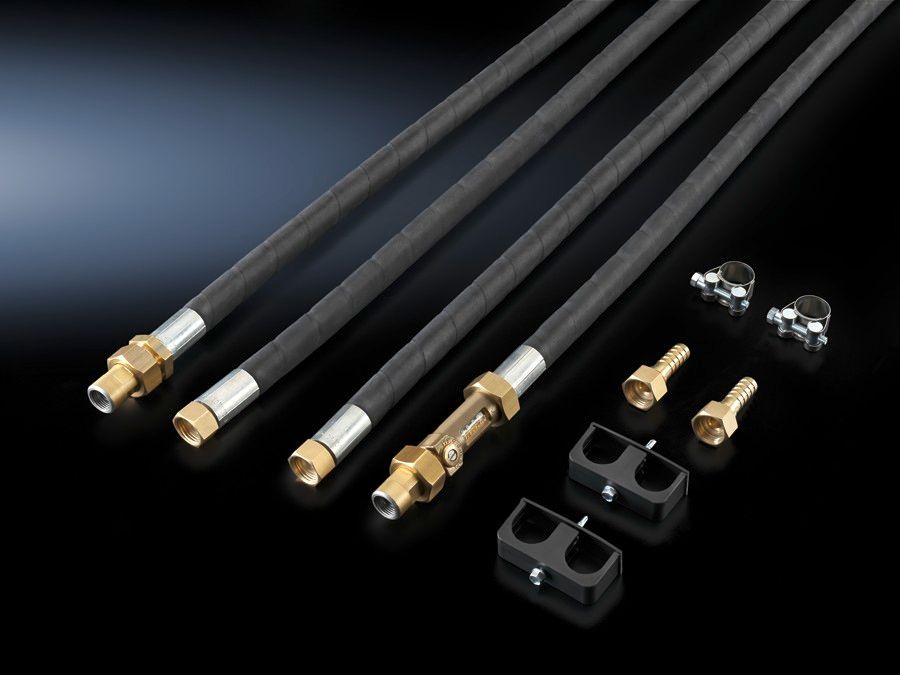

The set includes a hose for the water return and a hose for the water supply, with the supply hose equipped with an adjustment valve. This valve enables volume flow regulation in the range of 3 to 12 litres per minute, ensuring application-specific adjustment of cooling performance. The water-carrying parts are made of EPDM and brass, materials suitable for their chemical resistance and mechanical strength in water-carrying systems. Mounting hardware is also included to ensure secure installation of the hoses.

Technology Explained Simply
The water connections of the set are equipped with a G ⅜" internal thread, enabling universal connection to corresponding thread connections in industrial applications. The hoses have a length of 3,600 mm and can be individually shortened according to requirements to adapt the installation to the specific enclosure configuration. The maximum permissible operating pressure is 10 bar, ensuring suitability for standard industrial cooling circuits. The EPDM hoses are flexible and resistant to mechanical stress and chemical influences, while brass ensures sealing and stability of the connections.

Compatibility and Accessories
The connection set is specifically designed for use with air/water heat exchangers with article numbers 3209.XX0, 3210.XX0, 3216.480, 3363.XX0, 3364.XX0, 3373.XX0, 3374.XX0, and 3375.XX0. It is therefore directly compatible with a range of Rittal heat exchangers used in various enclosure climate control systems. Combining it with these heat exchangers enables efficient heat dissipation and optimized cooling performance in industrial plants.

Installation and Mounting
Installation is performed by connecting the hoses to the corresponding connections on the heat exchanger and the cooling water system. The individual cuttability of the hoses allows flexible adaptation to spatial conditions. The included mounting hardware facilitates secure installation and prevents unwanted movement or displacement of the hoses during operation. Volume flow regulation is achieved via the integrated adjustment valve on the supply hose, allowing cooling performance to be adjusted to specific requirements.

Operational Advantages
The connection set provides a reliable and maintenance-friendly solution for water connection installation in enclosure climate control systems. Precise volume flow regulation enables optimal cooling performance and prevents over- or underloading of the cooling circuit. The materials EPDM and brass ensure long service life and high operational safety, even under industrial conditions. The individual cuttability of the hoses reduces installation time and increases flexibility during installation.

General
MaterialWater-carrying parts: EPDM/brass
Scope of deliveryHose for return water, hose for supply water including balancing valve for flow rate regulation (adjustment range 3 to 12 l/min), mounting material
Length3.600 mm
Water connectionsG ⅜" IG
Suitable for part no.3209.XX0, 3210.XX0, 3216.480, 3363.XX0, 3364.XX0, 3373.XX0, 3374.XX0, 3375.XX0
Permissible operating pressure (p max.)1: 10 bar


Product data sheet
Datasheet for Rittal 3201990, EAN: 4028177709270
