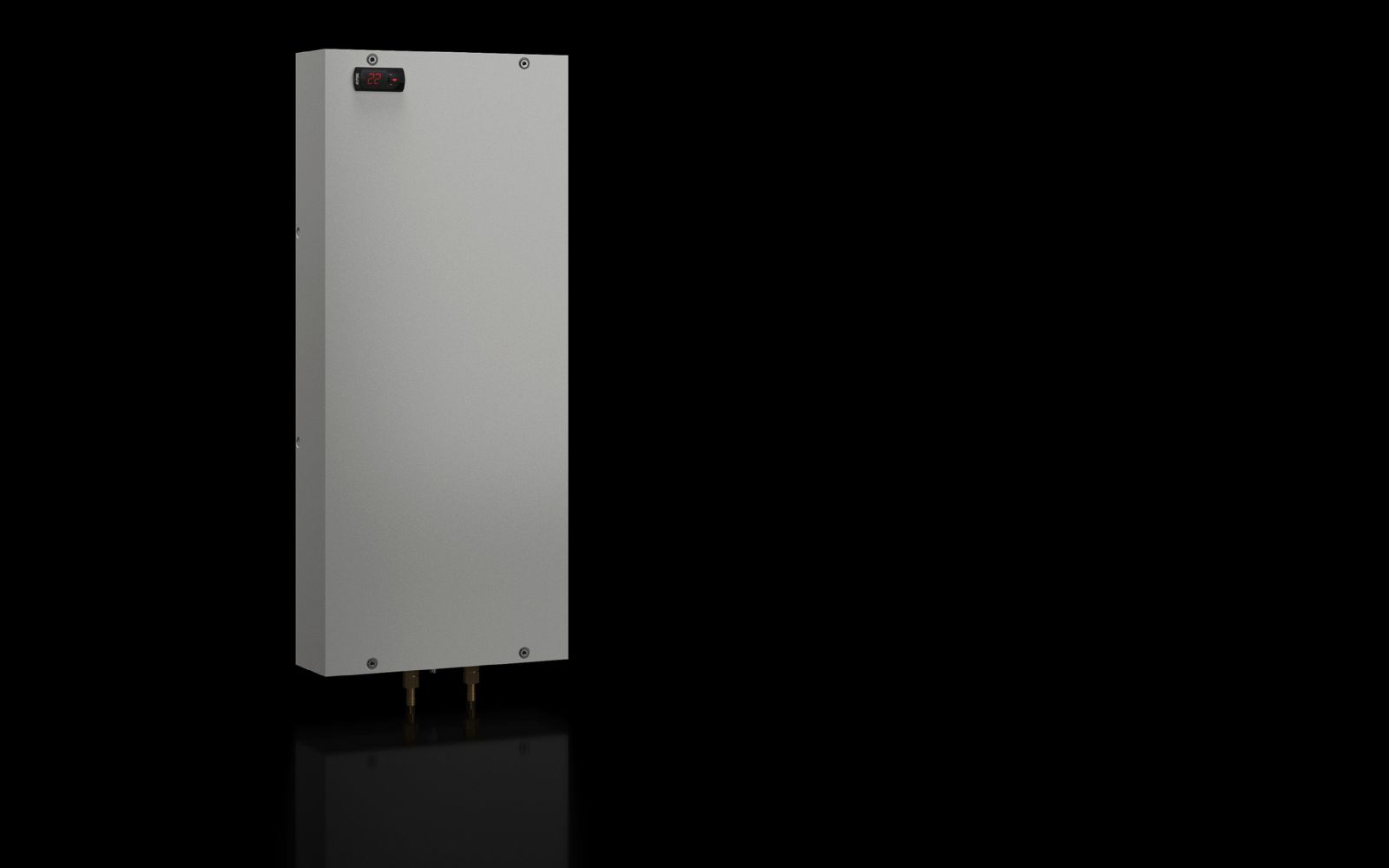

Rittal 3373140 RTT air/water heat exchanger wall-mounted, 2.0 kW, 400
|
923,80 EUR |
|
|
( 1.099,32 EUR incl. VAT ) ≈ £773.22 | ≈ $1,015.26 plus delivery charges: 235,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1311643 |
| Mfg Part No: | 3373140 |
| UPC/EAN: | 4028177495968 |
| Weight: | 21.469 kg |
| Type: | SK 3373140 |
Product information for Rittal 3373140:
Product description
Version: Water-carrying parts copper/brass (Cu/CuZn)
Description: For use in harsh environments and Temperature ranges up to +70 °C. Convenient mounting options and flexible water connection options. Extension or full installation possible.
Color: RAL 7035
Protection class IP according to IEC 60 529: IP 55
Scope of delivery: Wired ready for connection
Drilling template
Sealing and fastening material
Note: Integrated check valve for version with e-Comfort controller
Total cooling capacity: L 35 W 10 at 400 l/h: 2 kW
Air output (free-blowing) : Internal circuit at 50 Hz: 880 m³/h
Internal circuit at 60 Hz: 950 m³/h
Rated operating voltage: 400 V, 2~, 50 Hz/60 Hz
Dimensions: Width: 400 mm
Height: 950 mm
Depth: 145 mm
Temperature control: Basic controller ( Factory setting +35 °C)
Temperature range: Operation (ambient): +1 °C...+70 °C
Setting range: +20 °C...+55 °C
Water flow: +1 °C...+30 ° C
Refrigerant/cooling medium: Cooling medium: Water (see internet for specification)
Duty cycle: 100%
Rated power Pel: At 50 Hz: 110 W
At 60 Hz: 140 W
Rated current max.: At 50 Hz: 0.28 A
At 60 Hz: 0. 35 A
back-up fuse: transformer circuit breaker: 3.5 A...5 A
Permissible operating pressure (p max.): 1 bar - 10 bar
Water connections: ½" hose nozzle
G ?" AG
Packaging unit: 1 piece
Weight/PU: 23 kg
EAN: 4028177495968
Customs tariff number: 84158300
ETIM 6.0: EC002515
ETIM 5.0: EC002515
eCl@ss 8.0/8.1: 27180712 eCl@ss 7.0/7.1: 27180712
eCl@
ss 6.0/6.1: 271 80712
eCl@ss 5.1/5.1.4: 27180712
| General | |
| Model | Wall mounting, water-carrying parts copper/brass (Cu/CuZn) |
| Colour | RAL 7035 |
| Scope of delivery | Ready-wired, drilling template, sealing and mounting materials |
| Total cooling capacity | L 35 W 10 at 400 l/h: 2 kW |
| Rated operating voltage | 400 V, 2~, 50 Hz/60 Hz |
| Rated power Pel | At 50 Hz: 110 W, At 60 Hz: 140 W |
| Rated current max. | At 50 Hz: 0.28 A, At 60 Hz: 0.35 A |
| Permissible operating pressure (p max.) | 1: 10 bar |
| Working time | 100 % |
| Cooling medium | Water (specification see internet) |
| Water supply temperature | 1 °C...30 °C |
| Water connections | ½" hose nozzle, G ⅜" AG |
| Conduit volume | 0,52 l |
| Temperature control | Base controller (factory setting +35 °C) |
| Operating temperature range | 1 °C...70 °C |
| Note | Integrated check valve when equipped with e-Comfort controller |
| Width | 400 mm |
| Height | 950 mm |
| Depth | 145 mm |
| Adjustment range | 20 °C...55 °C |
| Fuse | Transformer protection switch: 3.5...5 A |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | UL Type 1, UL Type 3R, UL Type 12 |
