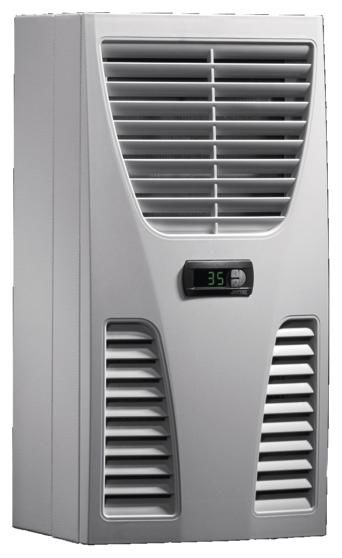

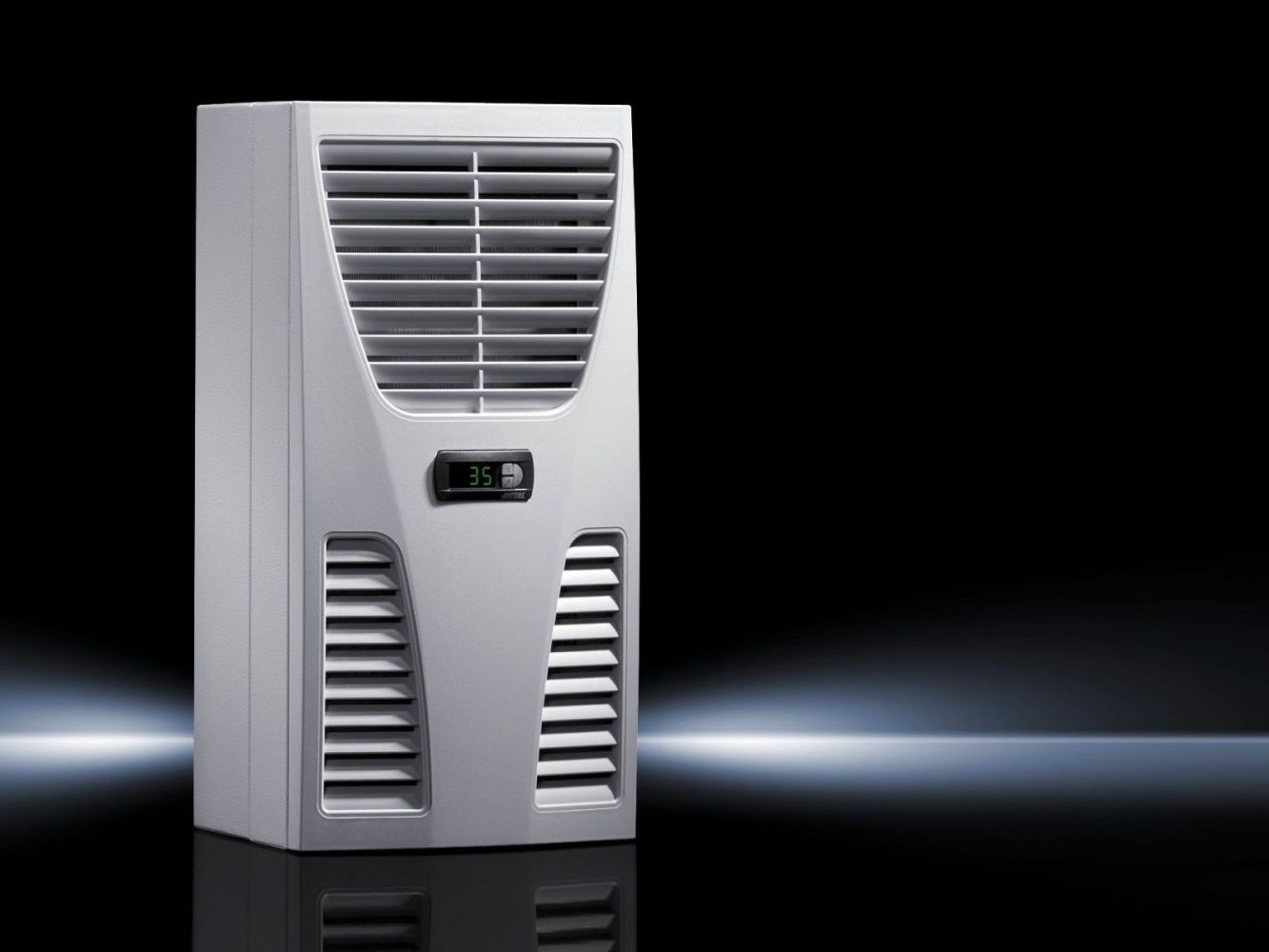

Rittal 3361510 SK Blue e cooling unit, Wall-mounted, 0.89 kW, 115 V, 1~, 60 Hz, Sheet steel, WHD: 280x550x280 mm
|
1.477,06 EUR 1.538,17 EUR |
|
|
( 1.757,70 EUR incl. VAT ) ≈ £1,267.32 | ≈ $1,711.91 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 690632 |
|---|---|
| Mfg Part No: | 3361510 |
| UPC/EAN: | 4028177429543 |
| Weight: | 0.123 kg |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3361510:
Material: Sheet steel
Colour: RAL 7035
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Nano-coated condenser
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177429543
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 60 Hz: 0.89 kW
L 35 L 50 at 60 Hz: 0.67 kW
Air throughput (unimpeded air flow): External circuit: 625 m³/h
Internal circuit: 230 m³/h
Rated operating voltage: 115 V, 1~, 60 Hz
Note for frequency: Tu max. = 53°C/60 Hz
Dimensions: Width: 280 mm
Height: 550 mm
Depth: 280 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+55°C
Setting range: +20°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 260 g
Power consumption Pel: L 35 L 35 at 60 Hz: 0.56 kW
L 35 L 50 at 60 Hz: 0.66 kW
Rated current (max.): At 60 Hz: 5.3 A
Start-up current max.: At 60 Hz: 12 A
Pre-fuse: Miniature circuit-breaker/fuse: 10 A
Permissible operating pressure (p. max.): 28 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 1.59
Weight/pack: 22 kg
Type: SK 3361510
Colour: RAL 7035
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Nano-coated condenser
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177429543
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 60 Hz: 0.89 kW
L 35 L 50 at 60 Hz: 0.67 kW
Air throughput (unimpeded air flow): External circuit: 625 m³/h
Internal circuit: 230 m³/h
Rated operating voltage: 115 V, 1~, 60 Hz
Note for frequency: Tu max. = 53°C/60 Hz
Dimensions: Width: 280 mm
Height: 550 mm
Depth: 280 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+55°C
Setting range: +20°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 260 g
Power consumption Pel: L 35 L 35 at 60 Hz: 0.56 kW
L 35 L 50 at 60 Hz: 0.66 kW
Rated current (max.): At 60 Hz: 5.3 A
Start-up current max.: At 60 Hz: 12 A
Pre-fuse: Miniature circuit-breaker/fuse: 10 A
Permissible operating pressure (p. max.): 28 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 1.59
Weight/pack: 22 kg
Type: SK 3361510
