Rittal 3328504 RTT Blue e cooling unit wall-mounted NEMA 4X, 2000 W, Com

Your rating:
Average rating
product review for Rittal 3328504 RTT Blue e cooling unit wall-mounted NEMA 4X, 2000 W, Com
( 0 / 5 ) 0 ratings

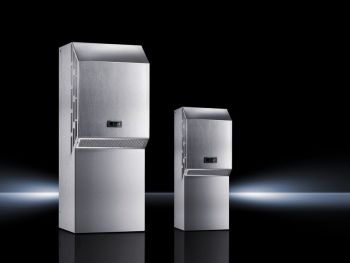

Rittal 3328504
This image may differ from the desired article.
Rittal 3328504Rittal 3328504Rittal 3328504Rittal 3328504Rittal 3328504Rittal 3328504
4.445,53 EUR 4.629,45 EUR
( 5.290,18 EUR incl. VAT )
≈ £3,720.91  |  ≈ $4,885.64
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3328504 RTT Blue e cooling unit wall-mounted NEMA 4X, 2000 W, Com
Datasheet:file_download Download
Lieske Part No.:576888
Mfg Part No: 3328504
UPC/EAN: 4028177384453
Weight:95.5 kg
Type:SK 3328504

Product information for Rittal 3328504:

The Rittal SK 3328504 is a wall-mounted cooling unit of the Blue e series, specifically designed for climate control of enclosures and industrial housings. It features a total cooling capacity of up to 2.39 kW at 60 Hz and is designed for operating voltages of 230 V, 1~, 50/60 Hz. The unit is manufactured from stainless steel 1.4404 (AISI 316L), ensuring high corrosion resistance and long service life in demanding environments. The color is RAL 7001, a neutral gray tone that integrates well into industrial installations. Dimensions are 405 mm (width) × 1,650 mm (height) × 388 mm (depth), making it suitable for standard enclosure sizes.

Applications
This cooling unit is designed for use in industrial environments where constant temperature inside the enclosure is required to ensure the proper function of electronic components. It is particularly suitable for applications in manufacturing, energy supply, or automation technology, where high ambient temperatures or significant heat generation within the enclosure occur. The NEMA 4X protection rating provides high protection against dust, splashing water, and light spraying, making it suitable for outdoor use or humid indoor environments. The IP 34 rating for the external circuit and IP 34 for the internal circuit comply with EN 60 529 standards and ensure reliable operation under various environmental conditions.

Functions and Equipment in Detail
The unit features an integrated e-Comfort controller, factory-set to a temperature of +35 °C. The adjustable range is between 20 °C and 50 °C, allowing flexible adaptation to different operating conditions. The electric condensate evaporation system ensures that condensate generated during the cooling process evaporates directly within the unit, eliminating the need for drainage and simplifying installation. The condenser is coated with a hydrophobic RiNano coating, which improves heat transfer and reduces contamination. The connection terminal block is plug-in, enabling quick and secure electrical installation. The delivery includes a drilling template and mounting hardware to facilitate installation on the enclosure.

Technology Explained Simply
The cooling unit operates with refrigerant R-513A, which has a lower environmental impact than conventional refrigerants. The refrigerant charge is 0.9 kg, with a Global Warming Potential (GWP) of 631, equivalent to 0.57 t of CO₂. Cooling capacity is determined according to DIN EN 14511, with values varying by operating frequency: 2.1 kW at 50 Hz (L35 L35) and 2.39 kW at 60 Hz. Air performance is 980 m³/h for both external and internal circuits, ensuring efficient air circulation within the enclosure. Energy efficiency is described by the Energy Efficiency Ratio (EER), which is 2.44 at 50 Hz and 2.21 at 60 Hz. Rated power ranges from 0.86 kW (50 Hz, L35 L35) to 1.23 kW (60 Hz, L35 L50). Maximum operating pressure is 28 bar, and the fuse is rated for 16 A.

Compatibility and Accessories
The cooling unit is networkable via the IoT Interface, requiring the Blue e IoT adapter for cooling units with ≥500 W cooling capacity and e-Comfort controller. This enables monitoring and control of the unit via digital systems. Accessories include SK Master/Slave cables for SK-Bus systems, SK air deflector for SK 3328/3329, door position switches, and support rollers. These components support integration into existing enclosure systems and extend functionality.

Installation and Mounting
Mounting is done on the wall of the enclosure. The included drilling template facilitates precise positioning of mounting holes. Electrical connection is made via the plug-in terminal block, which is pre-wired at the factory. Installation requires a power supply of 230 V, 1~, 50/60 Hz. Maximum rated current is 5.8 A at 50 Hz and 6.8 A at 60 Hz, with starting current up to 20 A (50 Hz) or 22 A (60 Hz). The fuse should be rated accordingly at 16 A.

Operational Advantages
The unit offers high energy efficiency, leading to lower operating costs. The integrated electric condensate evaporation reduces maintenance effort, as no condensate drainage is required. The robust stainless steel construction and NEMA 4X protection rating ensure long service life even in harsh environments. Networkable control via the IoT Interface enables centralized monitoring and remote maintenance, increasing operational reliability. The operating temperature range is between 10 °C and 50 °C, making the unit suitable for a wide range of industrial applications. Storage temperature range is from -40 °C to 70 °C, allowing flexible storage options.

General
ModelWall surface mounted
MaterialStainless steel 1.4404 (AISI 316L)
ColourRAL 7001
Scope of deliveryCondenser with hydrophobic RiNano coating, pre-wired (pluggable terminal block), drilling template, mounting material, integrated electrical condensate evaporation
Total cooling capacity according to DIN EN 14511Cooling capacity L35 L35/50 Hz: 2.1 kW, cooling capacity L35 L35/60 Hz: 2.39 kW, cooling capacity L35 L50/50 Hz: 1.52 kW, cooling capacity L35 L50/60 Hz: 1.76 kW
Rated operating voltage230 V, 1~, 50 Hz/60 Hz
Rated current max.At 50 Hz: 5.8 A, at 60 Hz: 6.8 A
Inrush current (max.)At 50 Hz: 20 A, At 60 Hz: 22 A
Air performance (free blowing)Outer circuit: 980 m³/h, inner circuit: 980 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35Cooling capacity factor L35 L35 (EER) 50 Hz: 2.44, Cooling capacity factor L35 L35 (EER) 60 Hz: 2.21
Width405 mm
Height1.650 mm
Depth388 mm
Degree of protection IP according to EN 60 529External circuit IP 34, internal circuit IP 55
NEMA degree of protectionNEMA 4X
Refrigerant/cooling mediumRefrigerant: R-513A, Quantity: 0.9 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 0.57 t
Temperature controle-Comfortcontroller (factory setting +35 °C)
Operating temperature range10 °C...50 °C
Storage temperature range-40 °C...70 °C
Adjustment range20 °C...50 °C
Rated power PelRated power L35 L35/50 Hz: 0.86 kW, rated power L35 L35/60 Hz: 1.08 kW, rated power L35 L50/50 Hz: 1.02 kW, rated power L35 L50/60 Hz: 1.23 kW
Permissible operating pressure (p max.)28 bar
Fusecircuit breaker/fuse: 16 A


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 3328504, EAN: 4028177384453
