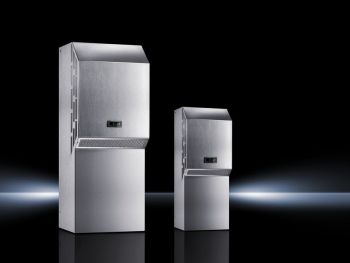

Rittal 3329504 RTT Blue e cooling unit wall-mounted NEMA 4X, 2500 W, Com
|
4.829,45 EUR 5.029,25 EUR |
|
|
( 5.747,05 EUR incl. VAT ) ≈ £4,042.25 | ≈ $5,307.57 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 576890 |
| Mfg Part No: | 3329504 |
| UPC/EAN: | 4028177389465 |
| Weight: | 95 kg |
| Type: | SK 3329504 |
Product information for Rittal 3329504:
Applications
This cooling unit is designed for use in industrial enclosures, control and distribution cabinets, and other closed housings where controlled internal temperature is required. It is particularly suitable for applications in manufacturing, automation technology, power supply, and process industries, where a constant operating temperature between 10 °C and 50 °C must be maintained. The protection class NEMA 4X also makes it suitable for outdoor use or in humid, dust-laden environments.
Functions and Equipment in Detail
The unit features an integrated e-Comfort controller, which is set by default to +35 °C and automatically regulates the cooling unit's operation. The adjustable temperature range is between 20 °C and 50 °C, allowing adaptation according to specific requirements. The electric condensate evaporation ensures that the generated condensate evaporates within the unit and does not need to be drained, simplifying installation and reducing maintenance. The condenser is coated with a hydrophobic RiNano coating, which reduces moisture and dirt accumulation and facilitates maintenance.
Technology Explained Simply
The cooling capacity is measured according to DIN EN 14511 and amounts to 2.55 kW at 50 Hz and 2.6 kW at 60 Hz, when the ambient temperature is 35 °C and the internal temperature is 35 °C (L35 L35). At an internal temperature of 50 °C (L50), the cooling capacity is 1.8 kW regardless of frequency. The air performance is 1,230 m³/h in both the external and internal circuits, ensuring efficient air circulation within the enclosure. The energy efficiency (EER) is 2.11 (50 Hz) and 1.7 (60 Hz) under L35 L35 operation, representing a comparatively efficient cooling performance. The unit uses refrigerant R-513A with a Global Warming Potential (GWP) of 631 and a quantity of 1.1 kg, equivalent to 0.69 t of CO₂. The maximum operating pressure is 28 bar, and the fuse is rated at 16 A.
Compatibility and Accessories
The cooling unit can be networked via the IoT interface using the Blue e IoT adapter, enabling integration into existing monitoring and control systems. Compatible accessories include, among others, support rollers for TS, SE, and PC, an air deflector for SK 3328/3329, door position switches, SK Master/Slave cables for the SK-bus system, and the Blue e IoT adapter for networking cooling units with a cooling capacity of 500 W or more equipped with an e-Comfort controller.
Mounting and Installation
The unit is designed for wall mounting and is installed on the inside of the enclosure. The connection terminal strip is plug-in and connected, allowing for quick and secure electrical connection.
Operational Advantages
Thanks to the integrated electric condensate evaporation, there is no need for an external condensate drain, simplifying installation and reducing maintenance. The high protection class NEMA 4X and the use of stainless steel 1.4404 ensure high robustness and long service life. The networkable functionality via the IoT interface enables remote monitoring and control, increasing operational safety. The cooling capacity of 2.55 kW at 50 Hz is sufficient to effectively cool larger enclosures, and the energy efficiency is competitive compared to other solutions on the market.
| General | |
| Model | Wall surface mounted |
| Material | Stainless steel 1.4404 (AISI 316L) |
| Colour | RAL 7001 |
| Scope of delivery | Condenser with hydrophobic RiNano coating, pre-wired (pluggable terminal block), drilling template, mounting material, integrated electrical condensate evaporation |
| Total cooling capacity according to DIN EN 14511 | Cooling capacity L35 L35/50 Hz: 2.55 kW, cooling capacity L35 L35/60 Hz: 2.6 kW, cooling capacity L35 L50/50 Hz: 1.8 kW, cooling capacity L35 L50/60 Hz: 1.8 kW |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Rated current max. | At 50 Hz: 7.9 A, At 60 Hz: 10.1 A |
| Inrush current (max.) | At 50 Hz: 25 A, At 60 Hz: 22 A |
| Air performance (free blowing) | Outer circuit: 1,230 m³/h, Inner circuit: 1,230 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Cooling capacity ratio L35 L35 (EER) 50 Hz: 2.11, cooling capacity ratio L35 L35 (EER) 60 Hz: 1.7 |
| Width | 405 mm |
| Height | 1.650 mm |
| Depth | 388 mm |
| Degree of protection IP according to EN 60 529 | External circuit IP 34, internal circuit IP 55 |
| NEMA degree of protection | NEMA 4X |
| Refrigerant/cooling medium | Refrigerant: R-513A, Quantity: 1.1 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 0.69 t |
| Temperature control | e-Comfortcontroller (factory setting +35 °C) |
| Operating temperature range | 10 °C...50 °C |
| Storage temperature range | -40 °C...70 °C |
| Adjustment range | 20 °C...50 °C |
| Rated power Pel | Rated power L35 L35/50 Hz: 1.21 kW, Rated power L35 L35/60 Hz: 1.53 kW, Rated power L35 L50/50 Hz: 1.41 kW, Rated power L35 L50/60 Hz: 1.8 kW |
| Permissible operating pressure (p max.) | 28 bar |
| Fuse | circuit breaker/fuse: 16 A |
