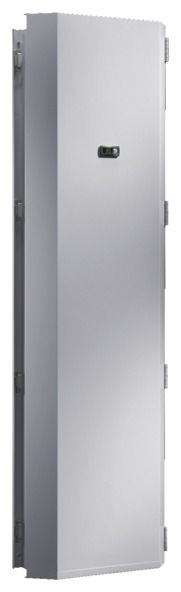

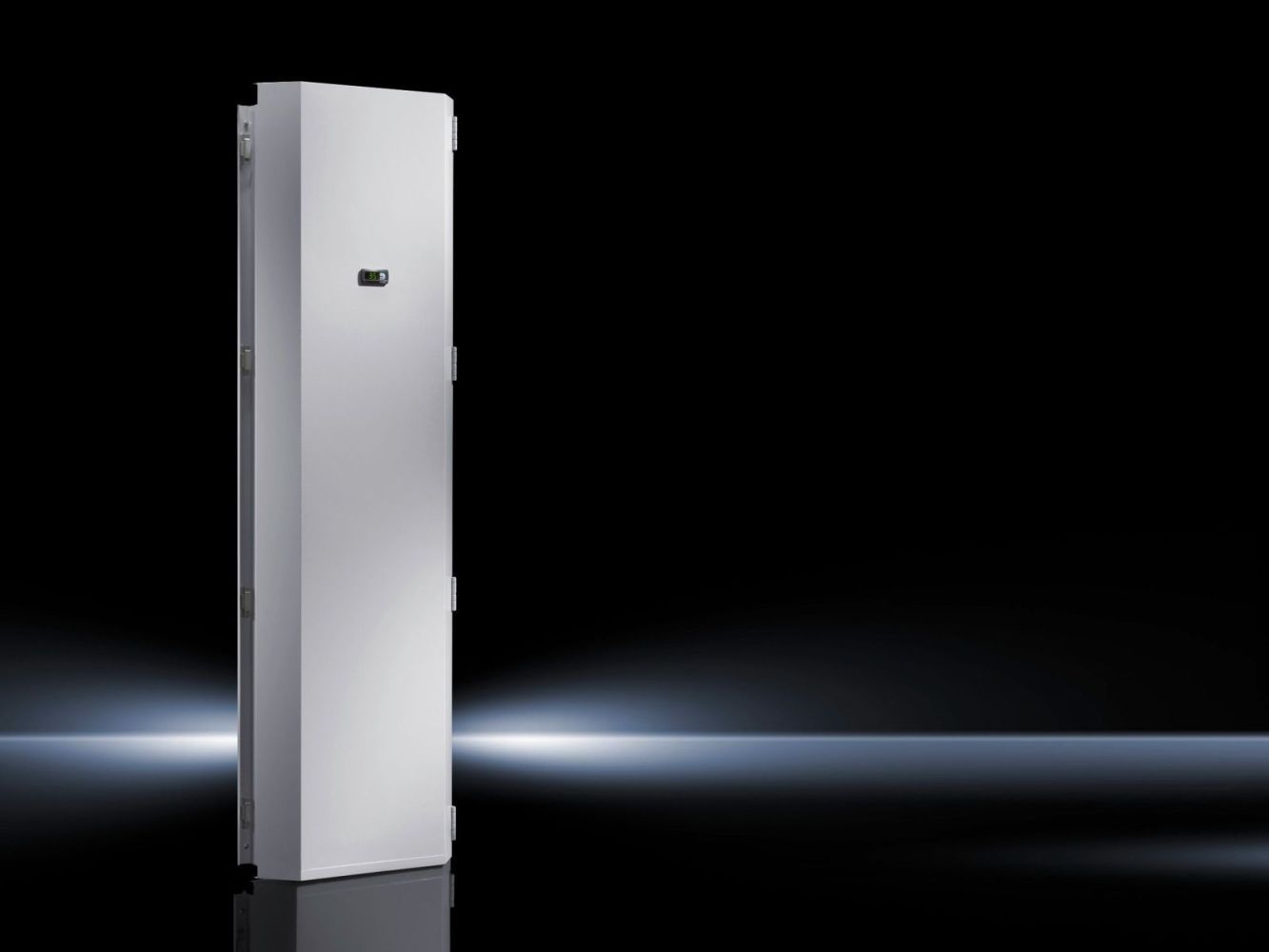

Rittal 3310740 SK Modular climate control concept, Blue e cooling module, 2.5/2.5 kW, 400/460 V, 1~, 50/60 Hz
|
-7% 2.392,42 EUR 2.559,89 EUR |
|||||||||||
|
( 2.846,98 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 347181 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3310740 | ||||||||||
| UPC/EAN: | 4028177559820 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 3310740:
Material: Sheet steel
Colour: RAL 7035
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34

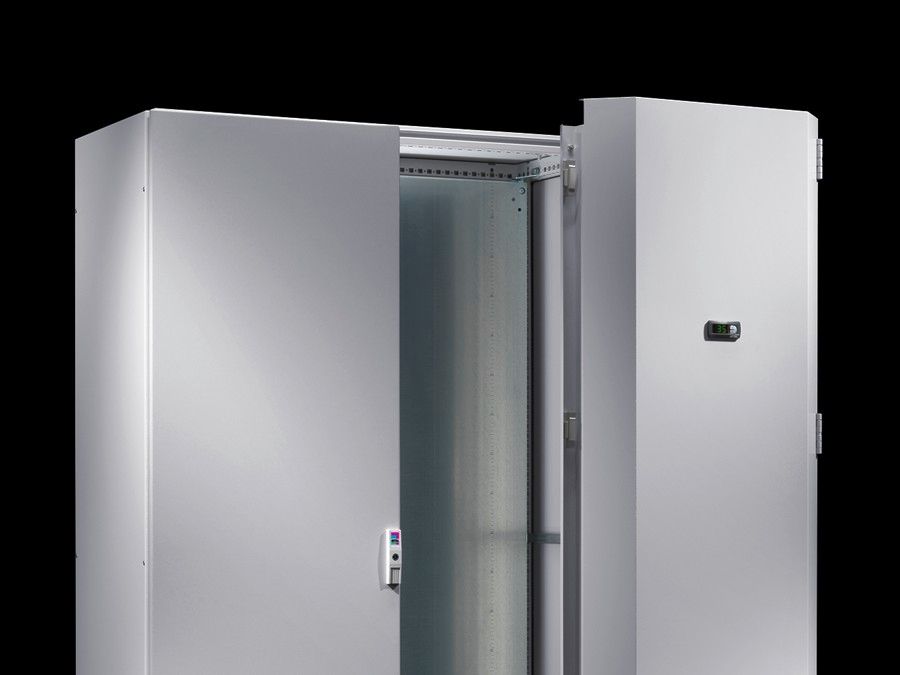

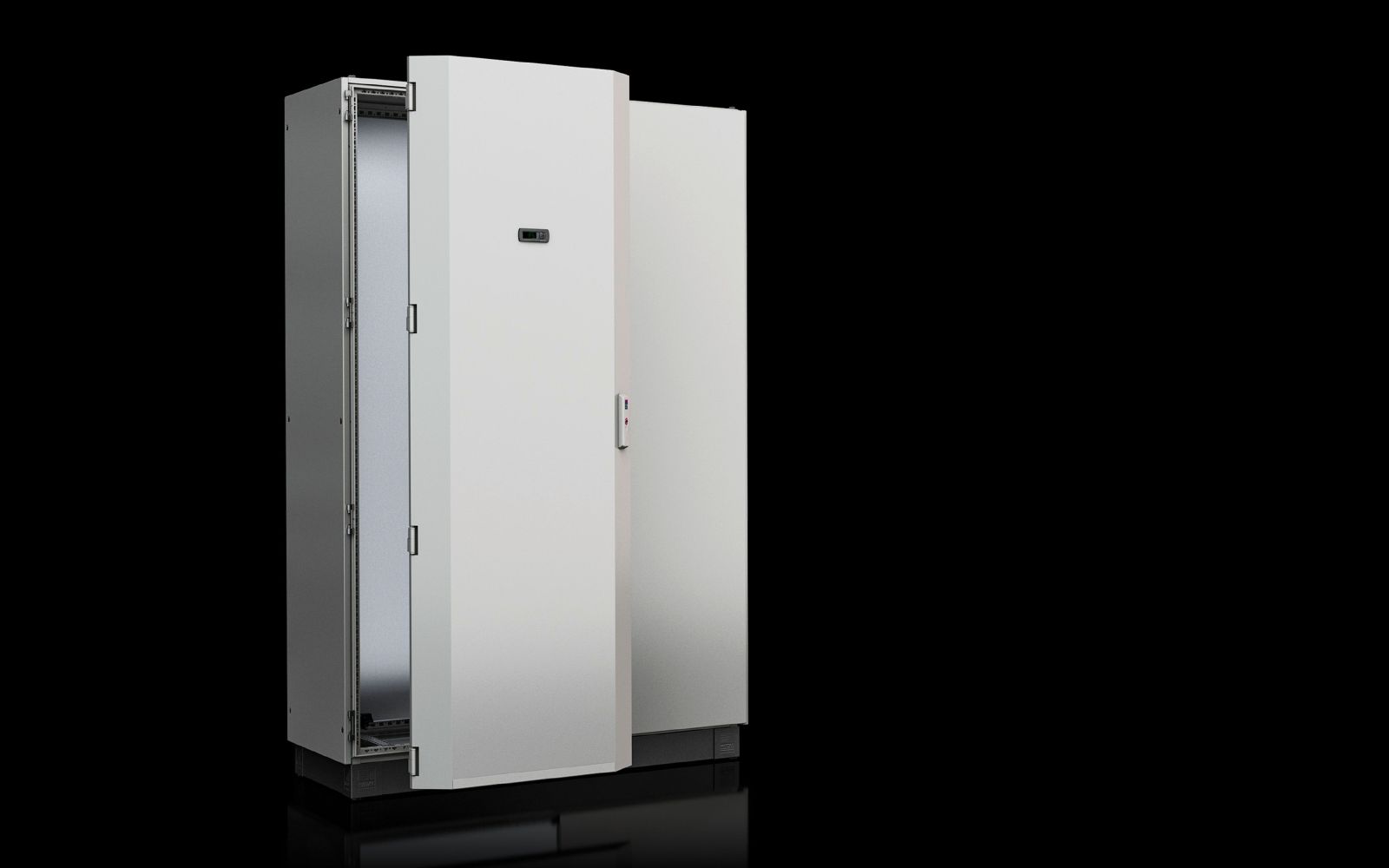

Supply includes: Cooling module prepared for installation in section door
Nano-coated condenser
Integral electric condensate evaporation
Note: A base/plinth with a height of 100 or 200 mm is required for efficient operation
Packs of: 1 pc(s).
EAN: 4028177559820
Customs tariff number: 84158200
eCl@ss 5.1: 27180702
eCl@ss 7.0: 27180702
ETIM 6.0: EC002510
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 2.5 kW
L 35 L 35 at 60 Hz: 2.5 kW
L 35 L 50 at 50 Hz: 1.76 kW
L 35 L 50 at 60 Hz: 1.8 kW
Air throughput (unimpeded air flow): External circuit: 1100 m³/h
Internal circuit: 1100 m³/h
Rated operating voltage: 400 V, 3~, 50 Hz
460 V, 3~, 60 Hz
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+55°C
Setting range: +20°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 1175 g
Power consumption Pel: L 35 L 35 at 50 Hz: 1.13 kW
L 35 L 35 at 60 Hz: 1.48 kW
L 35 L 50 at 50 Hz: 1.4 kW
L 35 L 50 at 60 Hz: 1.75 kW
Rated current (max.): At 50 Hz: 3.5 A
At 60 Hz: 3.7 A
Start-up current max.: At 50 Hz: 13 A
At 60 Hz: 14 A
Pre-fuse: Motor circuit-breaker: 6.3 A...10 A A
Permissible operating pressure (p. max.): 30 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 2.2
Weight/pack: 72 kg
Note: Includes section door weight
Type: SK 3310.740
