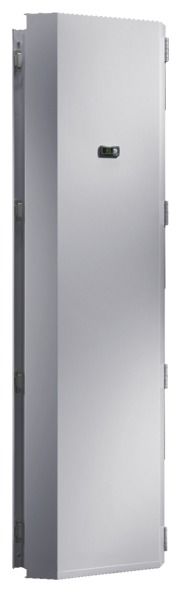

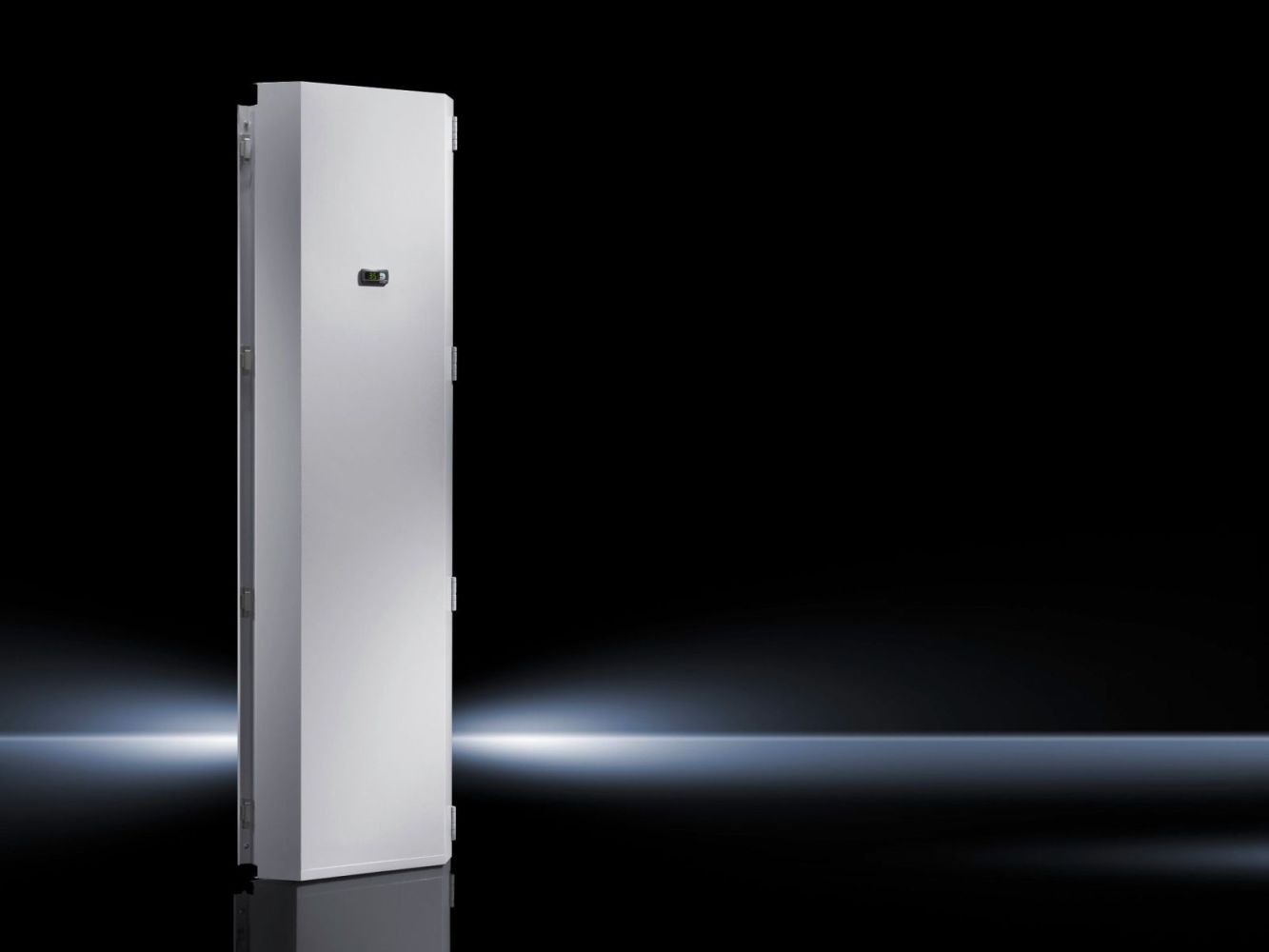

Rittal 3310700 SK Modular climate control concept, Blue e cooling module, 2.5/2.52 kW, 230 V, 1~, 50/60 Hz
|
2.032,00 EUR 2.116,07 EUR |
|
|
( 2.418,08 EUR incl. VAT ) ≈ £1,743.46 | ≈ $2,355.09 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 358203 |
|---|---|
| Mfg Part No: | 3310700 |
| UPC/EAN: | 4028177559554 |
| Weight: | 0.123 kg |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3310700:

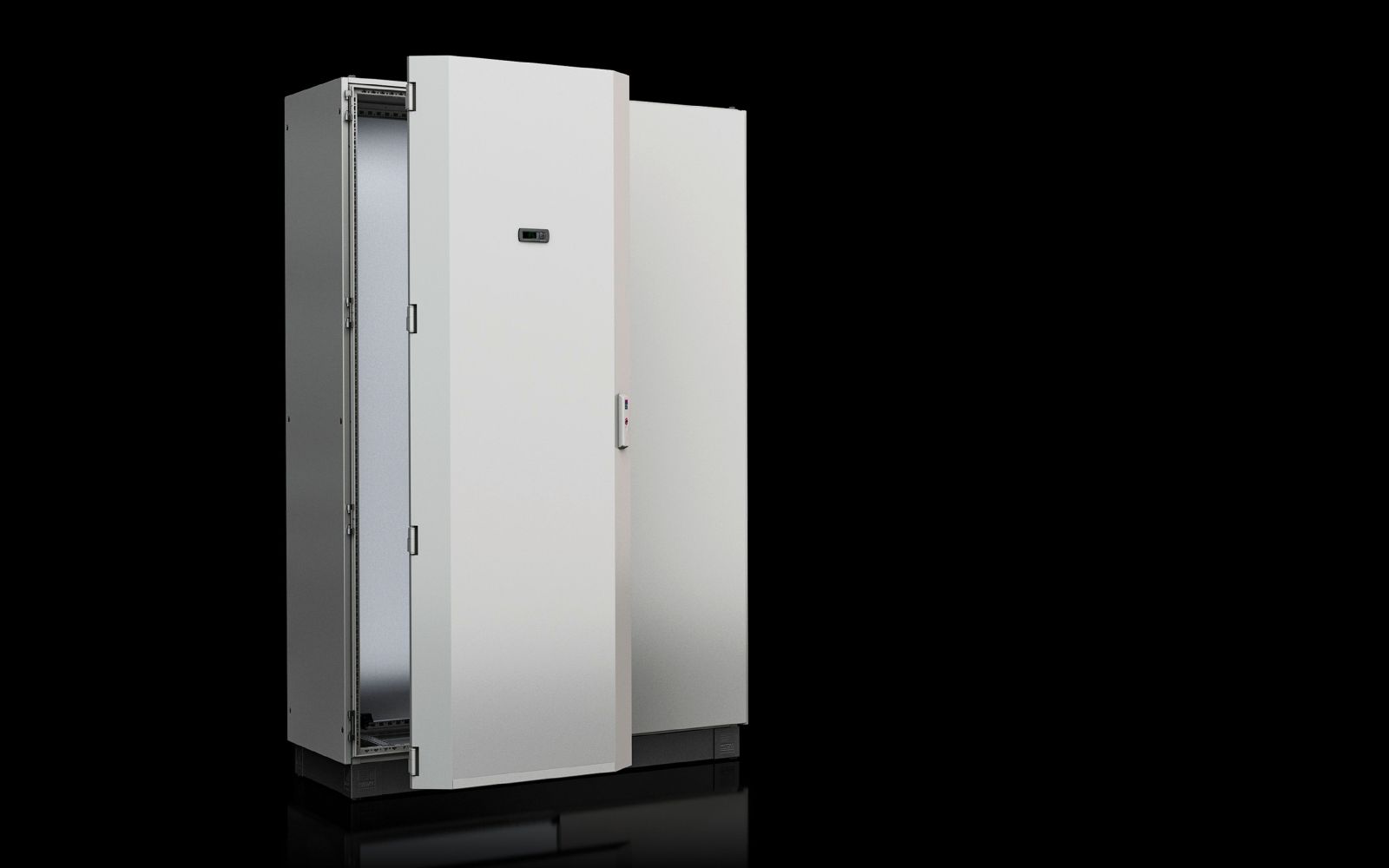

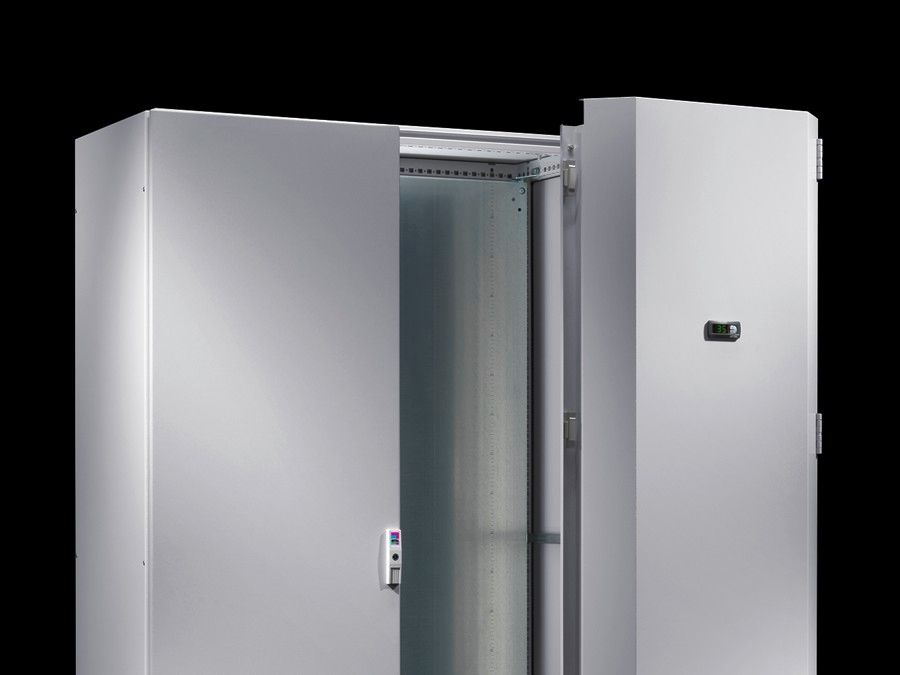

All cooling modules can be combined individually with every section door.
Material: Sheet steel
Colour: RAL 7035
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Cooling module prepared for installation in section door
Nano-coated condenser
Integral electric condensate evaporation
Note: A base/plinth with a height of 100 or 200 mm is required for efficient operation
Packs of: 1 pc(s).
EAN: 4028177559554
Customs tariff number: 84158200
eCl@ss 5.1: 27180702
eCl@ss 7.0: 27180702
ETIM 6.0: EC002510
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 2.5 kW
L 35 L 35 at 60 Hz: 2.52 kW
L 35 L 50 at 50 Hz: 1.62 kW
L 35 L 50 at 60 Hz: 1.76 kW
Air throughput (unimpeded air flow): External circuit: 1100 m³/h
Internal circuit: 1100 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+55°C
Setting range: +20°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 1175 g
Power consumption Pel: L 35 L 35 at 50 Hz: 1.31 kW
L 35 L 35 at 60 Hz: 1.52 kW
L 35 L 50 at 50 Hz: 1.48 kW
L 35 L 50 at 60 Hz: 1.85 kW
Rated current (max.): At 50 Hz: 7.6 A
At 60 Hz: 9.4 A
Start-up current max.: At 50 Hz: 22 A
At 60 Hz: 24 A
Pre-fuse: Miniature circuit-breaker/fuse: 16 A
Permissible operating pressure (p. max.): 30 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 1.9
Weight/pack: 73 kg
Note: Includes section door weight
Type: SK 3310700
Material: Sheet steel
Colour: RAL 7035
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Cooling module prepared for installation in section door
Nano-coated condenser
Integral electric condensate evaporation
Note: A base/plinth with a height of 100 or 200 mm is required for efficient operation
Packs of: 1 pc(s).
EAN: 4028177559554
Customs tariff number: 84158200
eCl@ss 5.1: 27180702
eCl@ss 7.0: 27180702
ETIM 6.0: EC002510
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 2.5 kW
L 35 L 35 at 60 Hz: 2.52 kW
L 35 L 50 at 50 Hz: 1.62 kW
L 35 L 50 at 60 Hz: 1.76 kW
Air throughput (unimpeded air flow): External circuit: 1100 m³/h
Internal circuit: 1100 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+55°C
Setting range: +20°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 1175 g
Power consumption Pel: L 35 L 35 at 50 Hz: 1.31 kW
L 35 L 35 at 60 Hz: 1.52 kW
L 35 L 50 at 50 Hz: 1.48 kW
L 35 L 50 at 60 Hz: 1.85 kW
Rated current (max.): At 50 Hz: 7.6 A
At 60 Hz: 9.4 A
Start-up current max.: At 50 Hz: 22 A
At 60 Hz: 24 A
Pre-fuse: Miniature circuit-breaker/fuse: 16 A
Permissible operating pressure (p. max.): 30 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 1.9
Weight/pack: 73 kg
Note: Includes section door weight
Type: SK 3310700
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
