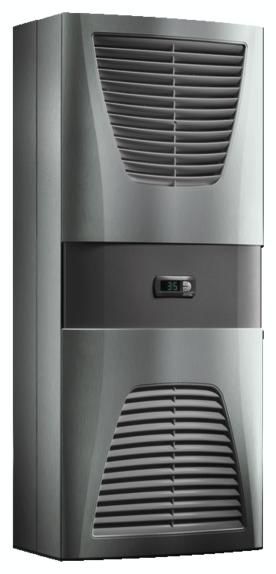

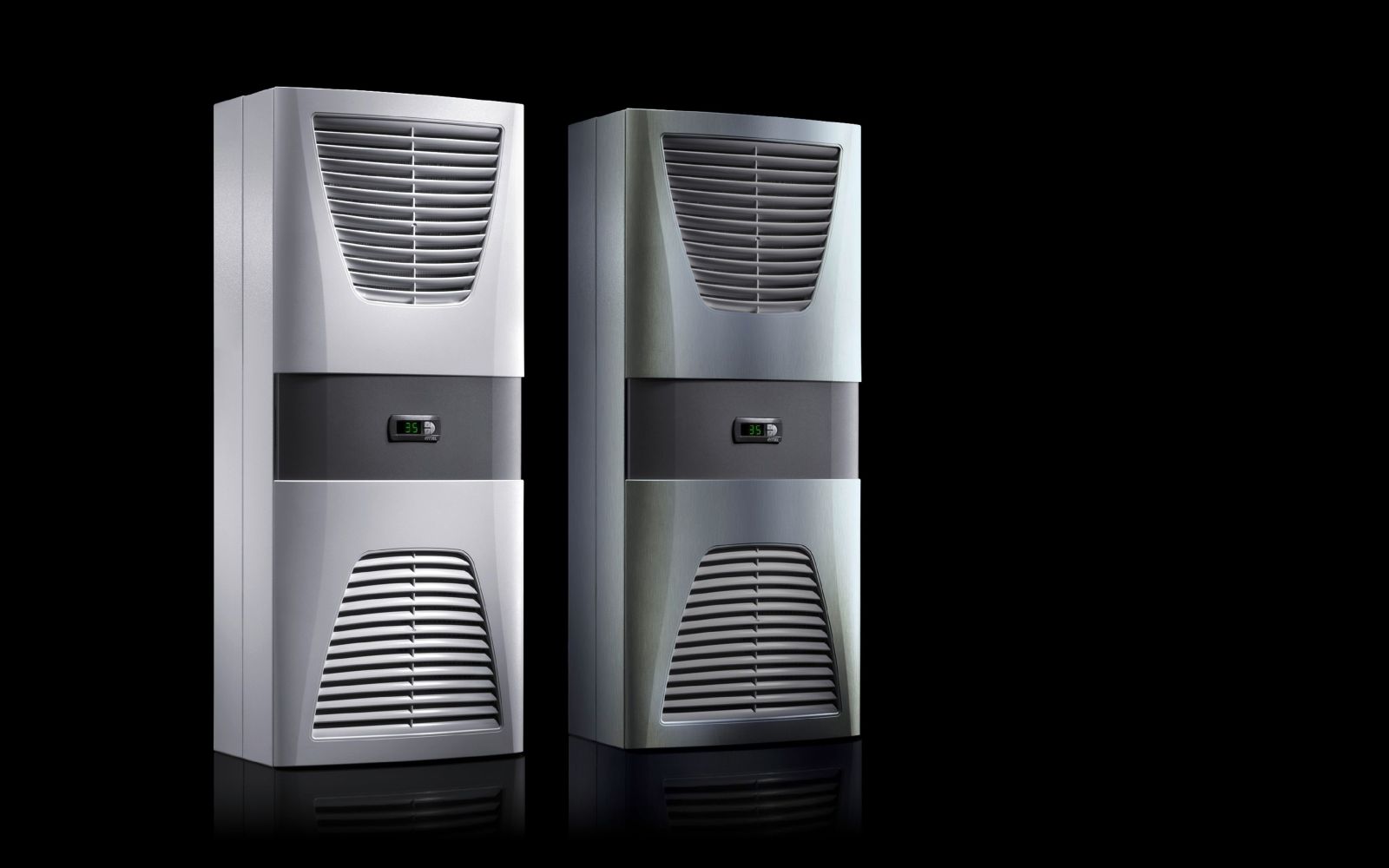

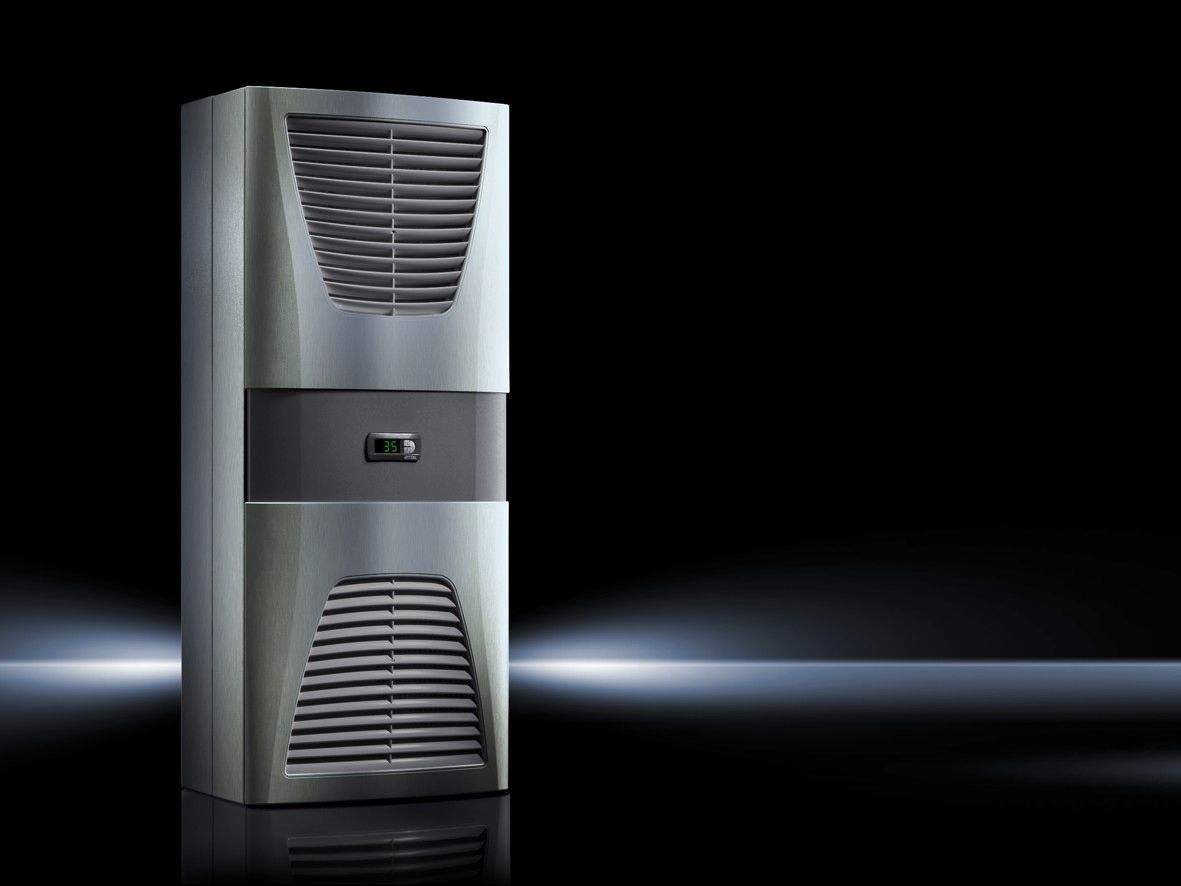

Rittal 3305600 SK Blue e cooling unit, Wall-mounted, 1.6 kW, 230 V, 1~, 50/60 Hz, Stainless steel, WHD: 400x950x260 mm
|
2.612,80 EUR |
|
|
( 3.109,23 EUR incl. VAT ) ≈ £2,218.27 | ≈ $2,944.63 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 185764 |
| Mfg Part No: | 3305600 |
| UPC/EAN: | 4028177379756 |
| Weight: | 39 kg |
| Type: | SK 3305600 |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3305600:
Material: Stainless steel
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Nano-coated condenser
Integral electric condensate evaporation
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Note on Model No.: Extended delivery times.
Packs of: 1 pc(s).
EAN: 4028177379756
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 1.6 kW
L 35 L 35 at 60 Hz: 1.76 kW
L 35 L 50 at 50 Hz: 1.25 kW
L 35 L 50 at 60 Hz: 1.37 kW
Air throughput (unimpeded air flow): External circuit: 900 m³/h
Internal circuit: 800 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 400 mm
Height: 950 mm
Depth: 260 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+55°C
Setting range: +20°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 500 g
Power consumption Pel: L 35 L 35 at 50 Hz: 0.87 kW
L 35 L 35 at 60 Hz: 0.98 kW
L 35 L 50 at 50 Hz: 1.03 kW
L 35 L 50 at 60 Hz: 1.15 kW
Rated current (max.): At 50 Hz: 5.5 A
At 60 Hz: 5.8 A
Start-up current max.: At 50 Hz: 12 A
At 60 Hz: 14 A
Pre-fuse: Miniature circuit-breaker/fuse: 16 A
Permissible operating pressure (p. max.): 28 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 1.83
Weight/pack: 41 kg
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Nano-coated condenser
Integral electric condensate evaporation
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Note on Model No.: Extended delivery times.
Packs of: 1 pc(s).
EAN: 4028177379756
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 1.6 kW
L 35 L 35 at 60 Hz: 1.76 kW
L 35 L 50 at 50 Hz: 1.25 kW
L 35 L 50 at 60 Hz: 1.37 kW
Air throughput (unimpeded air flow): External circuit: 900 m³/h
Internal circuit: 800 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 400 mm
Height: 950 mm
Depth: 260 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+55°C
Setting range: +20°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 500 g
Power consumption Pel: L 35 L 35 at 50 Hz: 0.87 kW
L 35 L 35 at 60 Hz: 0.98 kW
L 35 L 50 at 50 Hz: 1.03 kW
L 35 L 50 at 60 Hz: 1.15 kW
Rated current (max.): At 50 Hz: 5.5 A
At 60 Hz: 5.8 A
Start-up current max.: At 50 Hz: 12 A
At 60 Hz: 14 A
Pre-fuse: Miniature circuit-breaker/fuse: 16 A
Permissible operating pressure (p. max.): 28 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 1.83
Weight/pack: 41 kg
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
