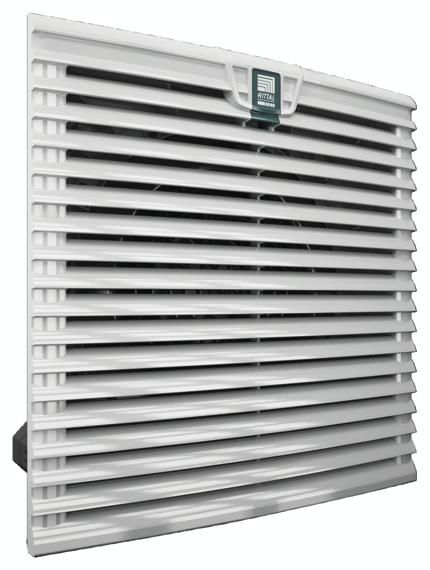

Rittal 3244100 SK TopTherm fan-and-filter unit, 700/770 m³/h, 230 V, 1~, 50/60 Hz, WH: 323x323 mm
|
-7% 184,20 EUR 197,09 EUR |
|||||||||||
|
( 219,20 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 609555 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3244100 | ||||||||||
| UPC/EAN: | 4028177652163 | ||||||||||
| Weight: | 4.25 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 3244100:
Protection category IP to IEC 60 529: IP 54
NEMA 12
With hose-proof hood: IP 54
With hose-proof hood: NEMA 3
With hose-proof hood: NEMA 3R
With hose-proof hood: NEMA 4
With hose-proof hood: NEMA 4X
With fine filter mat or hose-proof hood: IP 54
With fine filter mat or hose-proof hood: NEMA 12
Supply includes: Complete unit ready to install, including filter mat
Note: For energy-efficient operation of the fan-and-filter units, we recommend using the enclosure internal thermostat, the speed control or the digital enclosure internal temperature display and thermostat
Packs of: 1 pc(s).
EAN: 4028177652163
Customs tariff number: 84145100
eCl@ss 5.1: 27180705
eCl@ss 7.0: 27180716
ETIM 6.0: EC000320
Air throughput (unimpeded air flow): At 50 Hz: 700 m³/h
At 60 Hz: 770 m³/h
Air throughput with outlet filter including standard filter mat: Number of outlet filters: 1
Number of outlet filters: 2
Model No. of outlet filter: SK 3243.200
Model No. of outlet filter: SK 3243.200
At 50 Hz: 544 m³/h
At 50 Hz: 614 m³/h
At 60 Hz: 587 m³/h
At 60 Hz: 662 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 323 mm
Height: 323 mm
Required mounting cut-out: Width: 292 mm
Height: 292 mm
Build depth: 25 mm
Installation depth: 130.5 mm
Temperature range: Bearing: -30°C...+70°C
Operation (environment): -30°C...+55°C
Power consumption Pel: At 50 Hz: 95 W
At 60 Hz: 135 W
Rated current (max.): At 50 Hz: 0.43 A
At 60 Hz: 0.6 A
Pre-fuse: Miniature circuit-breaker/fuse: 4 A
Noise level: At 50 Hz: 65 dB(A)
At 60 Hz: 66 dB(A)
Diagonal fan: Diagonal, 1~ capacitor motor
Weight/pack: 4.3 kg
Type: SK 3244.100
Questions & answers
What is the delivery time of Rittal 3244100 SK TopTherm fan-and-filter unit, 700/770 m³/h, 230 V, 1~, 50/60 Hz, WH: 323x323 mm?
The article Rittal 3244100 SK TopTherm fan-and-filter unit, 700/770 m³/h, 230 V, 1~, 50/60 Hz, WH: 323x323 mm is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3244100 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3244100 SK TopTherm fan-and-filter unit, 700/770 m³/h, 230 V, 1~, 50/60 Hz, WH: 323x323 mm always at the best possible price. We can give you a discount of 2% on Rittal 3244100 SK TopTherm fan-and-filter unit, 700/770 m³/h, 230 V, 1~, 50/60 Hz, WH: 323x323 mm if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Rittal 3244100 SK TopTherm fan-and-filter unit, 700/770 m³/h, 230 V, 1~, 50/60 Hz, WH: 323x323 mm we can offer you a price of 181,44 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
