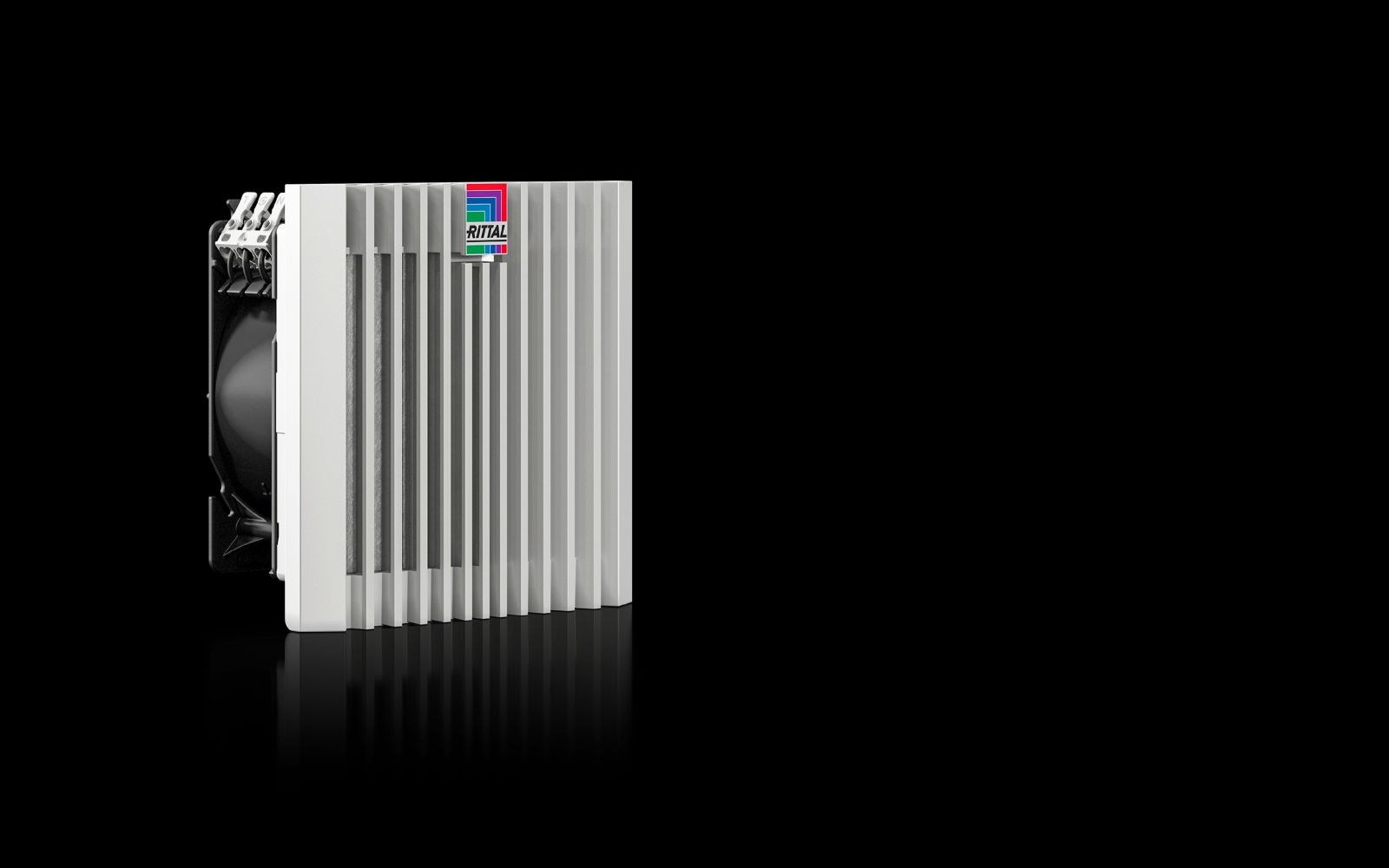

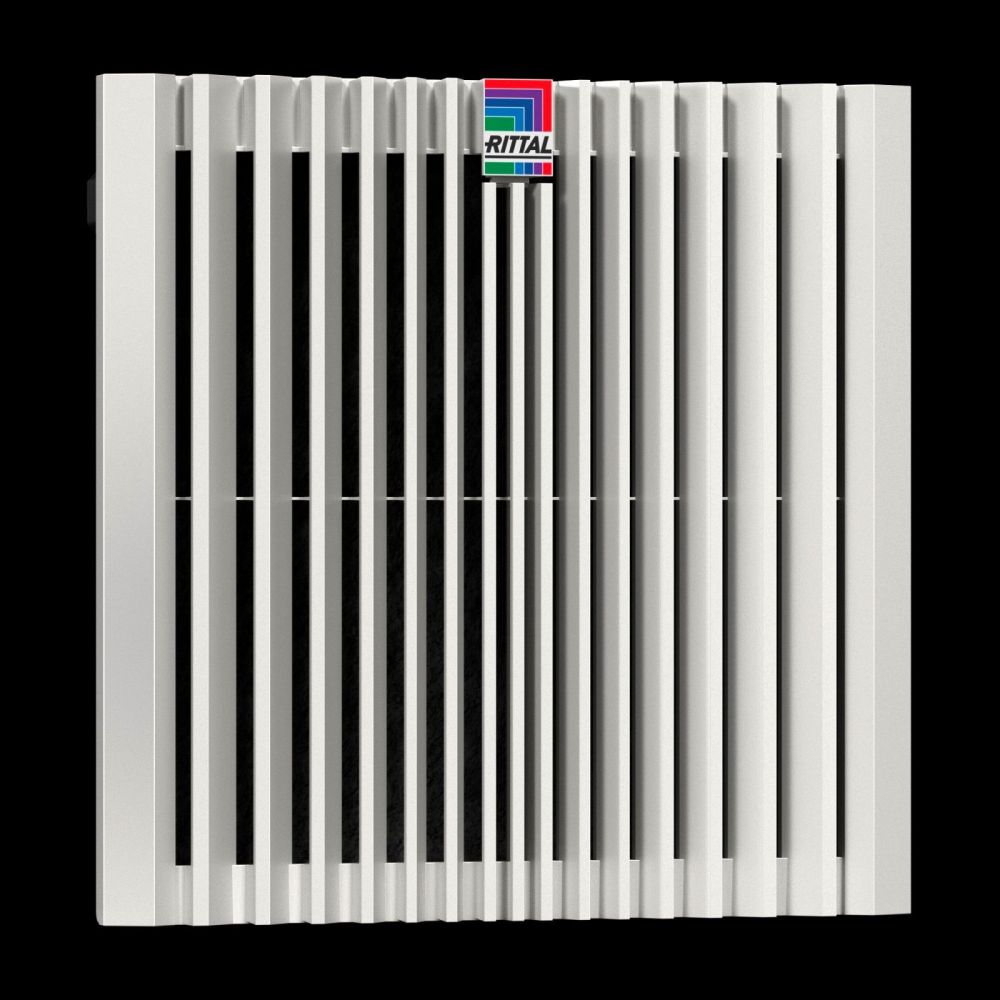

Rittal 3238810 Blue e+ filter fan EMV 53/64 m³/h, 115 V, RAL 7035
|
166,64 EUR 169,28 EUR |
|
|
( 198,30 EUR incl. VAT ) ≈ £139.48 | ≈ $183.14 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 683799 |
| Mfg Part No: | 3238810 |
| UPC/EAN: | 4028177997639 |
| Weight: | 0.68 kg |
| Type: | SK 3238.810 |
Product information for Rittal 3238810:
Applications
The fan is designed for use in industrial and technical installations where continuous, dust-free ventilation is required. It is particularly suitable for enclosures in production environments, automation technology, machine building, and installations operating in areas with increased dust exposure. The wall mounting allows for flexible integration into existing enclosure constructions.
Functions and Equipment in Detail

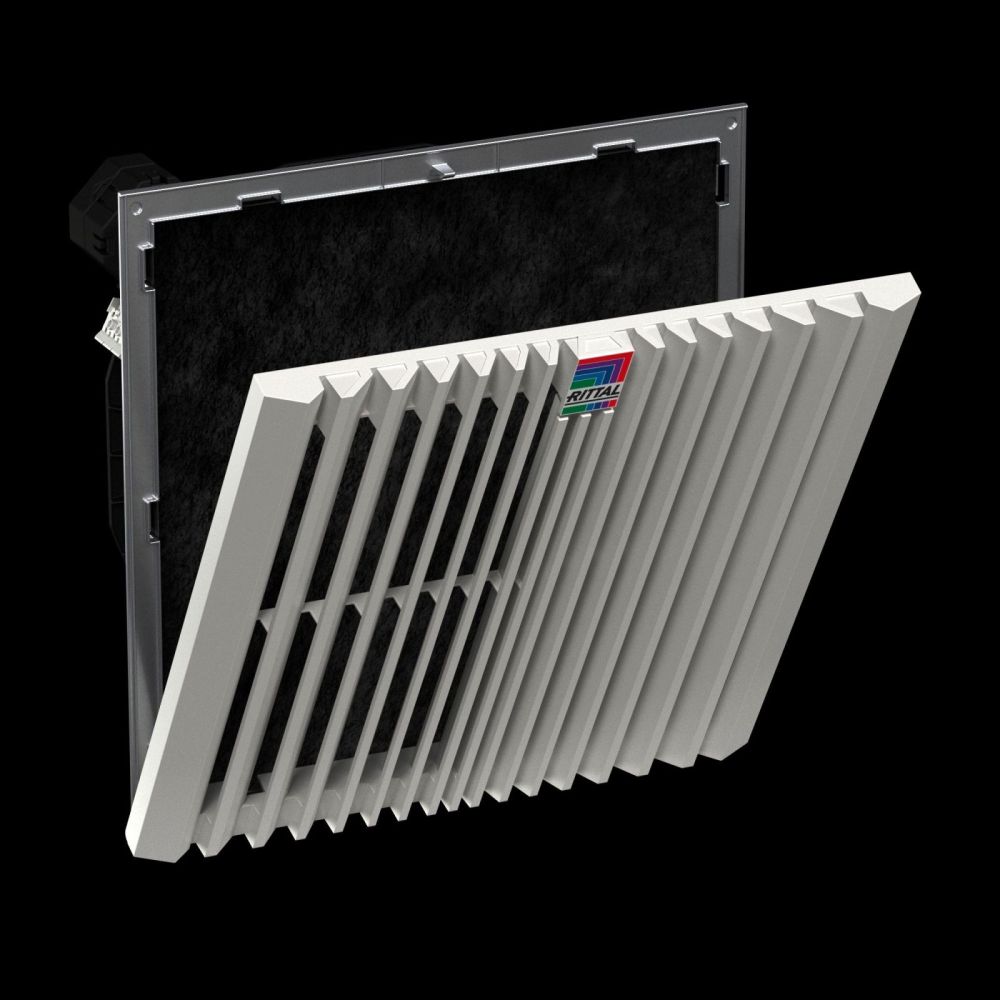

The fan features an axial fan with split-pole motor, ensuring uniform and constant air circulation. The diagonal fan technology provides improved air distribution within the enclosure due to higher pressure stability. The easy filter replacement is enabled by a new opening mechanism on the louver grille, simplifying maintenance. Installation is tool-free using optimized snap hooks, accelerating the setup process.
Technology Explained Simply
The air performance is 53 m³/h at 50 Hz and 64 m³/h at 60 Hz under free-blowing operation (with felt filter). When using an additional outlet filter, the air performance drops to 40 m³/h at 50 Hz and 46 m³/h at 60 Hz. The rated operating voltage is 115 V, 1~, 50 Hz/60 Hz, enabling universal use in various power networks. The rated power is 15.4 W at 50 Hz and 15.8 W at 60 Hz, with a maximum rated current of 0.2 A and 0.21 A respectively. The sound pressure level is 52 dB(A) at 50 Hz and 54 dB(A) at 60 Hz, representing an acoustically acceptable operating noise level. The operating temperature range is from -15 °C to 55 °C, and the storage temperature range is from -30 °C to 70 °C.
Compatibility and Accessories
The fan is equipped with a felt filter, ensuring IP 54 protection rating according to IEC 60 529. When used with a spray water hood, the protection rating increases to IP 54. Correspondingly, NEMA protection ratings Type 12 (with felt filter) and Type 3, 3R, 4, 4X (with felt filter and spray water hood) are achievable. Compatible accessories include Blue e+ outlet filter EMV, thermostat enclosure internal temperature controller, speed controller for filter fans, digital temperature display and control, SK spray water hood, and hygrostat. The use of temperature controllers or displays is recommended to improve energy efficiency and extend the device’s service life.
Mounting and Installation

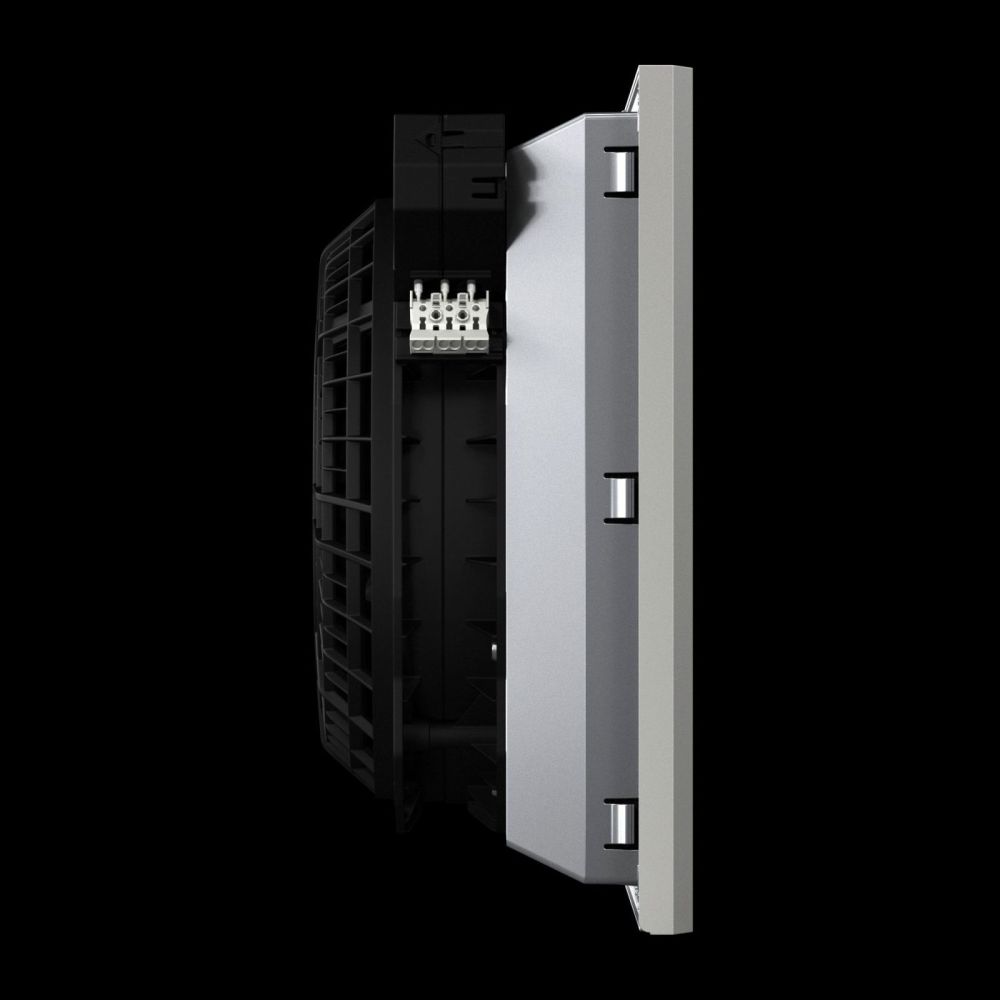

The unit is mounted on the enclosure wall, requiring a mounting cutout with a breakout width and height of 124 mm each. The installation depth is 64 mm, and the overall dimensions are 148.5 mm (width) × 148.5 mm (height) × 82.5 mm (depth). The tool-free mounting and optimized snap hooks allow for quick and secure installation without additional tools.
Operational Advantages
The fan provides reliable, dust-free ventilation, extending the service life of electronic components within the enclosure. The EMV shielding protects against electromagnetic interference. Easy maintenance via the new opening mechanism and tool-free mounting reduces maintenance effort. The combination of high air flow and low noise level ensures efficient and quiet operation. The use of additional controllers enables intelligent fan speed control based on temperature requirements, saving energy and enhancing operational safety.
| General | |
| Model | Wall mounting, EMC |
| Material | Plastic |
| Colour | RAL 7035 |
| Scope of delivery | Complete ready-to-install unit, including EMI filter mat |

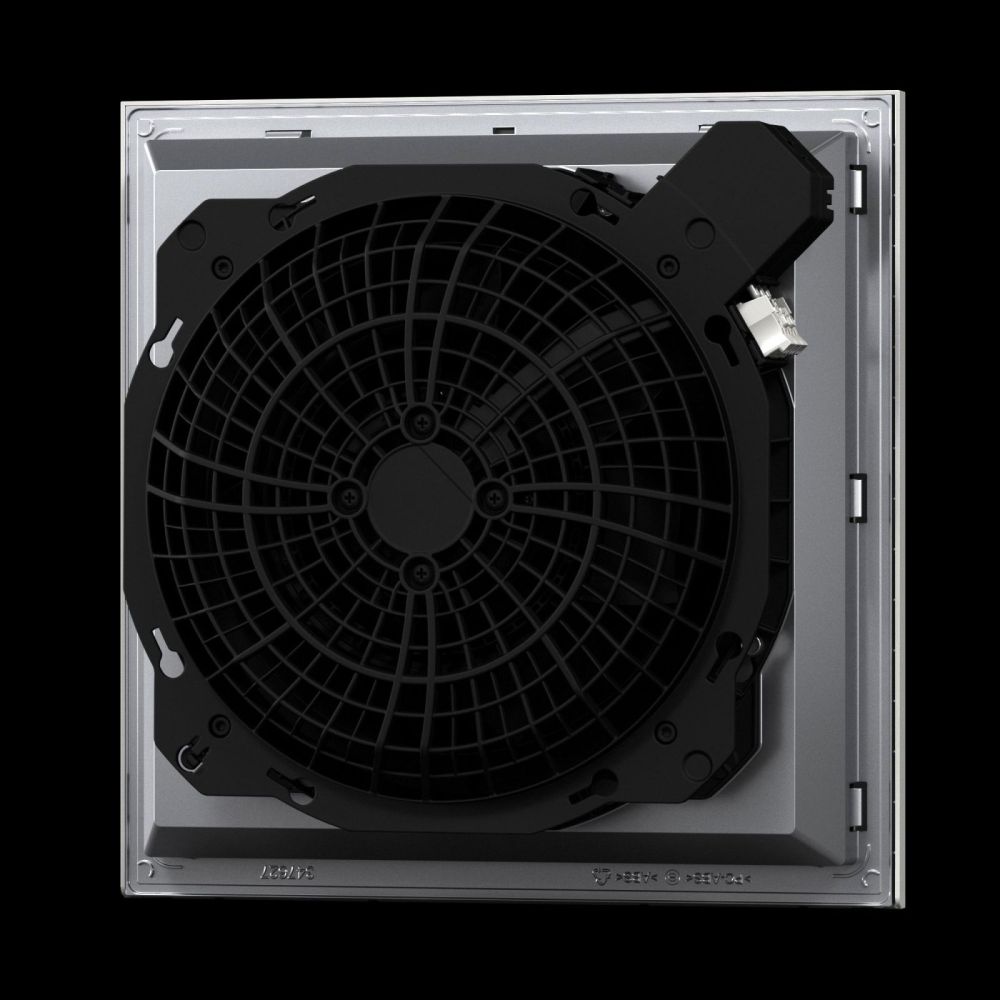

| Fan | Axial, split-pole motor |
| Airflow free-blowing (with filter) | At 50 Hz: 53 m³/h, At 60 Hz: 64 m³/h |
| Airflow with associated exhaust filter including felt filter | At 50 Hz: 40 m³/h, At 60 Hz: 46 m³/h |
| Rated operating voltage | 115 V, 1~, 50 Hz/60 Hz |
| Rated power Pel | At 50 Hz: 15.4 W, at 60 Hz: 15.8 W |
| Rated current max. | At 50 Hz: 0.2 A, At 60 Hz: 0.21 A |
| Width | 148,5 mm |
| Height | 148,5 mm |
| Depth | 82,5 mm |
| Built-in depth | 64 mm |
| Mounting cutout | Cutout width: 124 mm, cutout height: 124 mm |
| Degree of protection IP according to IEC 60 529 | IP 54 with felt filter, IP 56 with felt filter and spray hood |
| NEMA degree of protection | Type 12 with felt filter, Type 3, 3R, 4, 4X with felt filter and spray shield |
| Fuse | Circuit breaker/fuse: 2 A |
| Note | To improve energy efficiency and increase device lifespan, use of temperature controllers or indicators is recommended. |
| Operating temperature range | -15 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Sound pressure level | At 50 Hz: 52 dB(A), At 60 Hz: 54 dB(A) |
