Rittal 3238400 Blue e+ outlet filter EMV, RAL 7035
|
77,17 EUR |
|
|
( 91,83 EUR incl. VAT ) ≈ £65.44 | ≈ $86.51 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 683791 |
| Mfg Part No: | 3238400 |
| UPC/EAN: | 4028177998407 |
| Weight: | 0.217 kg |
| Type: | SK 3238.400 |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3238400:

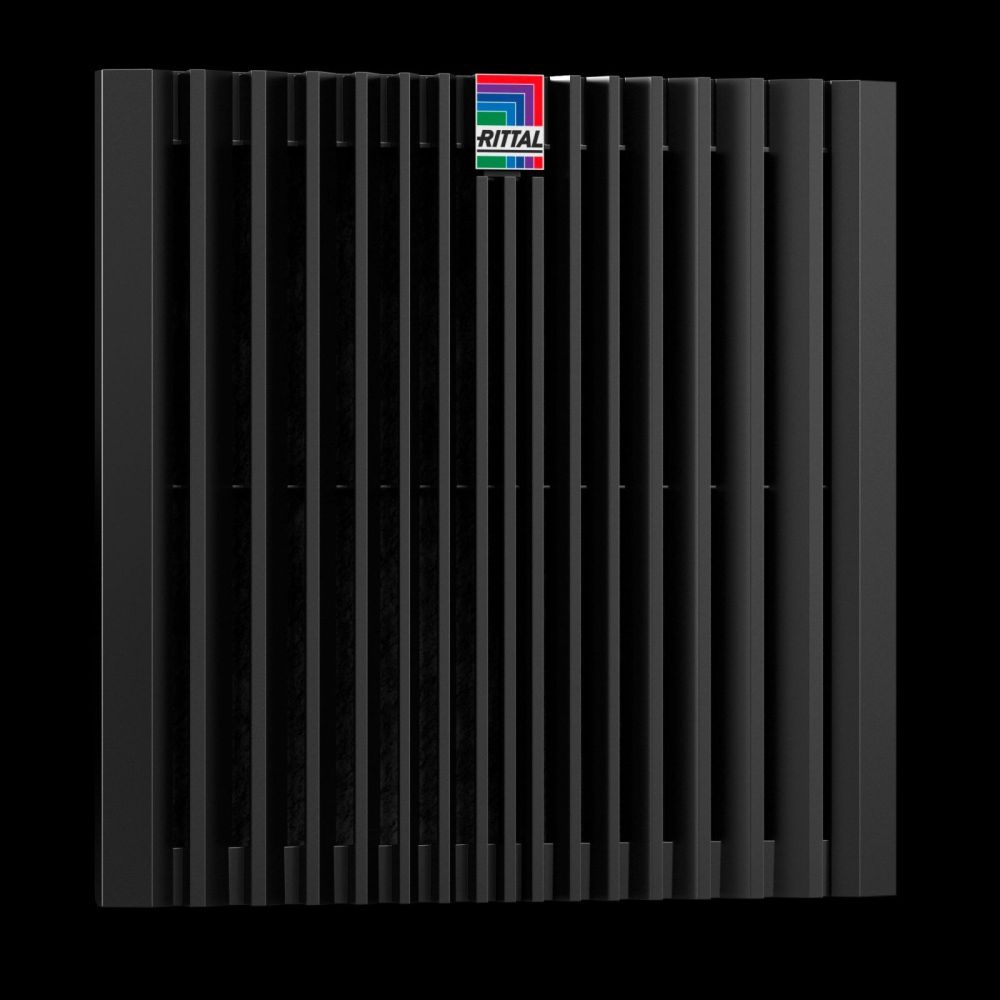

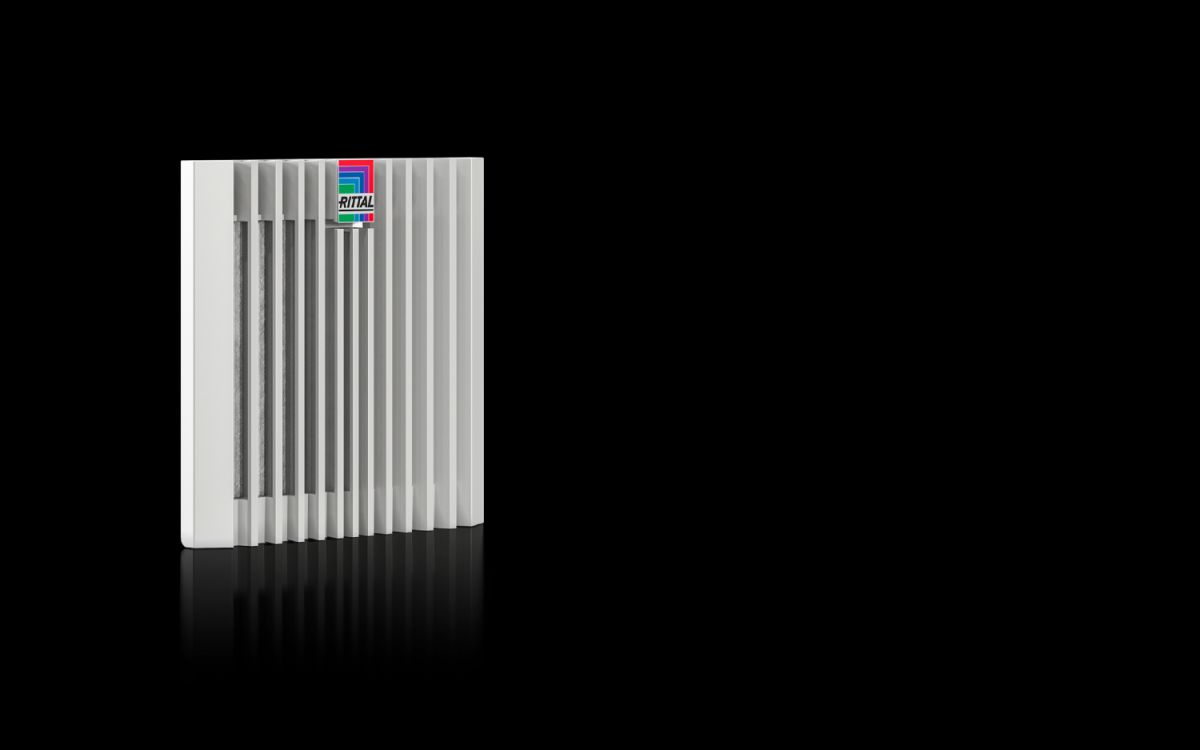

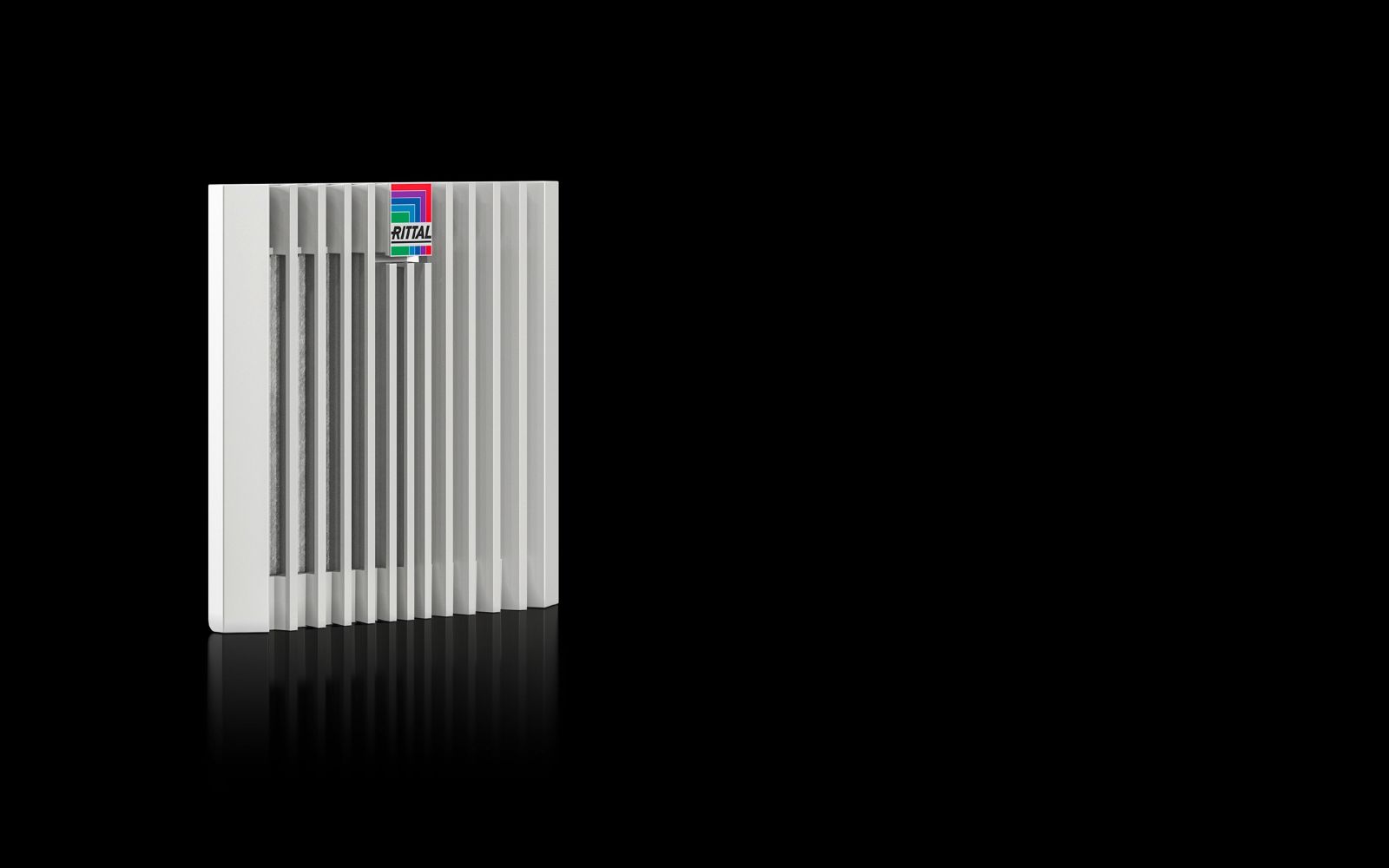

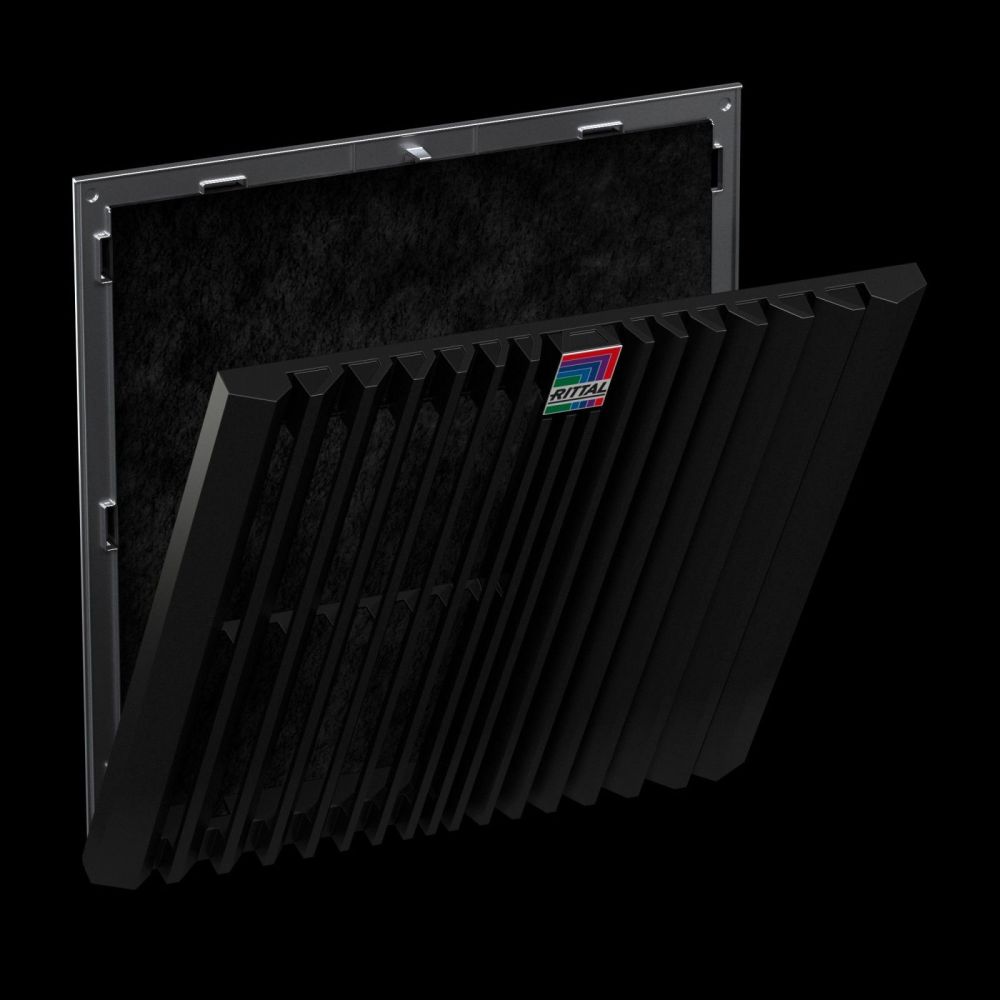

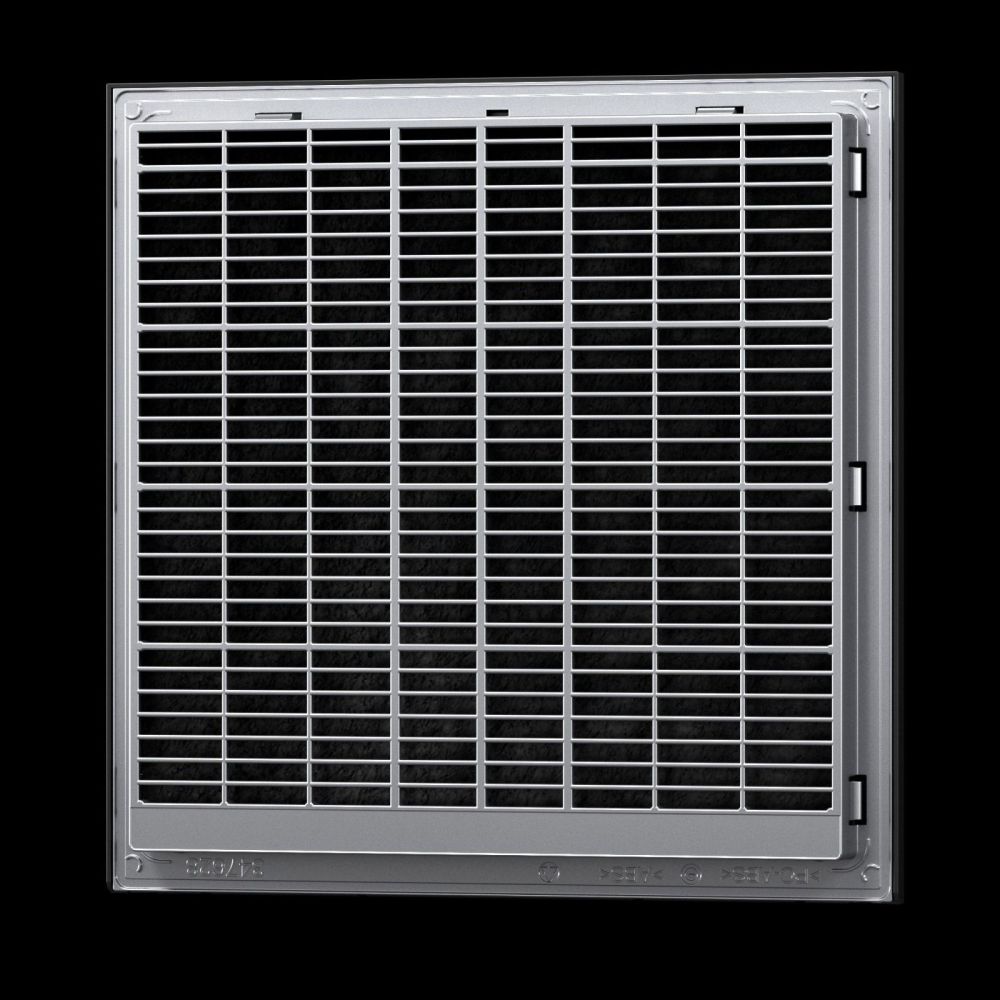

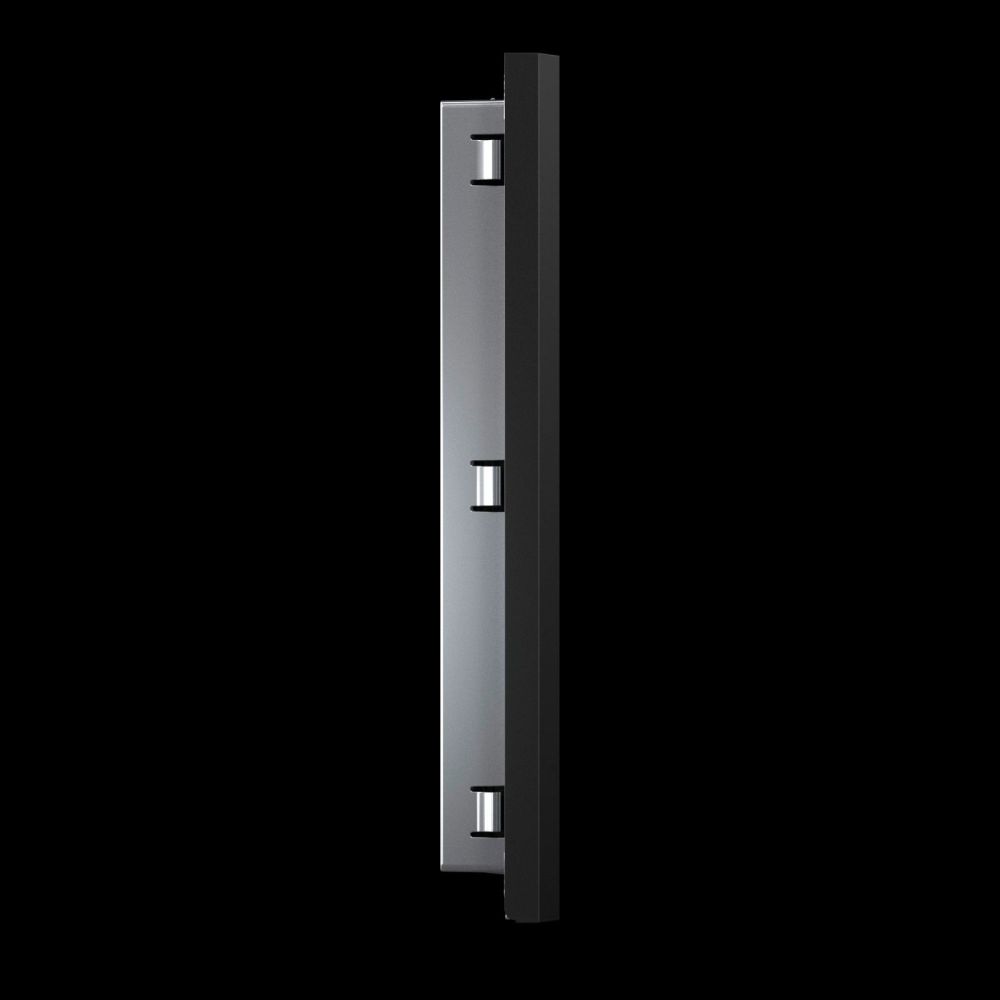

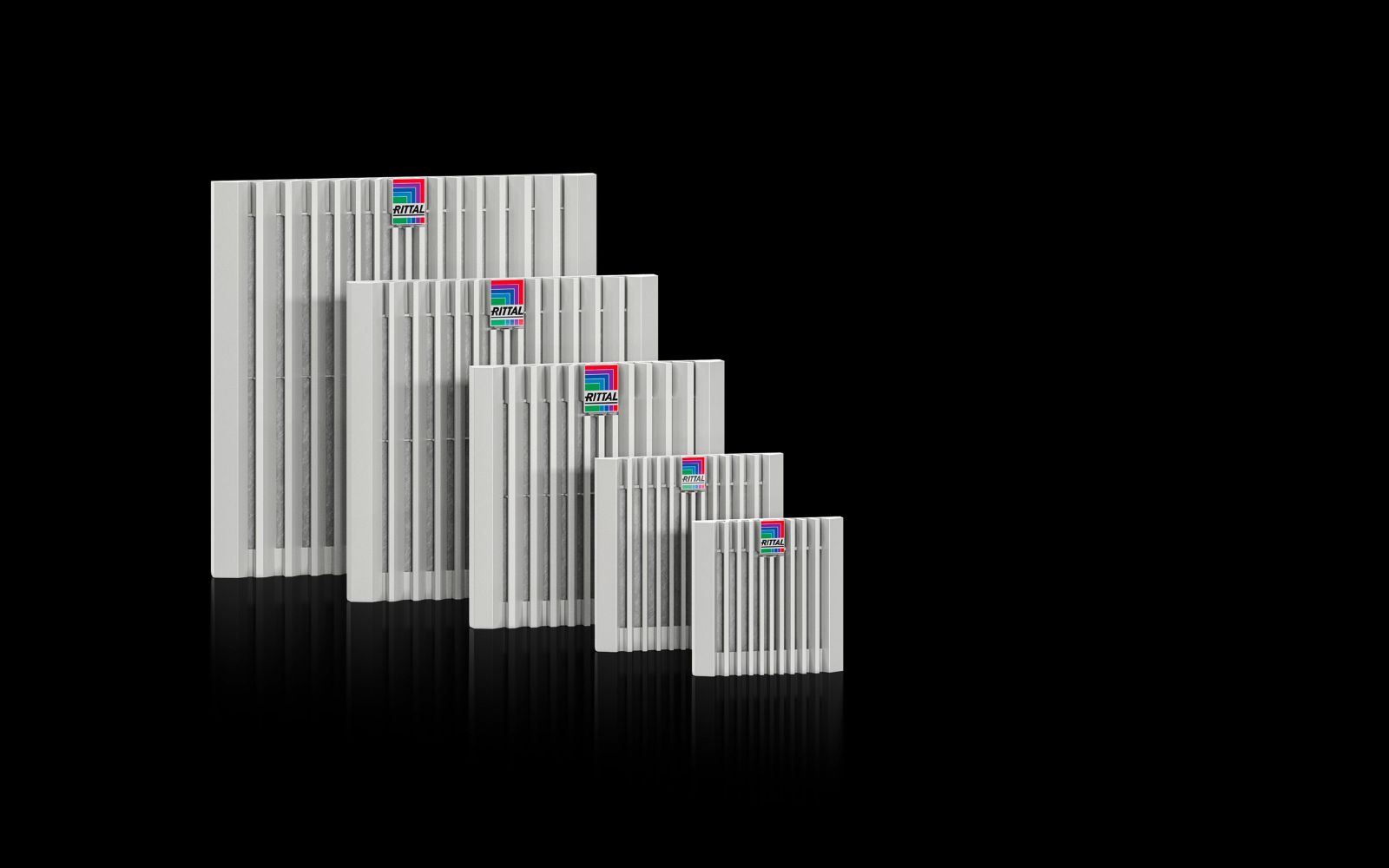

The Rittal SK 3238.400 is a specially designed exhaust filter with integrated EMC function (Electromagnetic Compatibility) for the Blue e+ fan filter series 3238.8xx. It enables efficient air purification in the exhaust airflow of control cabinets by retaining fine particles, dust, and other contaminants. This significantly increases the longevity of sensitive components such as sensors, circuit boards, and electronic parts by preventing contamination. The filter unit is finished in RAL 7035 (Gray), allowing visual harmonization with other control cabinet components and enhancing the industrial appearance. With dimensions of 148.5 mm (width) x 148.5 mm (height), the filter fits precisely into the designated mounting openings of the corresponding fans, ensuring secure and maintenance-friendly installation. The EMC filter function reduces electromagnetic interference, which is particularly beneficial in sensitive industrial environments.
Technical Data
Technical Data
- Type: SK Blue e+ exhaust filter
- EMC filter: Yes
- Compatible with: Fan filters 3238.8xx
- Dimensions (W x H x D): 148.5 mm x 148.5 mm x 34.2 mm
- Mounting cutout (opening) W x H: 124 mm x 124 mm
- Color: RAL 7035
- Application: Control cabinet climate control, air purification in exhaust airflow
- Mounting: Wall mounting
- Weight (gross): 0.217 kg
- Protection rating IP: IP 54 with nonwoven filter; IP 54 with nonwoven filter and spray hood
- Protection rating NEMA: Type 12 with nonwoven filter; Type 3, 3R, 4, 4X with nonwoven filter and spray hood
Questions & answers
What is the delivery time of Rittal 3238400 Blue e+ outlet filter EMV, RAL 7035?
The article Rittal 3238400 Blue e+ outlet filter EMV, RAL 7035 is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3238400 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3238400 Blue e+ outlet filter EMV, RAL 7035 always at the best possible price. We can give you a discount of 2% on Rittal 3238400 Blue e+ outlet filter EMV, RAL 7035 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
