Rittal 3238824 Blue e+ filter fan EMV 53 m³/h, 24 V DC, RAL 7035

Your rating:
Average rating
product review for Rittal 3238824 Blue e+ filter fan EMV 53 m³/h, 24 V DC, RAL 7035
( 4.5 / 5 ) 2 ratings
Rittal 3238824
This image may differ from the desired article.
Rittal 3238824Rittal 3238824Rittal 3238824Rittal 3238824Rittal 3238824Rittal 3238824
-10% 196,65 EUR 219,37 EUR
( 234,01 EUR incl. VAT )
≈ £164.60  |  ≈ $216.12
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3238824 Blue e+ filter fan EMV 53 m³/h, 24 V DC, RAL 7035
Datasheet:file_download Download
Lieske Part No.:683801
Mfg Part No: 3238824
UPC/EAN: 4028177985544
Weight:0.92 kg
Type:SK 3238.824

Product information for Rittal 3238824:

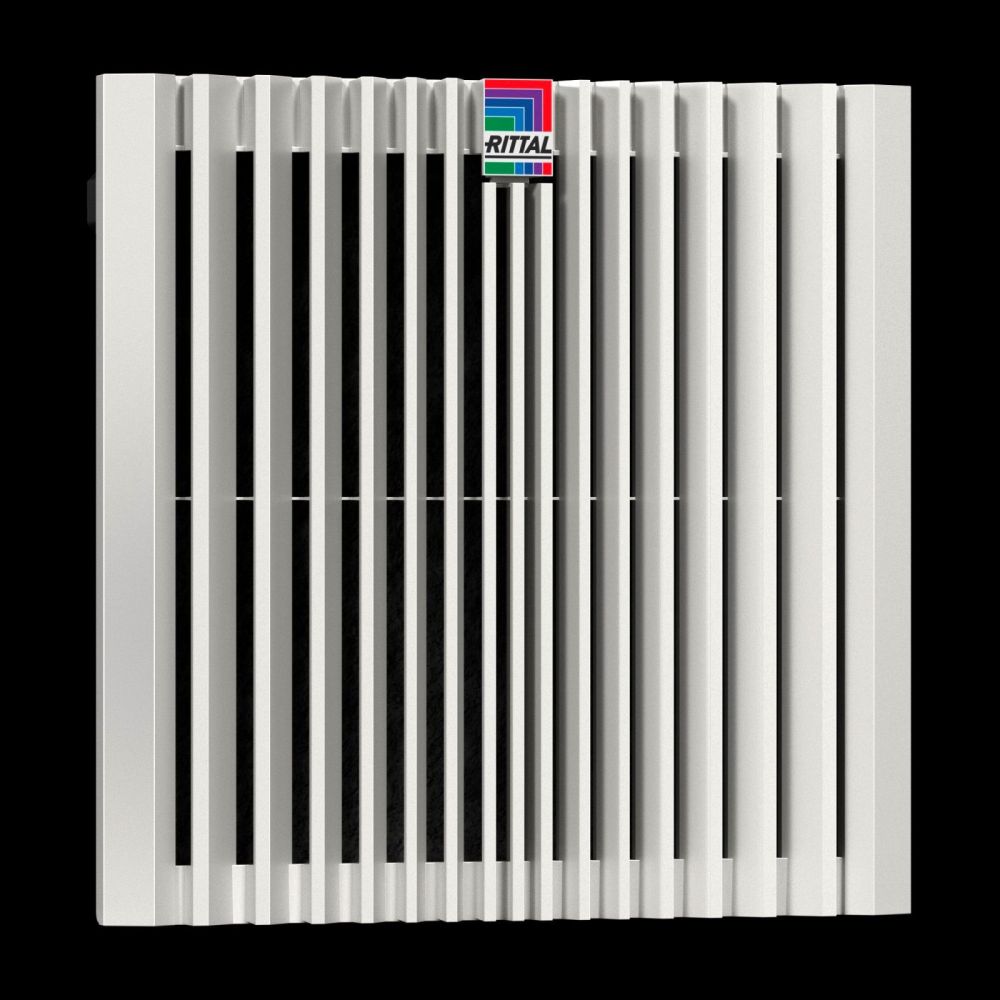

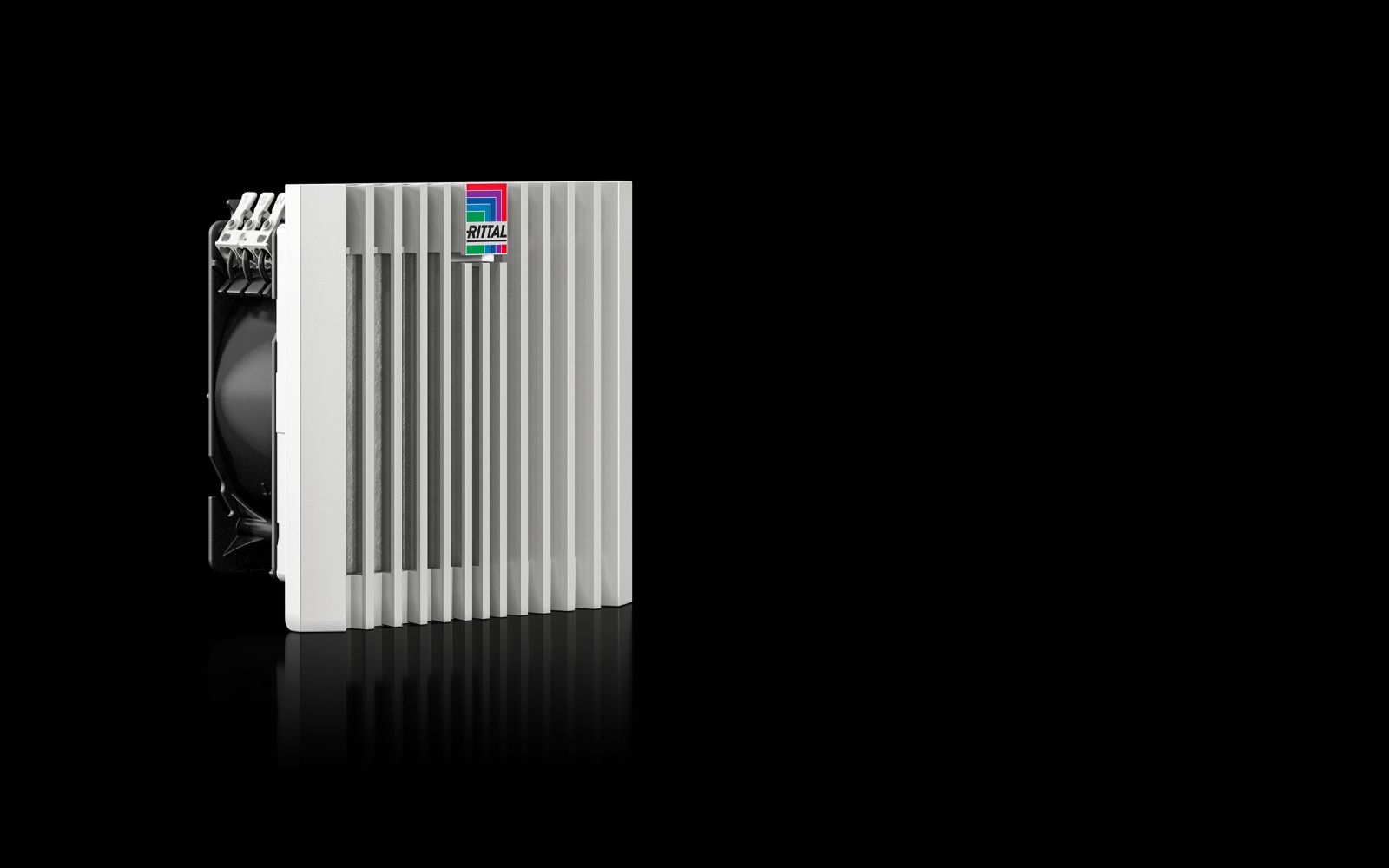

The Rittal SK 3238.824 is an EMV filter fan for enclosure climate control, designed as a wall-mounted unit. It is intended for controlled ventilation of enclosures and ensures efficient heat dissipation while providing protection against dust and splashing water. The device is made of plastic and is available in the color RAL 7035. It features an axial fan with a DC motor, achieving an air flow rate of 53 m³/h free blowing (with a non-woven filter). When used with a corresponding outlet filter, the air flow rate reduces to 40 m³/h. The rated operating voltage is 24 V (DC), the rated power is 5.7 W, and the maximum rated current is 0.27 A. The fan generates a sound pressure level of 52 dB(A) and is designed for operating temperatures from -15 °C to 55 °C.

Applications

The fan is designed for use in industrial environments where controlled air circulation within the enclosure is required. It is particularly suitable for installations where electromagnetic compatibility (EMV) is important, as it meets requirement level 2 according to EN 61587-3. The integrated EMV shielding provides high attenuation of interference and protects sensitive electronic components. The protection rating IP 54 (with non-woven filter) and IP 56 (with non-woven filter and spray water hood) make it suitable for locations with dust exposure or splashing water. In accordance with NEMA standards, it offers protection according to Type 12 (with non-woven filter) and Type 3, 3R, 4, 4X (with non-woven filter and spray water hood).

Functions and Equipment in Detail

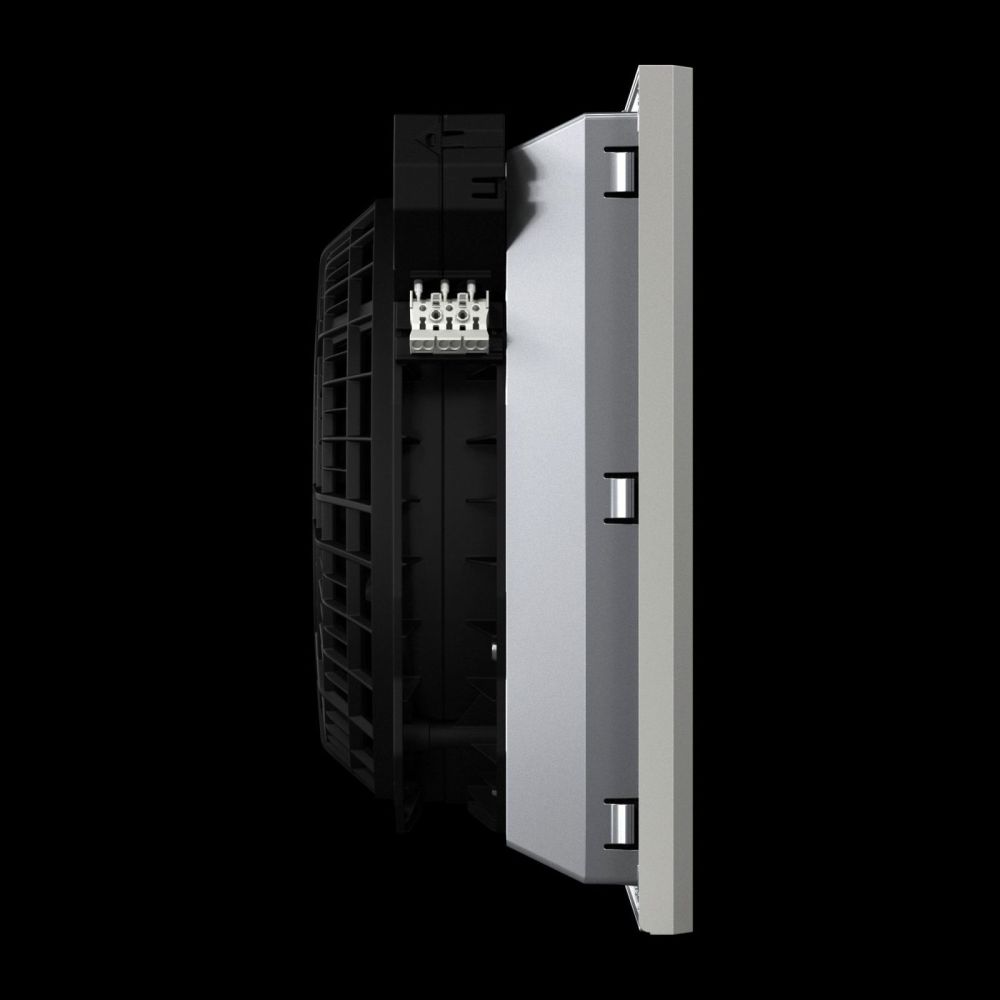

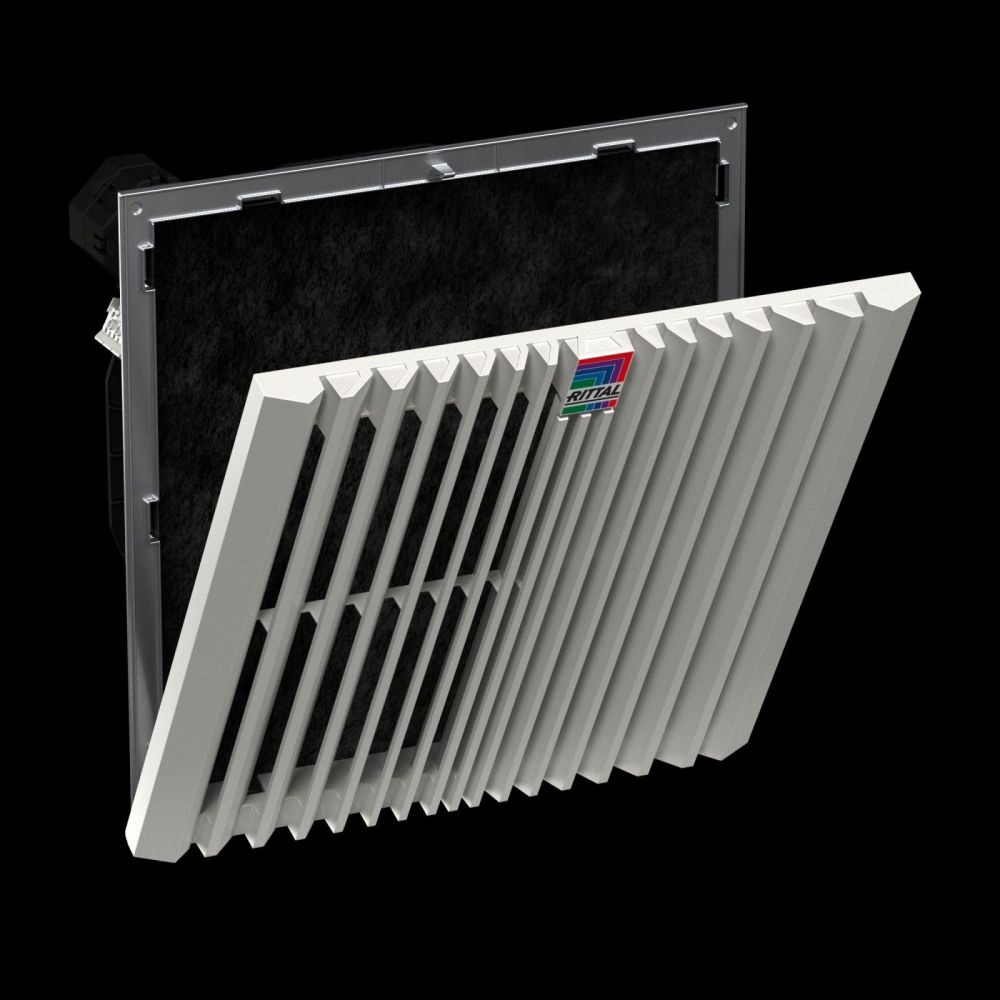

The fan is delivered as a fully ready-to-install unit and includes an EMV filter mat. Installation is tool-free, using optimized snap hooks, which speeds up mounting on the enclosure. A new opening mechanism on the louver grille allows for easy filter replacement. The diagonal fan technology ensures higher pressure stability and more uniform, consistent ventilation of the enclosure. Dimensions are W x H x D: 148.5 x 148.5 x 82.5 mm, with an installation depth of 64 mm. The mounting cutout requires a 124 mm width and 124 mm height opening.

Technology Explained Simply

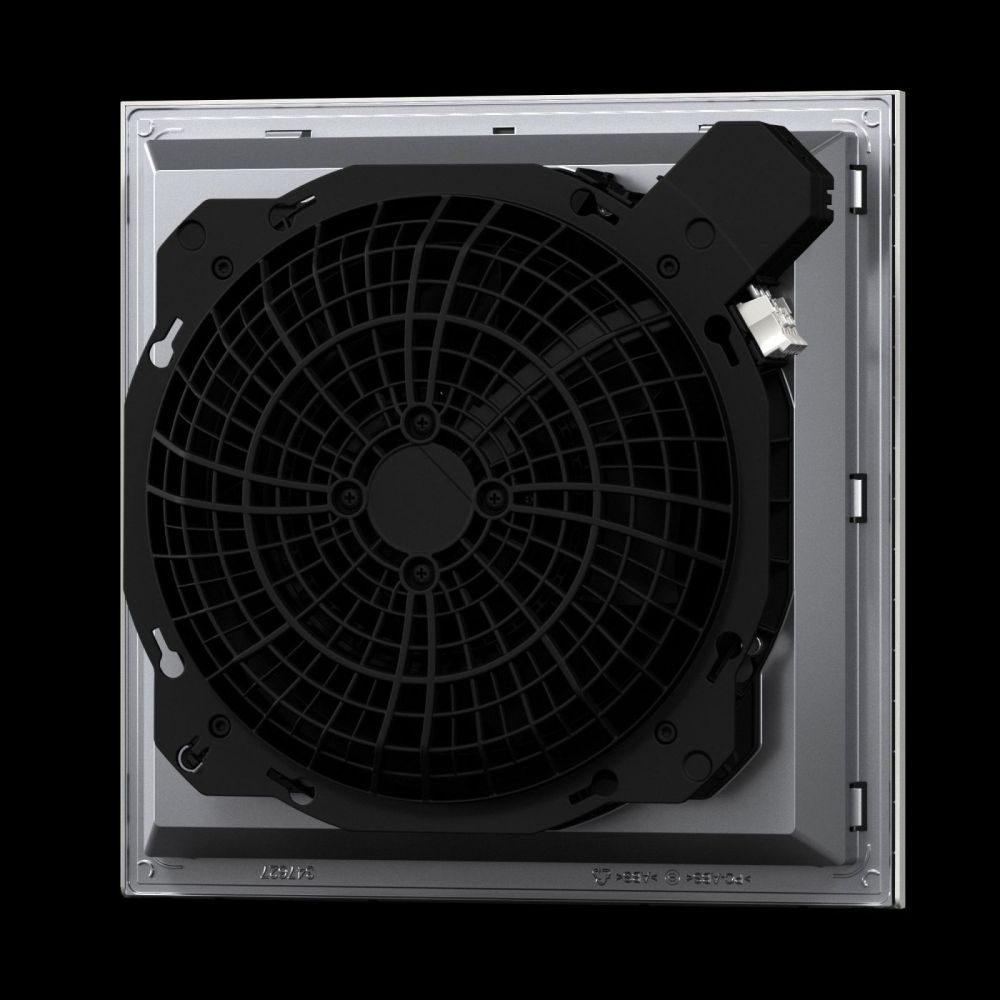

The DC motor of the axial fan ensures energy-efficient and quiet operation. Air flow is affected by filtration: the non-woven filter reduces air volume, which is necessary to filter dust and particles from the enclosure. The EMV shielding protects against electromagnetic interference caused by other devices within the enclosure or in the surrounding environment. Protection ratings IP 54 and IP 54, along with NEMA classifications, define resistance to mechanical impacts, dust, and water. The 2 A fuse protects the device against overloads.

Compatibility and Accessories

Various accessories are available to extend functionality. These include a Blue e+ outlet filter EMV in RAL 7035, a thermostat for internal temperature control, a digital temperature display and control for 100–230 V, an SK spray water hood for protection against splashing water (dimensions 176x245x55 mm), and a hygrostat. The use of a temperature controller or temperature display is recommended to improve energy efficiency and extend the device’s service life.

Mounting and Installation

Mounting is tool-free onto the enclosure wall. The optimized snap hooks enable quick and secure fastening. A mounting cutout of 124 mm x 124 mm must be provided in the enclosure. The installation depth of 64 mm must be considered in the enclosure. The unit is delivered complete, including the EMV filter mat.

Operational Advantages

The fan provides a reliable and low-maintenance ventilation solution. Tool-free mounting and easy filter replacement reduce installation and maintenance time. The EMV shielding ensures a stable electrical environment within the enclosure. The combination of air flow, protection rating, and energy efficiency makes the fan suitable for industrial applications with high demands for reliability and functionality. The operating temperature range of -15 °C to 55 °C allows use in a wide range of environments. The storage temperature range of -30 °C to 70 °C ensures storage capability under various conditions.

General
ModelWall mounting, EMC
MaterialPlastic
ColourRAL 7035
Scope of deliveryComplete ready-to-install unit, including EMI filter mat
FanAxial, DC motor
Airflow free-blowing (with filter)At DC: 53 m³/h
Airflow with associated exhaust filter including felt filterAt DC: 40 m³/h
Rated operating voltage24 V (DC)
Rated power PelFor DC: 5.7 W
Rated current max.At DC: 0.27 A
Width148,5 mm
Height148,5 mm
Depth82,5 mm
Built-in depth64 mm
Mounting cutoutCutout width: 124 mm, cutout height: 124 mm
Degree of protection IP according to IEC 60 529IP 54 with felt filter, IP 56 with felt filter and spray hood
NEMA degree of protectionType 12 with felt filter, Type 3, 3R, 4, 4X with felt filter and spray shield
FuseCircuit breaker/fuse: 2 A
NoteTo improve energy efficiency and increase device lifespan, use of temperature controllers or indicators is recommended.
Operating temperature range-15 °C...55 °C
Storage temperature range-30 °C...70 °C
Sound pressure levelAt DC: 52 dB(A)


Product data sheet
Datasheet for Rittal 3238824, EAN: 4028177985544
