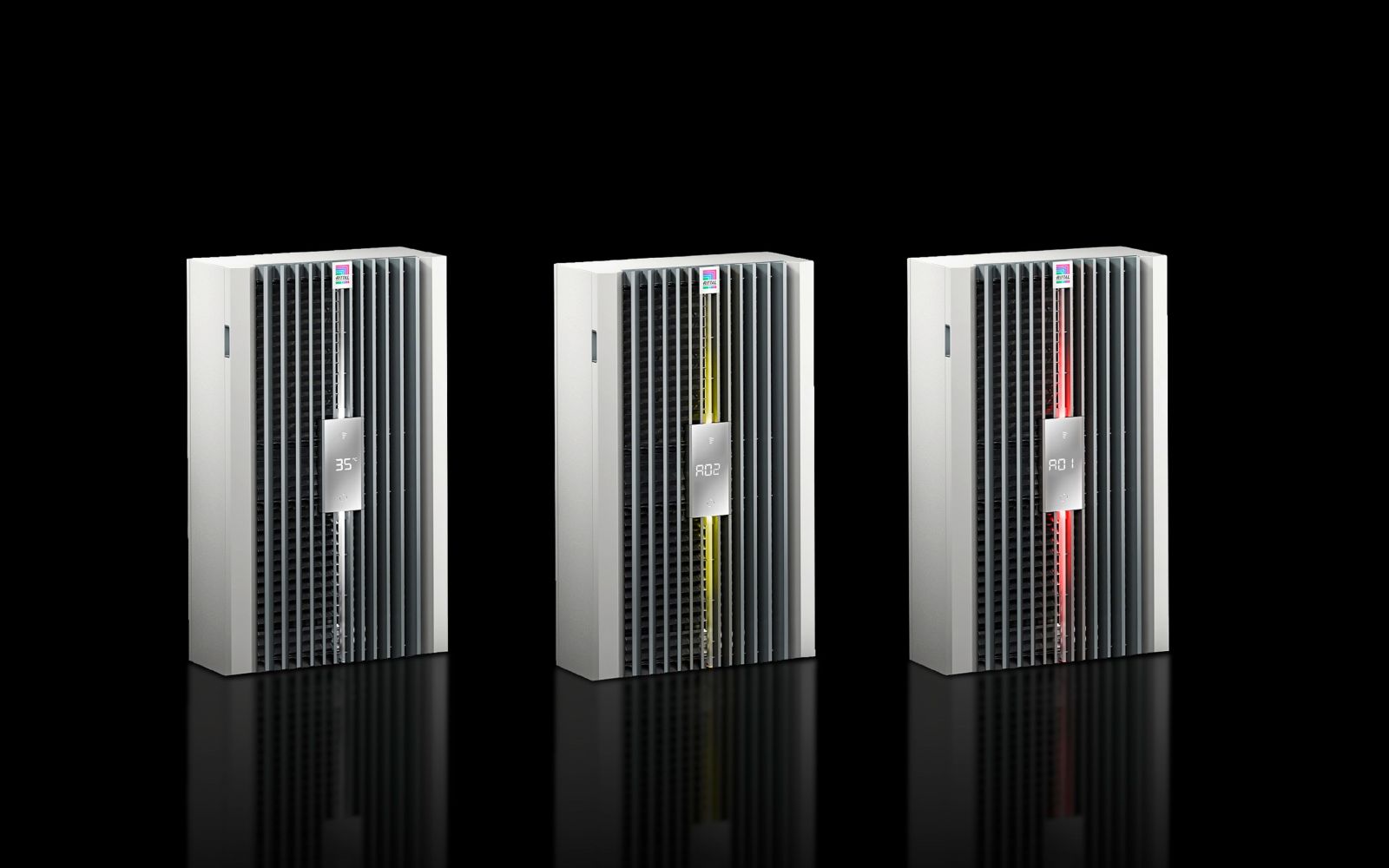

Rittal 3179801 Blue e+ S wall-mounted cooling unit, 500 W, without condensate
|
-5% 1.453,60 EUR 1.528,20 EUR |
|
|
( 1.729,78 EUR incl. VAT ) ≈ £1,216.66 | ≈ $1,597.51 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Lieske Part No.: | 1101763 |
|---|---|
| Mfg Part No: | 3179801 |
| UPC/EAN: | 4028177962569 |
| Weight: | 13.84 kg |
| Type: | SK 3179801 |
Product information for Rittal 3179801:
Applications
This cooling unit is intended for use in semi-outdoor environments, meaning it can be used in areas with limited weather exposure, such as covered areas or enclosures that are not fully weather-protected. It is designed for operating temperatures from -20 °C to 60 °C, with the refrigerant circuit operating actively between 3 °C and 60 °C. Storage temperature ranges from -40 °C to 70 °C. Temperature control is managed by an e+ controller, factory-set to +35 °C, with an adjustable range between 20 °C and 50 °C.
Functions and Equipment in Detail
The unit features a condenser with hydrophobic RiNano coating, which reduces condensation formation and simplifies maintenance. The delivery includes the cooling unit with mounting hardware and is pre-wired for connection, featuring a plug-in terminal strip. Air performance in free blow mode is 366.6 m³/h for both the external and internal circuits. Total cooling capacity according to DIN EN 14511 is 0.52 kW under L35 L35 operation (at 50 Hz and 60 Hz), and 0.32 kW under L35 L50 operation. Rated capacity is 0.36 kW.
Technology Explained Simply
The cooling unit operates with refrigerant R-513A, which has lower environmental impact. The refrigerant quantity is 0.16 kg, with a Global Warming Potential (GWP) of 631 and a CO₂ equivalent of 0.1 t. Energy efficiency is described by the coefficient of performance (EER) of 2.03 at 50 Hz and 60 Hz (L35 L35), indicating efficient cooling with moderate power consumption. The rated operating voltage is between 110 V and 240 V, 1~, and is designed for frequencies of 50 Hz and 60 Hz. Permissible voltage tolerance is 110 V -10 % (99 V) and 240 V +10 % (264 V). The permissible operating pressure is 32 bar.
Compatibility and Accessories
For remote monitoring and networking of Blue e+ generation cooling units, the IoT Interface with article number 3124.300 can be used. This enables monitoring of device data, statuses, and system messages to increase machine availability and process safety. Suitable accessories include a universal condensate collection bottle, SK condensate hose, door position switch, metal filters, filter mats, SK temperature sensor, and VX support roller.
Installation and Mounting
Mounting is done on the enclosure door or on a wall within the enclosure area. Required mounting cutouts are 280 mm (width) and 550 mm (height). The unit is pre-wired for connection, simplifying installation. The protection rating of the internal circuit is IP 55 according to EN 60 529, meaning it is dust-tight and protected against water spray. The NEMA protection rating corresponds to UL Type 1 and UL Type 12, providing protection against contact and water spray.
Operational Advantages
The cooling unit offers worldwide usability due to multi-voltage capability and country-specific certifications. Intelligent temperature control and remote monitoring via the IoT Interface enhance operational safety. The hydrophobic RiNano coating on the condenser reduces condensation and lowers maintenance effort. Energy efficiency leads to an average energy saving of 75 % and reduces the CO₂ footprint of the system. Convenient operation is enabled via the Rittal Scan & Service App.
| General | |
| Model | Wall surface mounted |
| Material | steel sheet |
| Basic colour | RAL 7035 |
| Colour | Housing: RAL 7035, louver grille: RAL 7012 |
| Scope of delivery | Condenser with hydrophobic RiNano coating, including mounting material, pre-wired for connection (pluggable terminal block) |
| Options | For remote monitoring and networking of cooling units and chillers from the Blue e+ generation, use the IoT interface with article number 3124.300. Increase machine availability and process safety by remotely monitoring device data, statuses and system messages. |
| Total cooling capacity according to DIN EN 14511 | Cooling capacity L35 L35/50 Hz: 0.52 kW, Cooling capacity L35 L35/60 Hz: 0.52 kW, Cooling capacity L35 L50/50 Hz: 0.32 kW, Cooling capacity L35 L50/60 Hz: 0.32 kW |
| Rated operating voltage | 110 V - 240 V, 1~, 50 Hz/60 Hz |
| Note | Please note the mounting instructions., By downloading the software, a contract is established between the contracting party and Rittal regarding the free use of the software according to these license terms., Only suitable for semi-outdoor use (see instruction manual for description) |
| Note on part number | Tolerance: 110 V -10 % (99 V) and 240 V +10 % (264 V) |
| Rated power | 0,36 kW |
| Air performance (free blowing) | External circuit: 366.6 m³/h, internal circuit: 366.6 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Cooling capacity factor L35 L35 (EER) 50 Hz: 2.03, Cooling capacity factor L35 L35 (EER) 60 Hz: 2.03 |
| Width | 300 mm |
| Height | 570 mm |
| Depth | 199 mm |
| Required mounting cutout | Cutout width: 280 mm, cutout height: 550 mm |
| Degree of protection IP according to EN 60 529 | Internal circuit IP 55 |
| NEMA degree of protection | UL Type 1, UL Type 12 |
| Refrigerant/cooling medium | Refrigerant: R-513A, quantity: 0.16 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 0.1 t |
| Temperature control | e+ Controller (factory setting +35 °C) |
| Operating temperature range | -20 °C...60 °C |
| Storage temperature range | -40 °C...70 °C |
| Operating temperature range refrigerant circuit (active) | 3 °C...60 °C |
| Operating temperature range heat pipe | -20 °C...45 °C |
| Adjustment range | 20 °C...50 °C |
| Rated power Pel | Rated power L35 L35/50 Hz: 0.26 kW, Rated power L35 L35/60 Hz: 0.26 kW, Rated power L35 L50/50 Hz: 0.31 kW, Rated power L35 L50/60 Hz: 0.31 kW |
| Permissible operating pressure (p max.) | 32 bar |
| PCF/VE (Cradle-to-Gate) | 227,1 |
