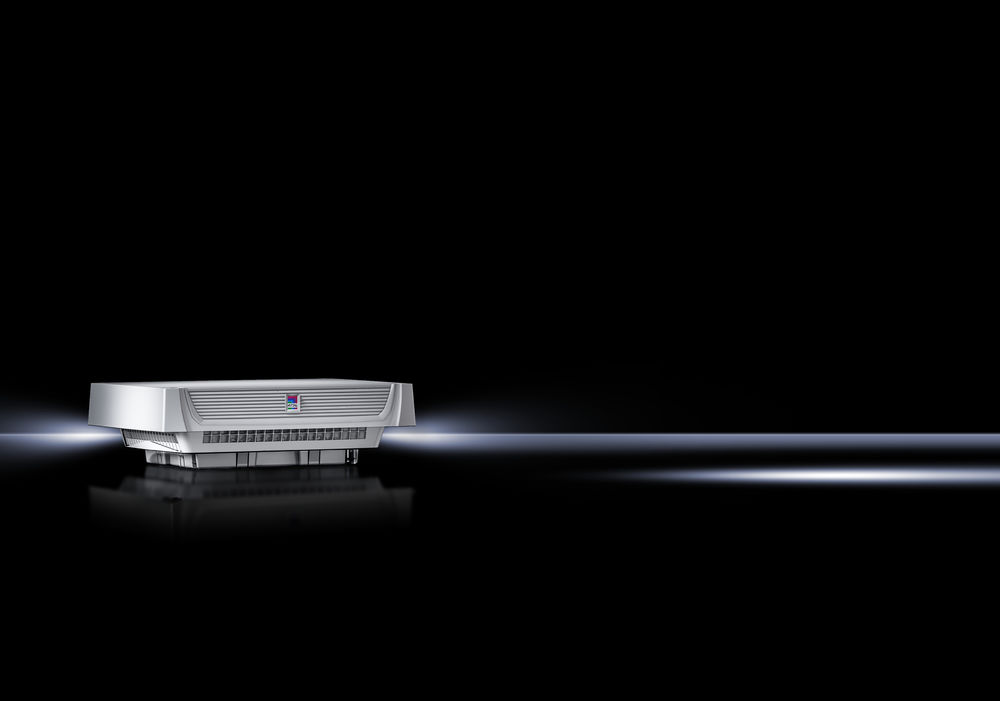

Rittal 3140100 SK TopTherm roof-mounted fan, 800 m³/h, 230 V, 1~, 50/60 Hz
|
405,44 EUR 422,22 EUR |
|
|
( 482,47 EUR incl. VAT ) ≈ £348.27 | ≈ $464.63 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Lieske Part No.: | 622172 |
|---|---|
| Mfg Part No: | 3140100 |
| UPC/EAN: | 4028177709140 |
| Weight: | 5.69 kg |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3140100:
Colour: RAL 7035
Protection category IP to IEC 60 529: IP 22 without filter mat IP 22 including filter mat
Supply includes: Complete unit ready to install, including filter mat
Note: For energy-efficient operation of the fans, we recommend the use of thermostats or temperature displays
Packs of: 1 pc(s).
EAN: 4028177709140
Customs tariff number: 84145100
eCl@ss 5.1: 27180707
eCl@ss 7.0: 27180716
ETIM 6.0: EC000320
Air throughput (unimpeded air flow): 873 m³/h
Air throughput, unimpeded air flow: without filter mats: 873 m³/h / 965 m³/h m³/h
with filter mats: 725 m³/h / 759 m³/h m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 400 mm
Height: 133 mm
Depth: 400 mm
Required mounting cut-out: Width: 258 mm
Depth: 258 mm
Installation depth: 34.6 mm
Temperature range: Bearing: -40°C...+70°C
Operation (environment): -30°C...+55°C
Power consumption Pel: At 50 Hz: 98 W
At 60 Hz: 130 W
Rated current (max.): At 50 Hz: 0.43 A
At 60 Hz: 0.56 A
Pre-fuse: Miniature circuit-breaker/fuse: 6 A
Diagonal fan: Radial, capacitor motor
Type: SK 3140100
Protection category IP to IEC 60 529: IP 22 without filter mat IP 22 including filter mat
Supply includes: Complete unit ready to install, including filter mat
Note: For energy-efficient operation of the fans, we recommend the use of thermostats or temperature displays
Packs of: 1 pc(s).
EAN: 4028177709140
Customs tariff number: 84145100
eCl@ss 5.1: 27180707
eCl@ss 7.0: 27180716
ETIM 6.0: EC000320
Air throughput (unimpeded air flow): 873 m³/h
Air throughput, unimpeded air flow: without filter mats: 873 m³/h / 965 m³/h m³/h
with filter mats: 725 m³/h / 759 m³/h m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 400 mm
Height: 133 mm
Depth: 400 mm
Required mounting cut-out: Width: 258 mm
Depth: 258 mm
Installation depth: 34.6 mm
Temperature range: Bearing: -40°C...+70°C
Operation (environment): -30°C...+55°C
Power consumption Pel: At 50 Hz: 98 W
At 60 Hz: 130 W
Rated current (max.): At 50 Hz: 0.43 A
At 60 Hz: 0.56 A
Pre-fuse: Miniature circuit-breaker/fuse: 6 A
Diagonal fan: Radial, capacitor motor
Type: SK 3140100
