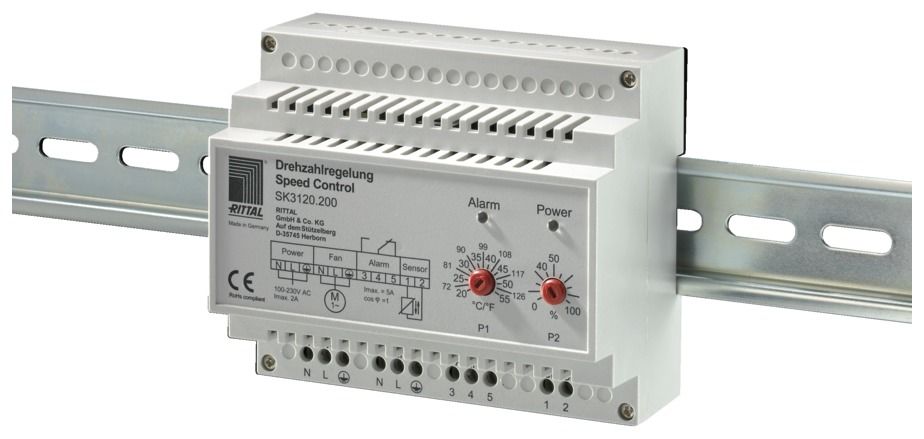

Rittal 3120200 SK Speed control, 100-230 V, WHD: 105x90.5x60.2 mm
|
-10% 147,89 EUR 164,97 EUR |
|
|
( 175,99 EUR incl. VAT ) ≈ £127.04 | ≈ $169.48 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 320297 |
|---|---|
| Mfg Part No: | 3120200 |
| UPC/EAN: | 4028177631441 |
| Weight: | 0.39 kg |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3120200:
Temperature-dependent speed control for TopTherm fan-and-filter units and air/air heat exchangers for noise reduction and to save energy in part-load operation.
Technical specifications: For mounting on a 35 mm support rail EN 50 022
Phase cross-over with microcontroller
Maximum fan output 300 W or 2 A
Supply includes: Speed control
NTC sensor, length 1.80 m
Note: Only suitable for use with single-phase AC motors and equipment
Not suitable for EC motors
Packs of: 1 pc(s).
EAN: 4028177631441
Customs tariff number: 90291000
eCl@ss 5.1: 27180792
eCl@ss 7.0: 27210707
ETIM 6.0: EC000256
Rated operating voltage: 100 V - 230 V
Dimensions: Width: 105 mm
Height: 90.5 mm
Depth: 60.2 mm
Temperature range: Setting range: +20°C...+55°C
Speed: 100 %
Weight/pack: 0.36 kg
Type: SK 3120200
Technical specifications: For mounting on a 35 mm support rail EN 50 022
Phase cross-over with microcontroller
Maximum fan output 300 W or 2 A
Supply includes: Speed control
NTC sensor, length 1.80 m
Note: Only suitable for use with single-phase AC motors and equipment
Not suitable for EC motors
Packs of: 1 pc(s).
EAN: 4028177631441
Customs tariff number: 90291000
eCl@ss 5.1: 27180792
eCl@ss 7.0: 27210707
ETIM 6.0: EC000256
Rated operating voltage: 100 V - 230 V
Dimensions: Width: 105 mm
Height: 90.5 mm
Depth: 60.2 mm
Temperature range: Setting range: +20°C...+55°C
Speed: 100 %
Weight/pack: 0.36 kg
Type: SK 3120200
