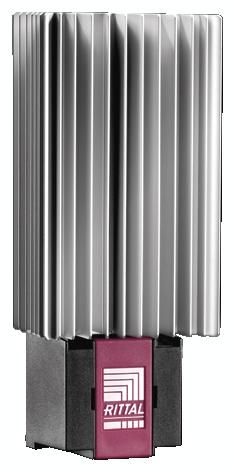

Rittal 3105330 SK Enclosure heater, 23-30 W, 110-240 V, 1~, 50/60 Hz, WHD: 64x155x56 mm
|
59,09 EUR 61,53 EUR |
|
|
( 70,32 EUR incl. VAT ) ≈ £50.76 | ≈ $67.72 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Lieske Part No.: | 998970 |
|---|---|
| Mfg Part No: | 3105330 |
| UPC/EAN: | 4028177638631 |
| Weight: | 0.382 kg |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3105330:
Supply includes: PTC heater
Quick-connection terminal
Assembly parts
Note: For precise temperature control inside the enclosure, we recommend the enclosure internal thermostat or the digital enclosure internal temperature display and thermostat.
In order to prevent condensation on assemblies, a hygrostat is recommended to regulate heating.
In larger enclosures, even heat distribution is best achieved by installing several low-output heaters.
The installation of heaters is generally advisable, in order to prevent condensation.
Note on Model No.: Special voltages available on request. We reserve the right to make technical modifications.
Packs of: 1 pc(s).
EAN: 4028177638631
Customs tariff number: 85162999
eCl@ss 5.1: 27180710
eCl@ss 7.0: 27180710
ETIM 6.0: EC000737
Continuous thermal output at 10°C: 23 W - 30 W
Rated operating voltage: 110 V - 240 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 64 mm
Height: 155 mm
Depth: 56 mm
Pre-fuse: Miniature circuit-breaker/fuse: 4 A
Weight/pack: 0.38 kg
Type: SK 3105330
Quick-connection terminal
Assembly parts
Note: For precise temperature control inside the enclosure, we recommend the enclosure internal thermostat or the digital enclosure internal temperature display and thermostat.
In order to prevent condensation on assemblies, a hygrostat is recommended to regulate heating.
In larger enclosures, even heat distribution is best achieved by installing several low-output heaters.
The installation of heaters is generally advisable, in order to prevent condensation.
Note on Model No.: Special voltages available on request. We reserve the right to make technical modifications.
Packs of: 1 pc(s).
EAN: 4028177638631
Customs tariff number: 85162999
eCl@ss 5.1: 27180710
eCl@ss 7.0: 27180710
ETIM 6.0: EC000737
Continuous thermal output at 10°C: 23 W - 30 W
Rated operating voltage: 110 V - 240 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 64 mm
Height: 155 mm
Depth: 56 mm
Pre-fuse: Miniature circuit-breaker/fuse: 4 A
Weight/pack: 0.38 kg
Type: SK 3105330
Questions & answers
What is the delivery time of Rittal 3105330 SK Enclosure heater, 23-30 W, 110-240 V, 1~, 50/60 Hz, WHD: 64x155x56 mm?
The article Rittal 3105330 SK Enclosure heater, 23-30 W, 110-240 V, 1~, 50/60 Hz, WHD: 64x155x56 mm is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3105330 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3105330 SK Enclosure heater, 23-30 W, 110-240 V, 1~, 50/60 Hz, WHD: 64x155x56 mm always at the best possible price. We can give you a discount of 2% on Rittal 3105330 SK Enclosure heater, 23-30 W, 110-240 V, 1~, 50/60 Hz, WHD: 64x155x56 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
