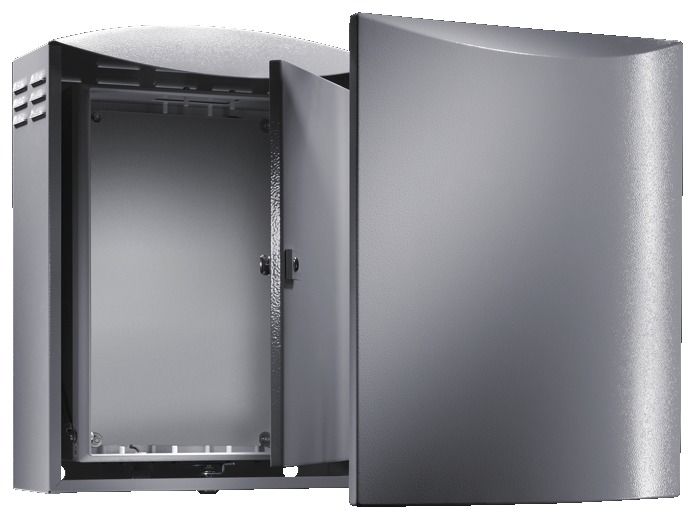

Rittal 9791025 CS Wall-mounted enclosure, WHD: 420x560x210 mm, aluminum, with mounting plate, Enclosure-within-an-enclosure concept
|
-6% 651,82 EUR 693,73 EUR |
|
|
( 775,67 EUR incl. VAT ) ≈ £559.91 | ≈ $746.99 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 945886 |
|---|---|
| Mfg Part No: | 9791025 |
| UPC/EAN: | 4028177193703 |
| Weight: | 9.5 kg |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 9791025:
Outdoor enclosures for wall or pole mounting. Enclosure-within-an-enclosure concept, outer enclosure with cut-out in the bottom and integrated louvres on the rear panel and side panels for ventilation.
Material: Enclosure: Aluminium AlMg3
Mounting plate: Aluminium, 2 mm
Surface finish: Enclosure: Powder-coated, UV-resistant pure polyester
Mounting plate: Clear chromated
Colour: RAL 7035
Protection category IP to IEC 60 529: IP 55
Supply includes: Double-walled outdoor enclosure, fully preconfigured
Inner enclosure with mounting plate, gland plate and security lock
Mounting bracket for enclosure internal thermostat or hygrostat
Outer enclosure with designer cover and security lock 3524 E
2 C rails on the rear panel
Note: Extended delivery times.
Packs of: 1 pc(s).
EAN: 4028177193703
Customs tariff number: 94032080
eCl@ss 5.1: 27180302
eCl@ss 7.0: 27180101
ETIM 6.0: EC000261
Dimensions: Width: 420 mm
Height: 560 mm
Depth: 210 mm
Clearances: Clearance width: 330 mm
Clearance height: 420 mm
Clearance depth: 145 mm
Mounting plate: Width: 320 mm
Height: 410 mm
Inner enclosure: Width: 350 mm
Height: 440 mm
Depth: 170 mm
Weight/pack: 9.5 kg
Type: CS 9791025
Material: Enclosure: Aluminium AlMg3
Mounting plate: Aluminium, 2 mm
Surface finish: Enclosure: Powder-coated, UV-resistant pure polyester
Mounting plate: Clear chromated
Colour: RAL 7035
Protection category IP to IEC 60 529: IP 55
Supply includes: Double-walled outdoor enclosure, fully preconfigured
Inner enclosure with mounting plate, gland plate and security lock
Mounting bracket for enclosure internal thermostat or hygrostat
Outer enclosure with designer cover and security lock 3524 E
2 C rails on the rear panel
Note: Extended delivery times.
Packs of: 1 pc(s).
EAN: 4028177193703
Customs tariff number: 94032080
eCl@ss 5.1: 27180302
eCl@ss 7.0: 27180101
ETIM 6.0: EC000261
Dimensions: Width: 420 mm
Height: 560 mm
Depth: 210 mm
Clearances: Clearance width: 330 mm
Clearance height: 420 mm
Clearance depth: 145 mm
Mounting plate: Width: 320 mm
Height: 410 mm
Inner enclosure: Width: 350 mm
Height: 440 mm
Depth: 170 mm
Weight/pack: 9.5 kg
Type: CS 9791025
