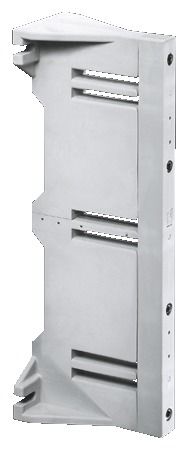

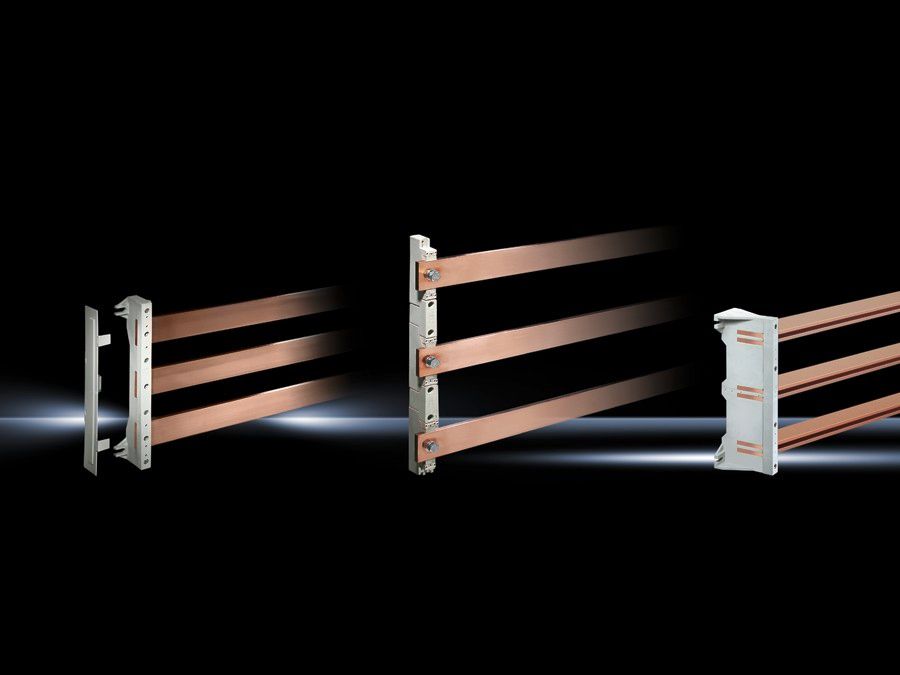

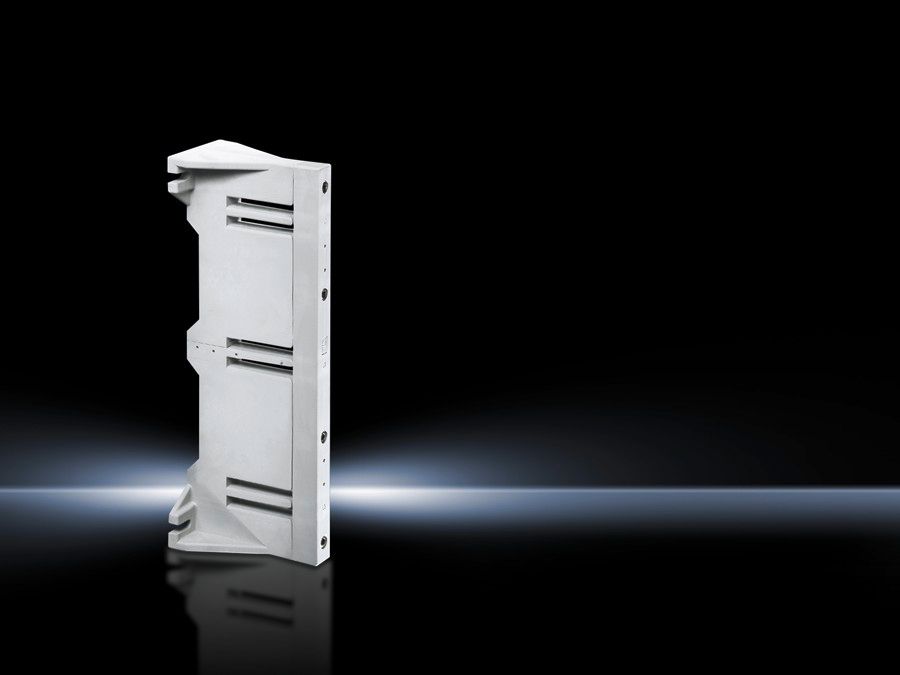

Rittal 3055000 SV Busbar support, 3-pole, 150 mm bar centre distance, for busbar WH: 80x10 mm
|
-12% 127,08 EUR 144,68 EUR |
|
|
( 151,23 EUR incl. VAT ) ≈ £107.89 | ≈ $143.22 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 764233 |
| Mfg Part No: | 3055000 |
| UPC/EAN: | 4028177035782 |
| Weight: | 4.503 kg |
| Type: | SV 3055000 |
Product information for Rittal 3055000:
Fire protection corresponding to UL 94-V0
Colour: RAL 7035
Packs of: 2 pc(s).
EAN: 4028177035782
Customs tariff number: 85469010
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27400613
ETIM 6.0: EC001166
To fit busbars: Type: Busbar E-Cu
with cross-section width: 60 mm
with cross-section width: 80 mm
with cross-section height: 10 mm
with cross-section height: 10 mm
Number of poles: 3-pole
Centre-to-centre spacing of busbars: 150 mm
Number of E-Cu busbars per conductor: max.: 2
Dimensions: Width: 30 mm
Height: 420 mm
Depth: 160 mm
Rated current (max.): 2500 A
Weight/pack: 4.54 kg
Questions & answers
What is the delivery time of Rittal 3055000 SV Busbar support, 3-pole, 150 mm bar centre distance, for busbar WH: 80x10 mm?
The article Rittal 3055000 SV Busbar support, 3-pole, 150 mm bar centre distance, for busbar WH: 80x10 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3055000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3055000 SV Busbar support, 3-pole, 150 mm bar centre distance, for busbar WH: 80x10 mm always at the best possible price. We can give you a discount of 2% on Rittal 3055000 SV Busbar support, 3-pole, 150 mm bar centre distance, for busbar WH: 80x10 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
