Rittal 2744010 command panel, 597x377x36 mm, for mounting on AX instead

Your rating:
Average rating
product review for Rittal 2744010 command panel, 597x377x36 mm, for mounting on AX instead
( 4.3 / 5 ) 8 ratings
Rittal 2744010
This image may differ from the desired article.
Rittal 2744010Rittal 2744010Rittal 2744010
125,70 EUR 126,96 EUR
( 149,58 EUR incl. VAT )
≈ £105.21  |  ≈ $138.14
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 2744010 command panel, 597x377x36 mm, for mounting on AX instead
Datasheet:file_download Download
Lieske Part No.:1593454
Mfg Part No: 2744010
UPC/EAN: 4028177938540
Weight:3.331 kg
Type:AX 2744010

Product information for Rittal 2744010:

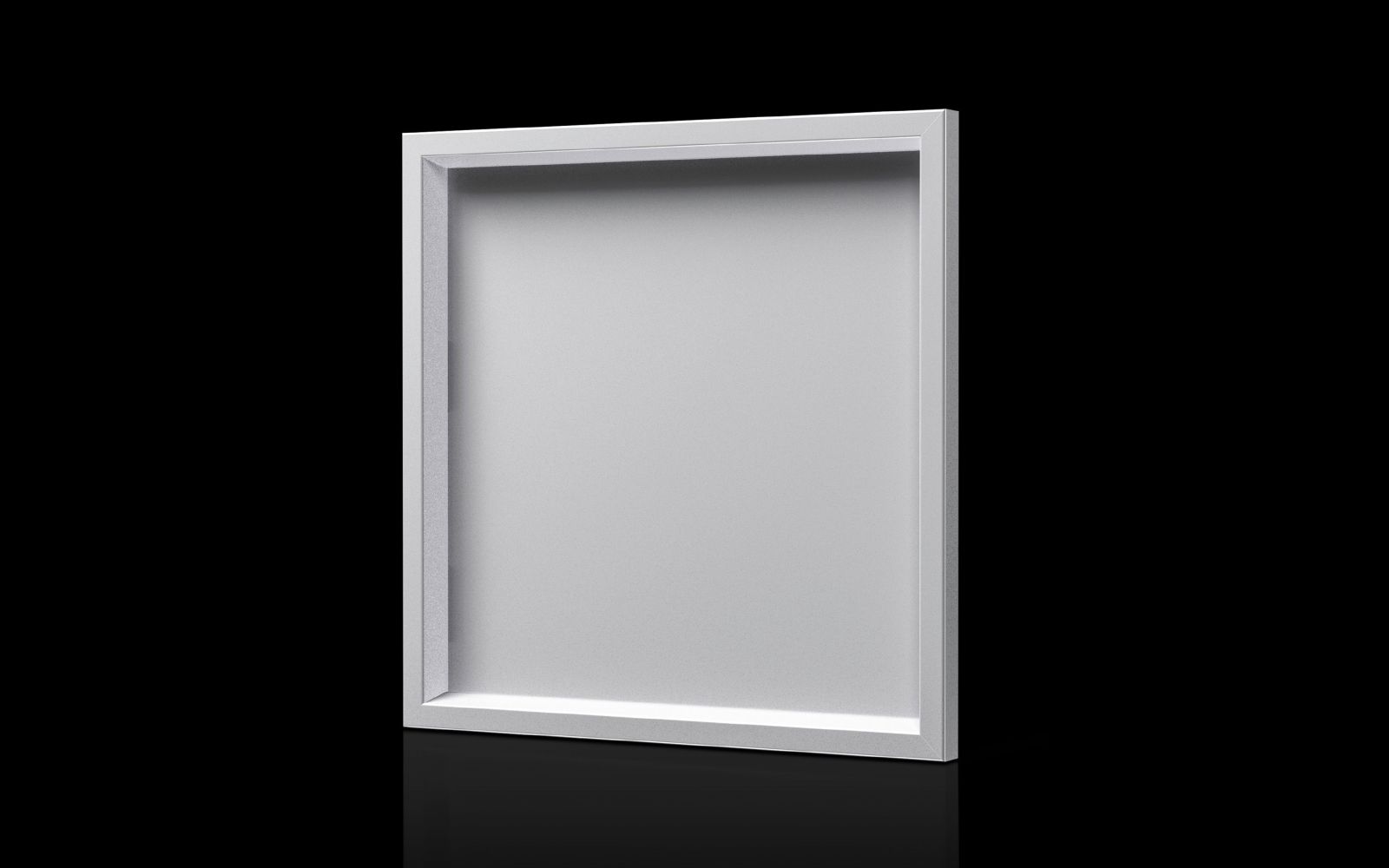

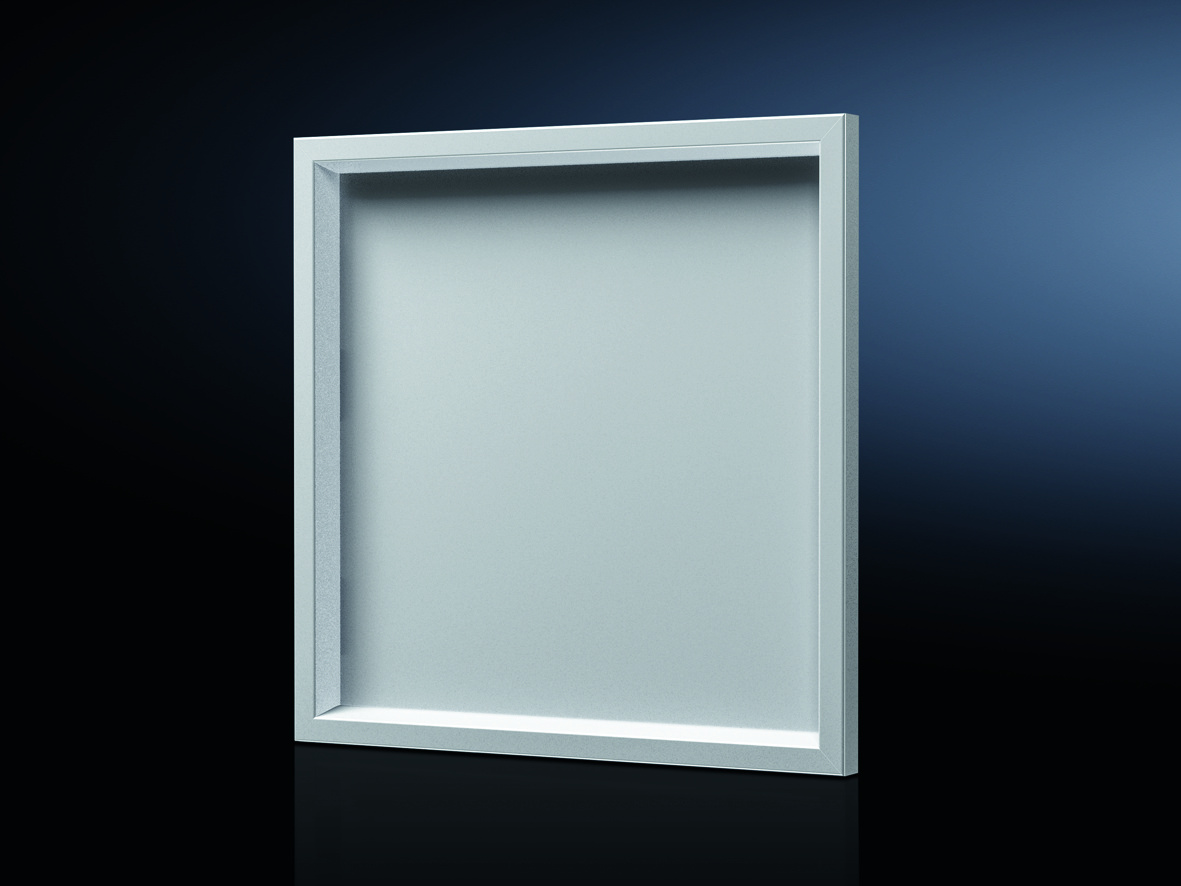

The Rittal AX 2744010 is an operator panel made of aluminium, naturally anodized, specifically developed for use with AX enclosures. It serves as a replacement for a standard door or as a mounting surface on free areas, enabling the integration of control elements, indicators, or control devices directly on the front side of the enclosure. The panel is designed as a frame construction, with a 3 mm thick aluminium plate mounted from the inside, providing a stable and easily accessible mounting surface. Dimensions are 597 mm (width) × 377 mm (height) × 36 mm (depth), with a usable mounting area of 527 mm (width) × 307 mm (height). The aluminium plate itself measures 543 mm (width) × 323 mm (height). The construction is designed for enclosures with a minimum width of 600 mm and a minimum height of 380 mm, and is compatible with enclosure types 1009.000, 1039.000, and 1339.000.

Applications
The operator panel is primarily used in industrial plants where direct operation or indication on the front side of the enclosure is required. It can be mounted in place of a door to improve accessibility to control or monitoring elements, or used as an additional mounting surface on existing enclosures. Mounting on free surfaces allows flexible integration into existing installations or during expansion of enclosures. The protection rating IP 54 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for use in industrial environments where some contamination or moisture exposure is expected.

Functions and Equipment in Detail
The panel consists of an aluminium frame, a panel plate, hinges, and retaining brackets, all included in the delivery scope. The hinges allow secure attachment to the enclosure front, while the retaining brackets support the mounting of the plate within the frame. The 3 mm thick aluminium plate provides a stable base for mounting switches, indicators, keyboards, or other control elements. The naturally anodized surface ensures high corrosion resistance and a uniform, neutral visual appearance, which blends well in industrial environments.

Technology Explained Simply
The frame construction of the panel is designed so that the aluminium plate is mounted from the inside, enabling secure and rear-accessible mounting. The dimensions are chosen to match the standard sizes of AX enclosures, with the usable mounting area large enough to accommodate multiple control elements side by side. The IP 54 protection rating means the panel is protected against dust and splashing water, making it suitable for use in production halls, workshops, or other industrial environments. The choice of aluminium ensures sufficient strength while keeping weight low.

Compatibility and Accessories
The operator panel is specifically designed for AX enclosures with a minimum width of 600 mm and a minimum height of 380 mm. It is compatible with enclosure types 1009.000, 1039.000, and 1339.000. Suitable accessories, such as the AX latch lock with double-barrel lock insert (article number 2749100), enable secure and lockable mounting of the panel on the enclosure front.

Mounting and Installation
Mounting is done using the hinges and retaining brackets included in the delivery scope. The hinges are attached to the enclosure front, while the retaining brackets fix the aluminium plate within the frame. The mounting is done from the inside, which allows for a clean and aesthetically pleasing front side. Installation requires no additional tools or components, except for the optional latch lock if the panel is mounted in place of a door.

Operational Advantages
The operator panel provides a clear and accessible control surface directly integrated on the front side of the enclosure. The IP 54 protection rating ensures high reliability in industrial environments. The use of aluminium ensures long service life and resistance to corrosion. The modular construction allows flexible adaptation to various requirements, whether mounting individual switches or more complex control panels. Compatibility with the specified AX enclosure types facilitates integration into existing systems.

General
MaterialAluminium, natural anodized
Scope of deliveryAluminium frame, panel board, hinges, mounting brackets
Degree of protection IP according to EN 60 529IP 54
Suitable for part no.1009.000, 1039.000, 1339.000
NoteWhen installed instead of door, pre-drilled lock is required
Suitable forenclosure type: AX, width: = 600 mm, height: = 380 mm
Width597 mm
Height377 mm
Depth36 mm
Aluminium plate dimensionsWidth: 543 mm, Height: 323 mm
Populatable areaWidth: 527 mm, Height: 307 mm


Product data sheet
Datasheet for Rittal 2744010, EAN: 4028177938540

Questions & answers

What is the delivery time of Rittal 2744010 command panel, 597x377x36 mm, for mounting on AX instead?

The article Rittal 2744010 command panel, 597x377x36 mm, for mounting on AX instead is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2744010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2744010 command panel, 597x377x36 mm, for mounting on AX instead always at the best possible price. We can give you a discount of 2% on Rittal 2744010 command panel, 597x377x36 mm, for mounting on AX instead if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
