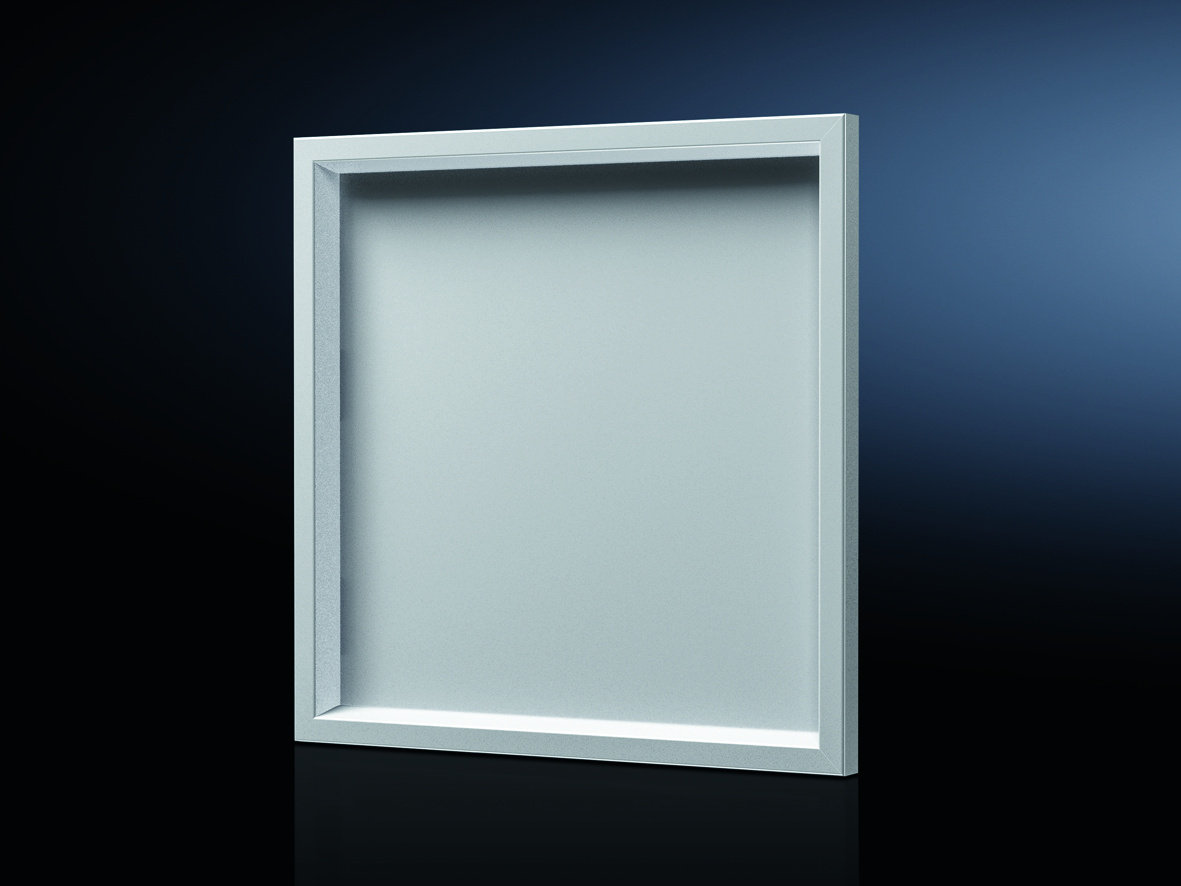

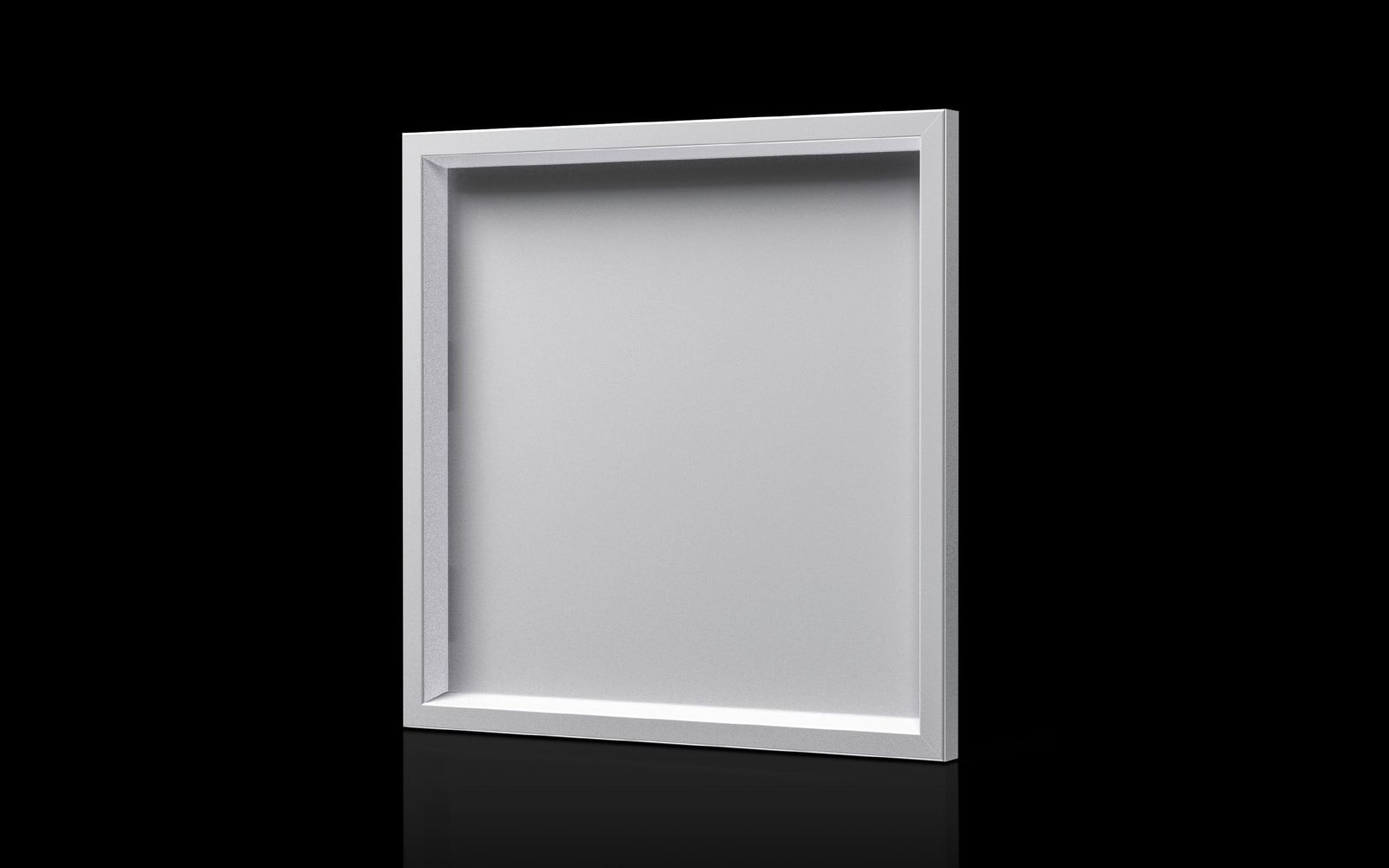

Rittal 2742010 command panel, 377x377x36 mm, for mounting on AX instead

Your rating:
Average rating
product review for Rittal 2742010 command panel, 377x377x36 mm, for mounting on AX instead
( 4.5 / 5 ) 8 ratings
Rittal 2742010
This image may differ from the desired article.
Rittal 2742010Rittal 2742010Rittal 2742010
111,67 EUR
( 132,89 EUR incl. VAT )
≈ £93.47  |  ≈ $122.73
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 4 pieces
1x Rittal 2742010 command panel, 377x377x36 mm, for mounting on AX instead
Datasheet:file_download Download
Lieske Part No.:1593456
Mfg Part No: 2742010
UPC/EAN: 4028177938526
Weight:2.54 kg
Type:AX 2742010

Product information for Rittal 2742010:

The Rittal AX 2742010 is an FT control panel for use with AX enclosures. It serves as a replacement for a standard door or as a mounting surface on flat surfaces, enabling the installation of control elements, indicators, or control devices directly on the enclosure. The panel consists of an aluminium frame with a 3 mm thick, natural anodized aluminium plate mounted from the inside. The construction is designed for secure and stable mounting and provides a protection rating IP 54 in accordance with EN 60 529, ensuring protection against dust and splashing water, and allowing use in indoor environments and slightly damp conditions.

Applications
This control panel is specifically designed for AX enclosures with a minimum width and height of 380 mm. It is mounted in place of the door, enabling the front surface of the enclosure to be used for integrating control elements. The panel dimensions are 377 mm (width) × 377 mm (height) × 36 mm (depth), with a usable mounting area of 307 mm × 307 mm. The aluminium plate itself measures 323 mm × 323 mm. These dimensions ensure optimal fit and secure seating within the enclosure.

Functions and Equipment in Detail
The delivery includes the aluminium frame, the panel plate, hinges, and retaining brackets. The hinges allow for secure and pivotable mounting, while the retaining brackets support fixation within the enclosure. The natural anodized surface of the aluminium offers high corrosion resistance and a uniform, neutral tone that blends well in industrial environments. The 3 mm thick plate provides sufficient stability to securely mount control elements such as pushbuttons, indicators, or small displays.

Technology Explained Simply
The frame construction with integrated corners and the internally mounted aluminium sheet ensure a robust and maintenance-free installation. The IP 54 protection rating safeguards against dust and splashing water, making the panel suitable for use in production halls, workshops, or other industrial environments. The dimensions are chosen to be compatible with standard AX enclosures with article numbers 1006.000, 1303.000, and 1380.000. The depth of 36 mm allows for a shallow installation, minimizing space requirements within the enclosure.

Compatibility and Accessories
The panel is designed for AX enclosures with a minimum width and height of 380 mm. It is specifically intended for article numbers 1006.000, 1303.000, and 1380.000. When mounted in place of the door, a latch lock (article number 2749100) is required to ensure the safety and protection of the enclosure. This lock provides secure latching and is essential accessory for use as a replacement door.

Installation and Mounting
Mounting is achieved by securing the frame to the designated retaining brackets inside the enclosure. The hinges allow for pivotable attachment, enabling the panel to be opened and closed. The aluminium plate is mounted from the inside, allowing for secure and clean installation of control elements. Installation requires no additional tools or components beyond the necessary lock when replacing the door.

Operational Advantages
The control panel offers a flexible and secure way to integrate control elements directly onto the enclosure. The IP 54 protection rating ensures reliable operation in industrial environments. The robust aluminium construction and precise fit ensure long service life and easy maintenance. The combination of functionality and design makes the panel a practical solution for operating machines and systems.

General
MaterialAluminium, natural anodized
Scope of deliveryAluminium frame, panel board, hinges, mounting brackets
Degree of protection IP according to EN 60 529IP 54
Suitable for part no.1006.000, 1303.000, 1380.000
NoteWhen installed instead of door, pre-drilled lock is required
Suitable forEnclosure type: AX, width: = 380 mm, height: = 380 mm
Width377 mm
Height377 mm
Depth36 mm
Aluminium plate dimensionsWidth: 323 mm, height: 323 mm
Populatable areaWidth: 307 mm, Height: 307 mm


Product data sheet
Datasheet for Rittal 2742010, EAN: 4028177938526

Questions & answers

What is the delivery time of Rittal 2742010 command panel, 377x377x36 mm, for mounting on AX instead?

The article Rittal 2742010 command panel, 377x377x36 mm, for mounting on AX instead is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2742010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2742010 command panel, 377x377x36 mm, for mounting on AX instead always at the best possible price. We can give you a discount of 2% on Rittal 2742010 command panel, 377x377x36 mm, for mounting on AX instead if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
