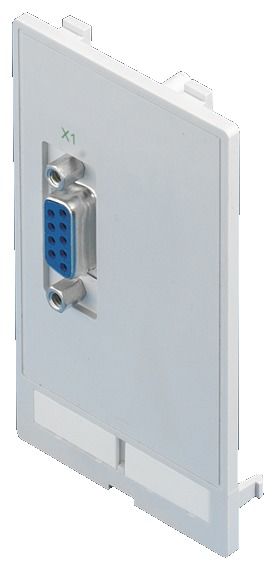

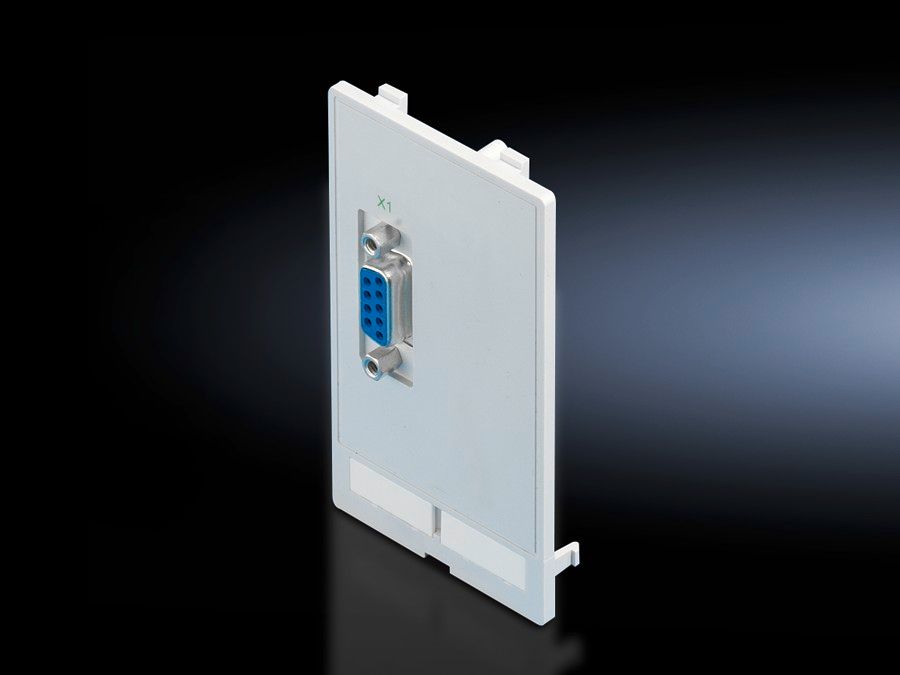

Rittal 2482510 SZ Interface flap, modular, interface inserts, SUB-D9, jack/pin
|
24,27 EUR |
|
|
( 28,88 EUR incl. VAT ) ≈ £20.53 | ≈ $27.13 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 310595 |
| Mfg Part No: | 2482510 |
| UPC/EAN: | 4028177490758 |
| Weight: | 0.051 kg |
| Type: | SZ 2482510 |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 2482510:
For universal use in all situations where rapid access to interfaces and sockets is needed. The affected enclosure remains closed and is therefore protected from ambient influences and unauthorised access.
Function principle: The mounting frame has a flap which snaps into position in various stages at opening angles of 90 to 180°.
A snap fastener ensures reliable sealing. This may be locked if required.
All SUB-D interfaces may be rotated while in use
Material: Mounting frame and metal flap: Fine die-cast zinc
Plastic flap: Polycarbonate (semi-transparent)
Lock: Polycarbonate
Surface finish: Mounting frame and metal flap: Matt nickel-plated
Colour: Lock: RAL 7024
Screw terminals: yellow (RAL 1016)
Protection category IP to IEC 60 529: IP 65 with sealed flap and proper assembly
Packs of: 1 pc(s).
EAN: 4028177490758
Customs tariff number: 85369085
eCl@ss 5.1: 27189238
eCl@ss 7.0: 27189234
ETIM 6.0: EC002625
Design: Interface insert SUB-D9 (jack/jack)
Installation options: As programming interface for controllers
As maintenance access for networks
For temporary connection of additional equipment
For quick connection to existing network structures
For programming and maintenance of integral components
Weight/pack: 0.06 kg
Function principle: The mounting frame has a flap which snaps into position in various stages at opening angles of 90 to 180°.
A snap fastener ensures reliable sealing. This may be locked if required.
All SUB-D interfaces may be rotated while in use
Material: Mounting frame and metal flap: Fine die-cast zinc
Plastic flap: Polycarbonate (semi-transparent)
Lock: Polycarbonate
Surface finish: Mounting frame and metal flap: Matt nickel-plated
Colour: Lock: RAL 7024
Screw terminals: yellow (RAL 1016)
Protection category IP to IEC 60 529: IP 65 with sealed flap and proper assembly
Packs of: 1 pc(s).
EAN: 4028177490758
Customs tariff number: 85369085
eCl@ss 5.1: 27189238
eCl@ss 7.0: 27189234
ETIM 6.0: EC002625
Design: Interface insert SUB-D9 (jack/jack)
Installation options: As programming interface for controllers
As maintenance access for networks
For temporary connection of additional equipment
For quick connection to existing network structures
For programming and maintenance of integral components
Weight/pack: 0.06 kg
