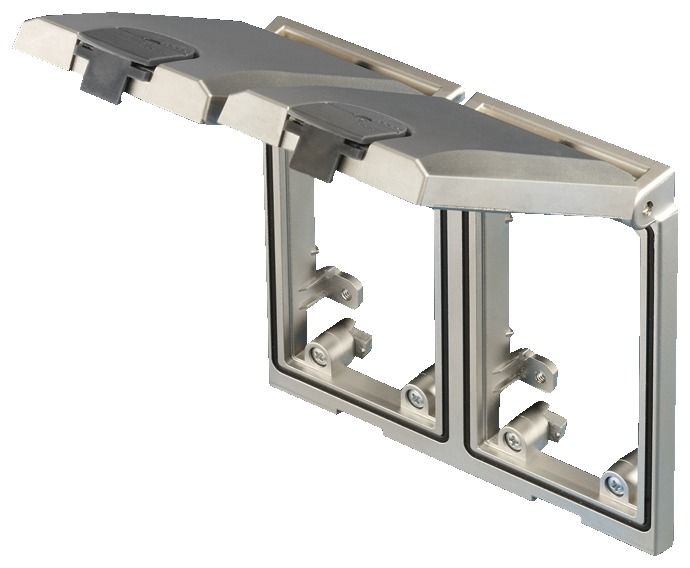

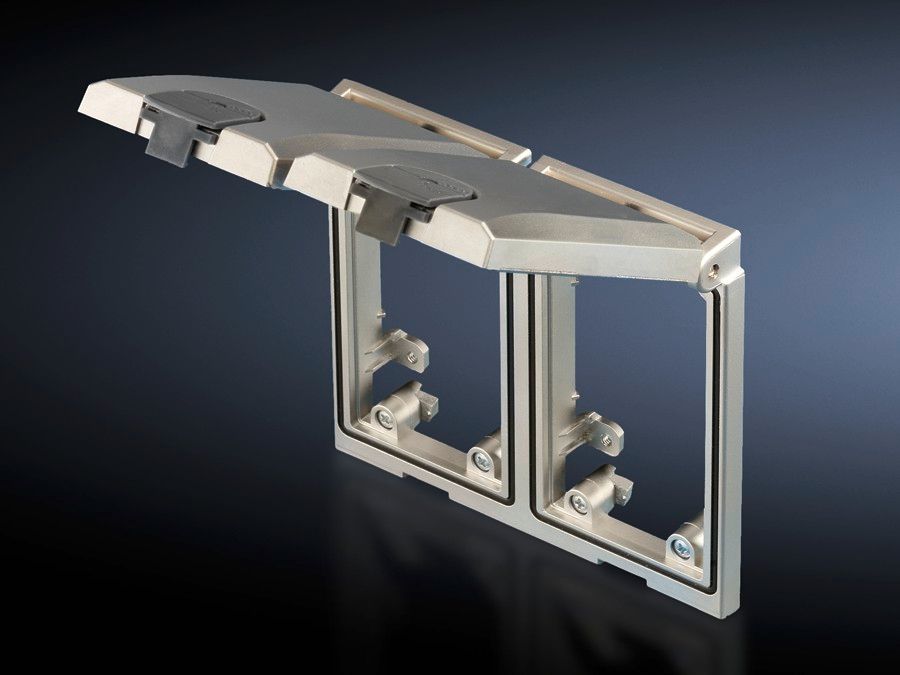

Rittal 2482330 SZ Interface flap, modular, mounting frame, double, with metal flap

Your rating:
Average rating
Rating for Rittal 2482330 SZ Interface flap, modular, mounting frame, double, with metal flap
( 4.6 / 5 ) 71 ratings
Rittal 2482330
This image may differ from the desired article.
-7% 46,42 EUR 49,67 EUR
( 55,24 EUR incl. VAT )
2025-09-13Delivery time on requestinfo_outline
1x Rittal 2482330 SZ Interface flap, modular, mounting frame, double, with metal flap
Lieske Part No.:446981
Mfg Part No: 2482330
UPC/EAN: 4028177490680
Weight:0 kg
Graduated prices net
From piecesPrice per pieces
1045,72 EUR
2545,03 EUR
5044,33 EUR
7543,63 EUR

Product information for Rittal 2482330:

For universal use in all situations where rapid access to interfaces and sockets is needed. The affected enclosure remains closed and is therefore protected from ambient influences and unauthorised access.
Function principle: The mounting frame has a flap which snaps into position in various stages at opening angles of 90 to 180°.
A snap fastener ensures reliable sealing. This may be locked if required.
All SUB-D interfaces may be rotated while in use
Material: Mounting frame and metal flap: Fine die-cast zinc
Plastic flap: Polycarbonate (semi-transparent)
Lock: Polycarbonate
Surface finish: Mounting frame and metal flap: Matt nickel-plated
Colour: Lock: RAL 7024
Screw terminals: yellow (RAL 1016)
Protection category IP to IEC 60 529: IP 65 with sealed flap and proper assembly
Packs of: 1 pc(s).
EAN: 4028177490680
Customs tariff number: 85369085
eCl@ss 5.1: 27189238
eCl@ss 7.0: 27189234
ETIM 6.0: EC002625

Design: Mounting frame, double, with metal flap
Note: Electrically conductive
Installation options: As programming interface for controllers
As maintenance access for networks
For temporary connection of additional equipment
For quick connection to existing network structures
For programming and maintenance of integral components
Weight/pack: 0.62 kg
Type: SZ 2482.330
