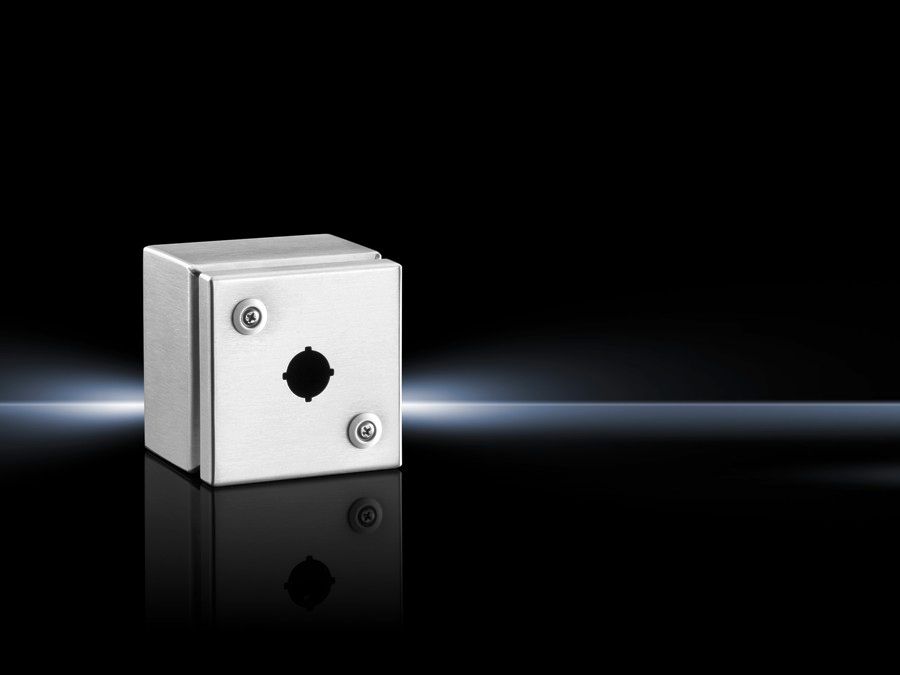

Rittal 2384010 SM Switch housing, WHD: 100x100x90 mm, Stainless steel 1.4301, without mounting plate, 1 switch cut-out
|
95,09 EUR 99,02 EUR |
|
|
( 113,16 EUR incl. VAT ) ≈ £81.59 | ≈ $110.21 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: 5 pieces | |
| Lieske Part No.: | 228744 |
|---|---|
| Mfg Part No: | 2384010 |
| UPC/EAN: | 4028177529403 |
| Weight: | 0.123 kg |
Product information for Rittal 2384010:
Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal
Surface finish: Enclosure and cover: Brushed, grain 240
Protection category IP to IEC 60 529: IP 66
Protection category NEMA: NEMA 4X
Supply includes: Enclosure with cover
Quick-release fasteners
Packs of: 1 pc(s).
EAN: 4028177529403
Customs tariff number: 94039010
eCl@ss 5.1: 27180102
eCl@ss 7.0: 27180101
ETIM 6.0: EC000200
Dimensions: Width: 100 mm
Height: 100 mm
Depth: 90 mm
Material thickness: Enclosure: 1.25 mm
Cover: 1.25 mm
No. of switch cut-outs Ø 22.5 mm: 1
Number of quick-release fasteners: 2
Lock version: Quick-release fastener including plastic bushes
Number of locks: 2
Weight/pack: 0.4 kg
Type: SM 2384010
