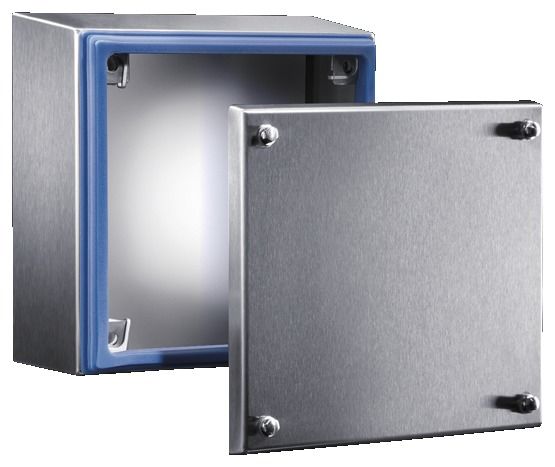

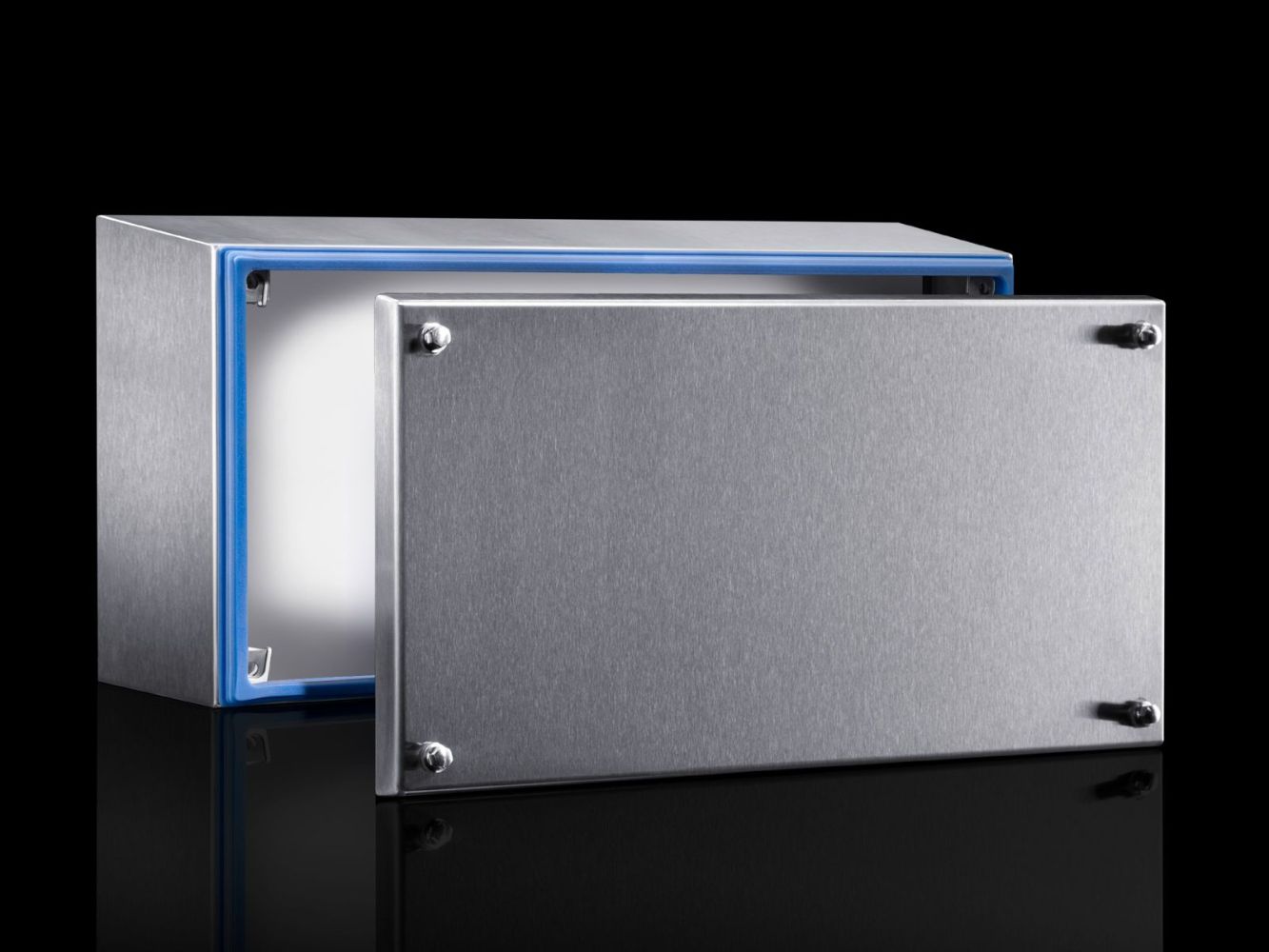

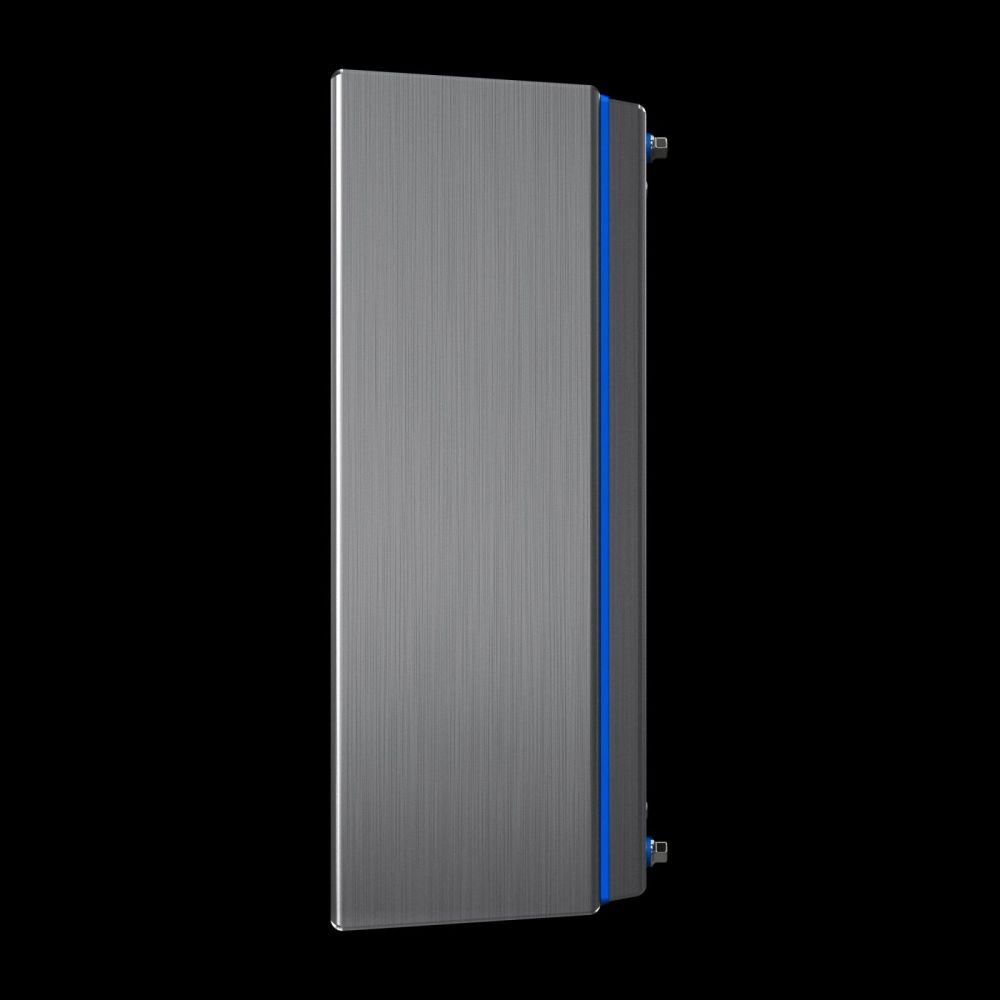

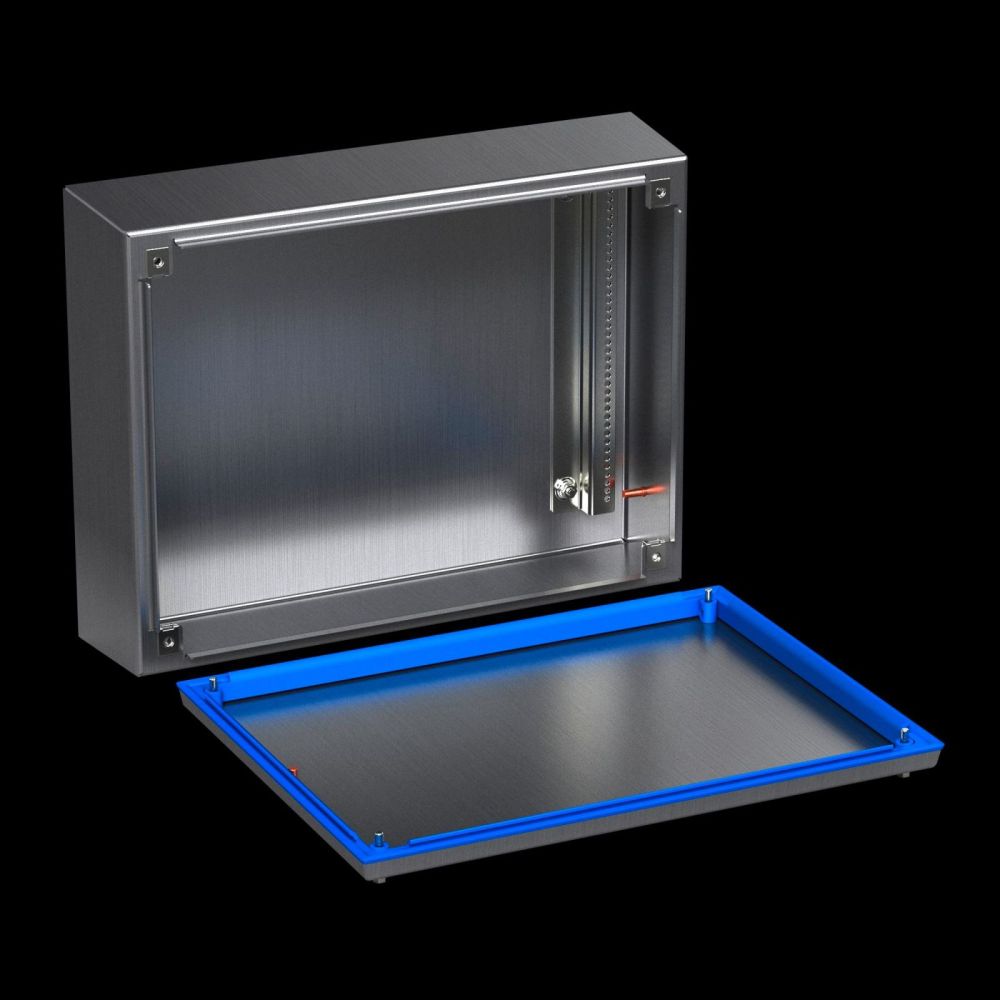

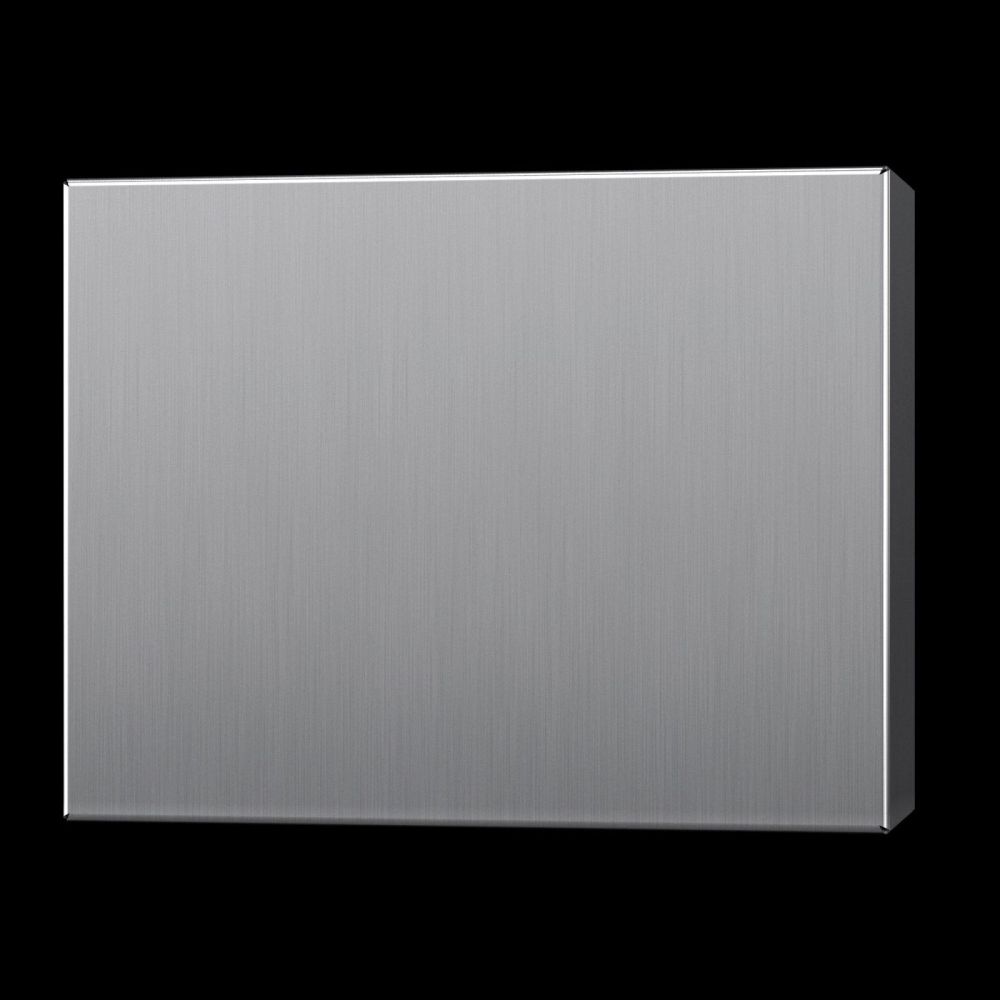

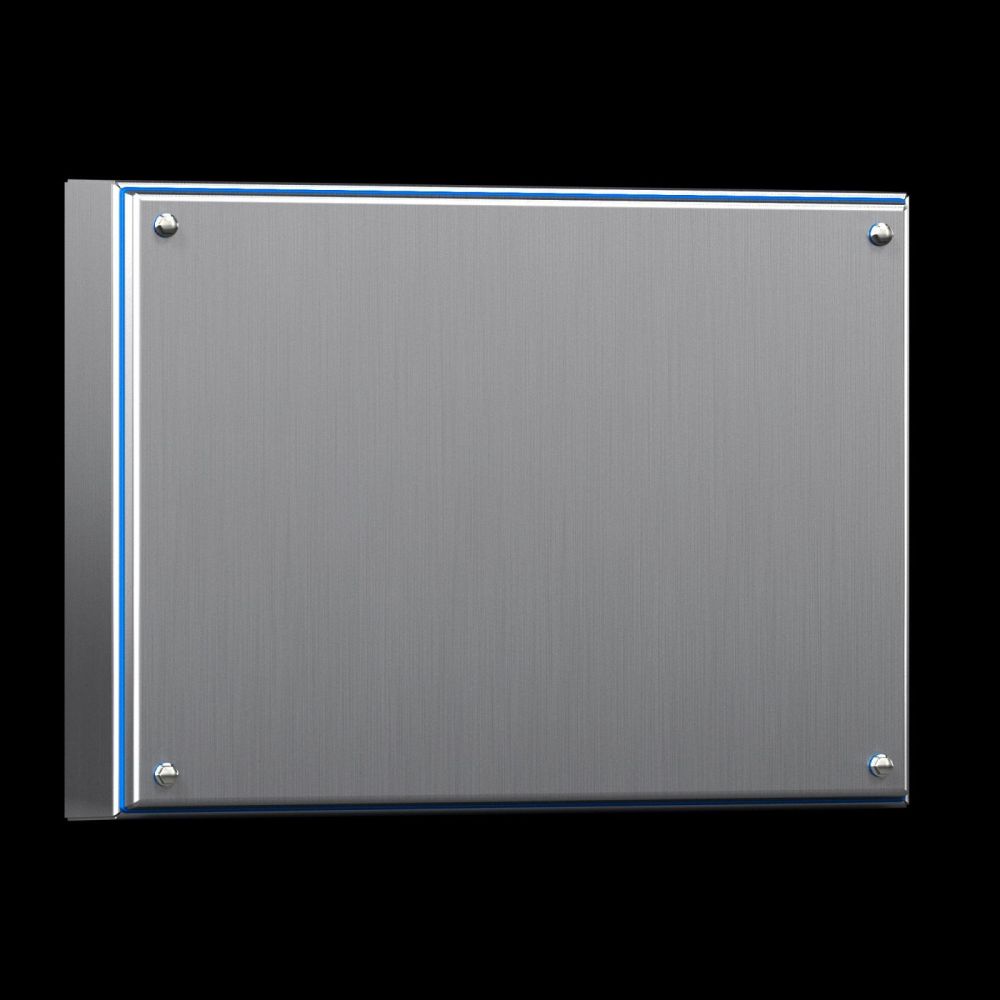

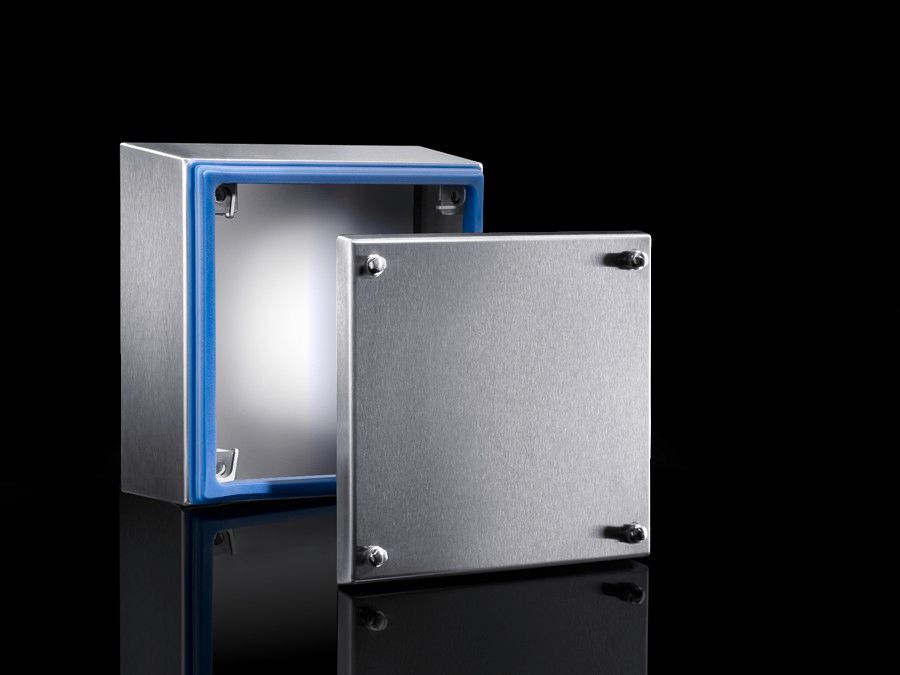

Rittal 1675600 HD Terminal box, WHD: 400x200x120 mm, Stainless steel 1.4301, with mounting plate, with cover and silicone seal
|
-7% 277,27 EUR 297,05 EUR |
|
|
( 329,95 EUR incl. VAT ) ≈ £237.90 | ≈ $321.36 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 143982 |
|---|---|
| Mfg Part No: | 1675600 |
| UPC/EAN: | 4028177639775 |
| Weight: | 0.123 kg |
Further Switchboard-Systems from RittalFurther products in category Switchboard-Systems
All products of Rittal
Product information for Rittal 1675600:
Material: Enclosure and cover: Stainless steel 1.4301 (AISI 304) 1.5 mm
Mounting bracket: Sheet steel, zinc-plated, passivated, 2.0 mm
Screw plug: Stainless steel
Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
Surface finish: Enclosure and cover: Brushed, grain 400, peak-to-valley height < 0.8 µm
Seal: Blue, dyed (RAL 5010)
Protection category IP to IEC 60 529: IP 66
Protection category IP to DIN 40 050-9: IP 69K
Protection category NEMA: NEMA 13
NEMA 3R
NEMA 4X
Supply includes: Enclosure of all-round solid construction
Cover
Mounting bracket (pre-assembled)
Seal and screw plug (supplied loose)
Packs of: 1 pc(s).
EAN: 4028177639775
Customs tariff number: 94032080
eCl@ss 5.1: 27180102
eCl@ss 7.0: 27180101
ETIM 6.0: EC002713
Dimensions: Width (front): 400 mm
Width (rear): 427 mm
Height (front): 200 mm
Height (rear): 227 mm
Depth: 120 mm
Weight/pack: 5 kg
Type: HD 1675600
Mounting bracket: Sheet steel, zinc-plated, passivated, 2.0 mm
Screw plug: Stainless steel
Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
Surface finish: Enclosure and cover: Brushed, grain 400, peak-to-valley height < 0.8 µm
Seal: Blue, dyed (RAL 5010)
Protection category IP to IEC 60 529: IP 66
Protection category IP to DIN 40 050-9: IP 69K
Protection category NEMA: NEMA 13
NEMA 3R
NEMA 4X
Supply includes: Enclosure of all-round solid construction
Cover
Mounting bracket (pre-assembled)
Seal and screw plug (supplied loose)
Packs of: 1 pc(s).
EAN: 4028177639775
Customs tariff number: 94032080
eCl@ss 5.1: 27180102
eCl@ss 7.0: 27180101
ETIM 6.0: EC002713
Dimensions: Width (front): 400 mm
Width (rear): 427 mm
Height (front): 200 mm
Height (rear): 227 mm
Depth: 120 mm
Weight/pack: 5 kg
Type: HD 1675600
Questions & answers
What is the delivery time of Rittal 1675600 HD Terminal box, WHD: 400x200x120 mm, Stainless steel 1.4301, with mounting plate, with cover and silicone seal?
The article Rittal 1675600 HD Terminal box, WHD: 400x200x120 mm, Stainless steel 1.4301, with mounting plate, with cover and silicone seal is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1675600 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1675600 HD Terminal box, WHD: 400x200x120 mm, Stainless steel 1.4301, with mounting plate, with cover and silicone seal always at the best possible price. We can give you a discount of 2% on Rittal 1675600 HD Terminal box, WHD: 400x200x120 mm, Stainless steel 1.4301, with mounting plate, with cover and silicone seal if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
