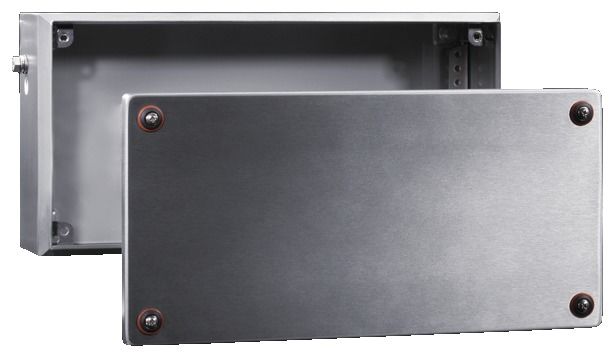

Rittal 9305000 Ex enclosures Stainless steel, empty enclosure with screw fastened cover
|
277,15 EUR 280,14 EUR |
|
|
( 329,81 EUR incl. VAT ) ≈ £238.35 | ≈ $315.95 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Lieske Part No.: | 607840 |
|---|---|
| Mfg Part No: | 9305000 |
| UPC/EAN: | 4028177138629 |
| Weight: | 3.6 kg |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 9305000:
Applications: Zone 1 and 2 or 21 and 22 to 94/9/EC
Ambient temperature range: -30°C...+80°C
Protection type to EN 60 079: Equipment protection due to increased safety, equipment protection due to enclosure
Material: Enclosure: Stainless steel 1.4301 (AISI 304)
Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in silicone seal
Surface finish: Enclosure: Brushed, grain 240
Protection category IP to IEC 60 529: IP 66
Certificates: IEC Ex PTB 09.0033U: yes
PTB 03 ATEX 1013U: yes
Supply includes: Enclosure
Cover
Packs of: 1 pc(s).
EAN: 4028177138629
Customs tariff number: 94032080
eCl@ss 5.1: 27180502
eCl@ss 7.0: 27180502
ETIM 6.0: EC002503
Dimensions: Width: 400 mm
Height: 200 mm
Depth: 120 mm
Weight/pack: 3.6 kg
Type: KEL 9305000
Ambient temperature range: -30°C...+80°C
Protection type to EN 60 079: Equipment protection due to increased safety, equipment protection due to enclosure
Material: Enclosure: Stainless steel 1.4301 (AISI 304)
Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in silicone seal
Surface finish: Enclosure: Brushed, grain 240
Protection category IP to IEC 60 529: IP 66
Certificates: IEC Ex PTB 09.0033U: yes
PTB 03 ATEX 1013U: yes
Supply includes: Enclosure
Cover
Packs of: 1 pc(s).
EAN: 4028177138629
Customs tariff number: 94032080
eCl@ss 5.1: 27180502
eCl@ss 7.0: 27180502
ETIM 6.0: EC002503
Dimensions: Width: 400 mm
Height: 200 mm
Depth: 120 mm
Weight/pack: 3.6 kg
Type: KEL 9305000
Questions & answers
What is the delivery time of Rittal 9305000 Ex enclosures Stainless steel, empty enclosure with screw fastened cover?
The article Rittal 9305000 Ex enclosures Stainless steel, empty enclosure with screw fastened cover is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9305000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9305000 Ex enclosures Stainless steel, empty enclosure with screw fastened cover always at the best possible price. We can give you a discount of 2% on Rittal 9305000 Ex enclosures Stainless steel, empty enclosure with screw fastened cover if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
