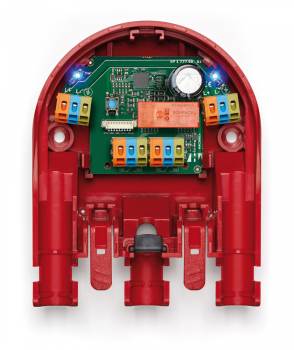

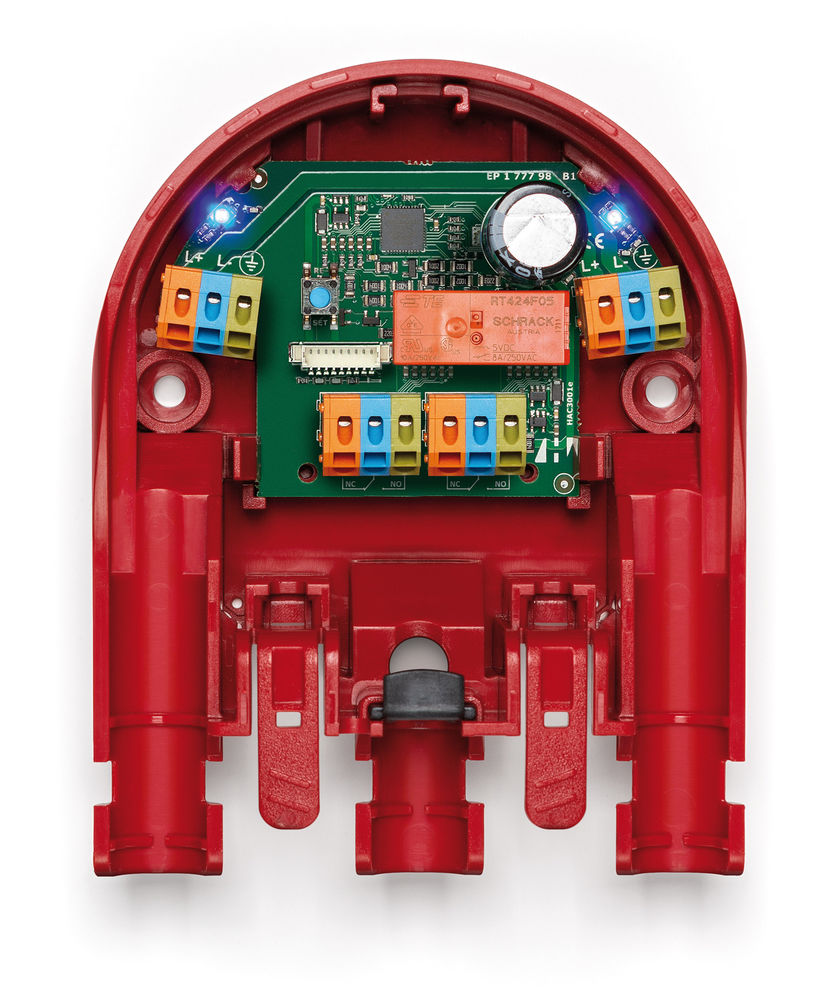

RCS Audio-Systems TRT-300 A ›VARES-LOOP‹ ring bus module, with 2 relay contacts, IP 21C, including cover
|
347,70 EUR |
|||||||||||
|
( 413,76 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1927724 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | TRT-300 A | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for RCS Audio-Systems TRT-300 A:
Equipped with two potential-free changeover relays (230 V AC / 8 A each), the module offers flexible response options: one relay can activate strobe lights, while the other disconnects speakers to ensure that priority announcements are broadcast without interference.
Power is supplied via the Ringbus. An internal capacitor, charged by the TRC-800 A controller, stores enough energy for at least two emergency switching cycles. The module also provides basic line monitoring, allows room-specific volume adjustments, and supports the injection of custom 100V audio programs.
Technical Specifications (English):
Model:
- TRT-300 A
Power Supply (via TRC-800 A):
- 19 – 30 V DC (Nominal 30 V DC)
- Idle Current: 100 µA
- Max. Power Consumption: 20 mW
Control Signal:
- Frequency: 20 kHz / 7.5 Vrms
Switching Times:
- Fade-in: 0.3 s
- Fade-out: 1.0 s
Wiring:
- 2-wire system, max. 2.5 mm²
- Max. loop length: 1,000 m
- Max. cable diameter: 13 mm
Relay Contacts (2x):
- Max. 250 V AC / 8 A (Dual-State Type)
- Max. AC Load: 1,800 W (230 V AC)
LOOP Detection:
- Short circuit
- Wire-to-wire
- Open circuit
- Ground fault
Mounting:
- Surface-mounted (e.g., on speaker)
Connections:
- Loop Input: L+, L−, GND (0.8–2.5 mm²)
- Loop Output: L+, L−, GND (0.8–2.5 mm²)
- 2x Changeover relay: NO, COM, NC (0.8–2.5 mm²)
Housing / Protection:
- ABS with transparent cover
- IP21C
Dimensions (W x H x D):
- 110 x 130 x 55 mm
Weight:
- 150 g
Certification:
- EN 54-17:2005
- Certificate: 0560-CPR-142190002
Special Features:
- Emergency switching via dual relay outputs
- Enables 100V priority circuits
- Capacitor buffer for at least two alarm cycles
- Integration of external signals like flashers
- Speaker cutoff during alarms
