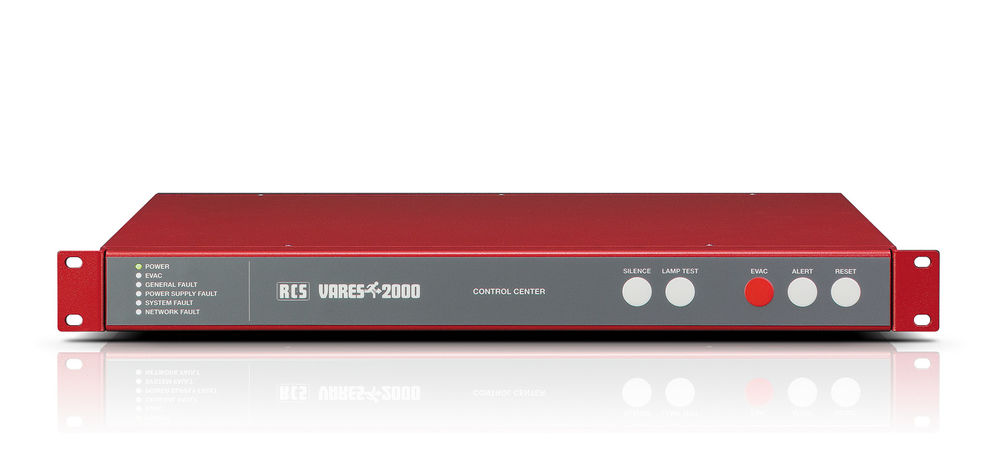

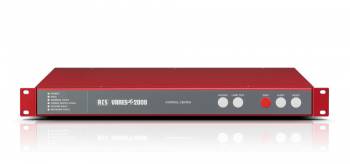

RCS Audio-Systems NCC-2000 A ›VARES-2000‹ Network Control Center, (audio matrix), 1 U
|
2.812,00 EUR |
|||||||||||
|
( 3.346,28 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1927610 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | NCC-2000 A | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for RCS Audio-Systems NCC-2000 A:
Designed for high scalability, the system can manage up to 1,500 speaker lines grouped into a maximum of 255 call zones. It continuously monitors all system components, including mains voltage, battery, amplifiers, microphones, and speaker lines. Support for loop technology and end-of-line (EOL) supervision ensures full compliance and safety.
Two simultaneous audio signals are processed through a digital switch matrix with dynamic stream assignment. Up to 32 NDA-1000 A amplifiers can be controlled via the AMP-Link module. Remote line extenders (NLE-406A) deliver the audio signals to specific speaker zones.
The Control Center includes monitored and unmonitored GPI and GPO interfaces as well as local and global network ports. It communicates with the amplifiers via the VARES-2000 data bus. The configuration is handled using the same reliable software platform as the VARES-1500 system, ensuring seamless integration.
Technical Specifications:
General:
- Central control unit for the VARES-2000 voice alarm system
- Simple network architecture without master/slave concept
- Compatible with VARES-1500 configuration software
Networking & Scalability:
- Up to 1,500 speaker lines
- Max. 255 virtual call zones
- Up to 255 network nodes per system (peer-to-peer redundancy in ring structure)
Audio Processing:
- Audio matrix with DSP
- 2 prioritized audio signals via AMP-Link
- Dynamic stream assignment
- Integrated text module and digital voice memory
Interfaces & Monitoring:
- 16 monitored or unmonitored inputs (freely configurable)
- GPI and GPO interfaces (monitored or unmonitored)
- Amplifier and microphone supervision
- Mains and battery voltage monitoring
- Supports loop technology and end-of-line (EOL)
Amplifier Integration:
- Controls up to 32 NDA-1000 A amplifiers per control center
- AMP connection via VARES-2000 data bus
- Connection to NLE-406A line extenders for speaker zone routing
Performance:
- Max. total power output: 32,000 W
Included in Delivery:
- VARES-2000 Control Center
- Configuration software package
- AMP-Link module
- Connection cables (depending on system variant)
Questions & answers
What is the delivery time of RCS Audio-Systems NCC-2000 A ›VARES-2000‹ Network Control Center, (audio matrix), 1 U?
The article RCS Audio-Systems NCC-2000 A ›VARES-2000‹ Network Control Center, (audio matrix), 1 U is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems NCC-2000 A to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you RCS Audio-Systems NCC-2000 A ›VARES-2000‹ Network Control Center, (audio matrix), 1 U always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems NCC-2000 A ›VARES-2000‹ Network Control Center, (audio matrix), 1 U if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of RCS Audio-Systems NCC-2000 A ›VARES-2000‹ Network Control Center, (audio matrix), 1 U we can offer you a price of 2.643,28 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of RCS Audio-Systems NCC-2000 A ›VARES-2000‹ Network Control Center, (audio matrix), 1 U via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
