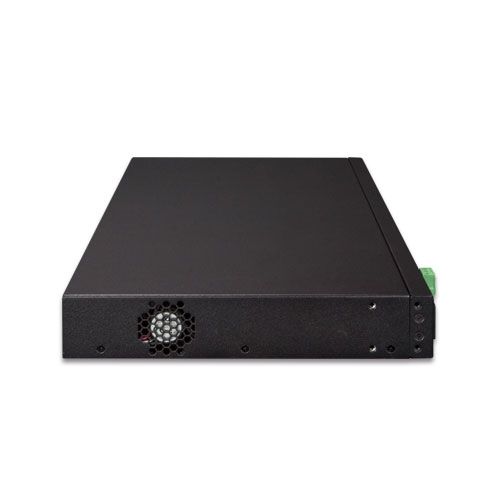

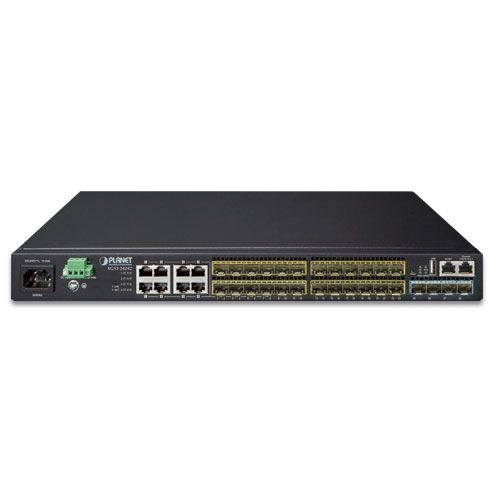

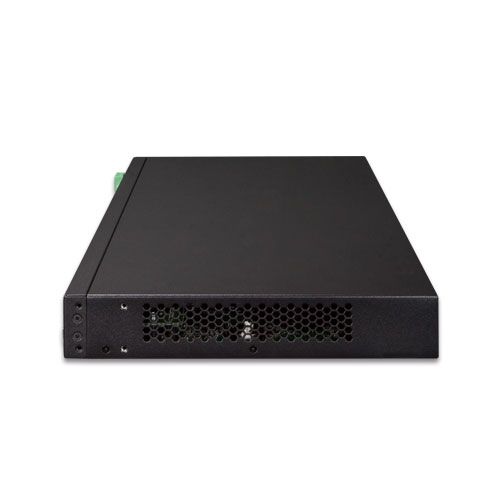

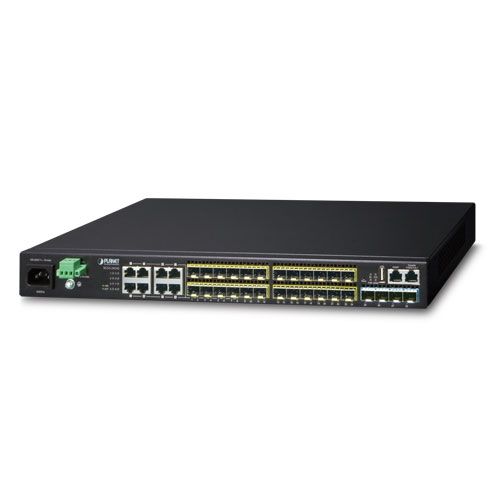

PLANET L3 24-Port 100/1000X SFP with 4 Optional 10G slots
|
1.364,10 EUR |
|
|
( 1.623,28 EUR incl. VAT ) ≈ £1,175.85 | ≈ $1,546.89 plus delivery charges: 53,00 € |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1226560 |
|---|---|
| Mfg Part No: | XGS3-24242 |
| UPC/EAN: | 4711213688539 |
| Weight: | 0.12 kg |
Product information for Planet XGS3-24242:
Designed for high-reliability networks, the switch supports hardware stacking, IP stacking (up to 24 units), dual redundant power inputs (AC/DC), and ERPS ring technology. It ensures rapid failover, seamless routing, and security features suitable for data-intensive applications like VoIP, IPTV, and surveillance.
Key Specifications:
Ports:
- 24x 100/1000BASE-X SFP (mini-GBIC)
- 8x 10/100/1000BASE-T RJ45 (shared with ports 1–8)
- 4x 10G SFP+ (SR/LR, backward compatible with 1G)
- 1x RJ45 Console (RS232)
- 1x USB 2.0 (for config/firmware)
Switching Performance:
- Switching Fabric: 128 Gbps
- Throughput: 95.23 Mpps
- MAC Table: 16K
- ARP Table: 4K
- Routing Entries: 13K (IPv4), 3.2K (IPv6)
- ACL Entries: 3K
- Jumbo Frame: 10KB
- Store-and-Forward Architecture
Layer 3 Routing:
- Static, RIP v1/v2, RIPng, OSPFv2/v3, BGP4/4+
- Policy-Based Routing, VRRP v1/v3
- LPM Routing, Hardware-based VLAN routing
- Multicast Routing: IGMP v1–v3, DVMRP, PIM-DM/SM/SSM, MLD v1/v2
- MPLS, GRE, ISATAP, 6to4 Tunnels
Stacking Capabilities:
- IP Stack: Manage up to 24 units via single IP
- Hardware Stack: Up to 4 units via 10G SFP+ links
- Redundant ring stacking supported
Layer 2 Capabilities:
- VLANs: 256 groups / 4094 VLAN IDs
- Q-in-Q, MAC/Protocol/Subnet VLANs
- Link Aggregation: 128 groups, 8 ports each (LACP/Static)
- STP, RSTP, MSTP with BPDU/Root Guard
- IGMP/MLD Snooping, MVR, Storm Control
- Port Mirroring, Loop Detection
QoS:
- 8 Queues per port, SP and WRR
- DSCP, CoS, ToS, ACL-based Classification
- Ingress/Egress Rate Limiting
Security:
- IEEE 802.1X, RADIUS, TACACS+
- DHCP Snooping, IP Source Guard, ARP Inspection
- ACLs: IP/MAC/Port/Time-based
- MAC/IP/Port binding, DoS Protection
Management:
- Web GUI, CLI (Console/Telnet), SNMP v1/v2c/v3
- Secure: SSH, SSL, HTTPS
- Dual Firmware, Syslog, RMON, NTP, LLDP
- DDM Monitoring, sFlow, ULSM, ULPP
- IPv6 Ready (Management & Routing)
Environmental & Mechanical:
- Dimensions: 440 x 240 x 43.6 mm (1U)
- Weight: 3.17 kg
- Power Input: 100–240V AC or 36–75V DC
- Max Power Usage: 51.1W
- Operating Temp: 0 – 50 °C
- Storage Temp: -10 – 70 °C
- Humidity: 5 – 90% RH (non-condensing)
Use Cases:
- Enterprise backbone switch
- ISP and telecom metro access layers
- Data center aggregation
- IPv6 migration infrastructure
Questions & answers
What is the delivery time of PLANET L3 24-Port 100/1000X SFP with 4 Optional 10G slots?
The article PLANET L3 24-Port 100/1000X SFP with 4 Optional 10G slots is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet XGS3-24242 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you PLANET L3 24-Port 100/1000X SFP with 4 Optional 10G slots always at the best possible price. We can give you a discount of 2% on PLANET L3 24-Port 100/1000X SFP with 4 Optional 10G slots if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
