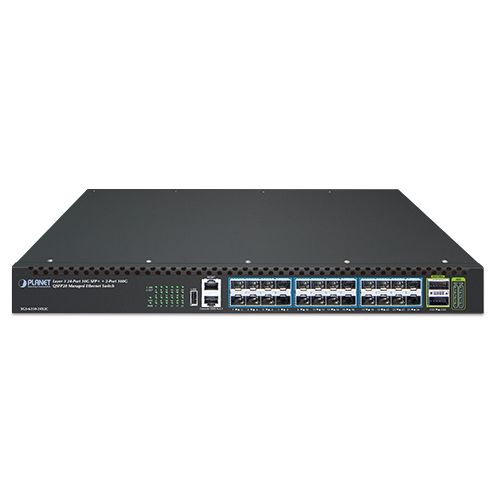

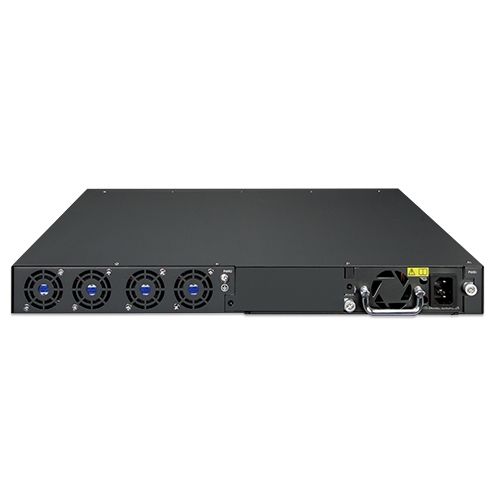

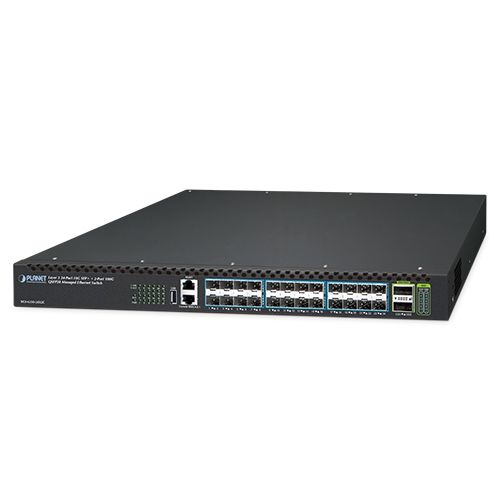

Planet 24-Port SFP+ Layer 3 Managed Switch XGS-6350-24X2C
|
1.206,17 EUR |
|
|
( 1.435,34 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1198246 |
|---|---|
| Mfg Part No: | XGS-6350-24X2C |
| UPC/EAN: | 4711605288040 |
| Weight: | 0.12 kg |
Product information for Planet XGS-6350-24X2C:
The PLANET XGS-6350-24X2C is a high-density Layer 3 managed switch designed for next-gen Metro, Data Center, Campus, and Enterprise networks. Featuring 24 10G SFP+ ports and 2 QSFP28 uplink interfaces supporting 40G/100G or 4x10G breakout, the switch offers massive capacity with 880Gbps switching fabric and advanced L2/L3 functionality – ideal for high-speed, high-resilience network backbones.
Comprehensive routing and multicast protocols including OSPF, BGP, RIP, PIM, and advanced IPv6 features make the XGS-6350-24X2C ideal for future-proof infrastructure deployments, including high-volume data exchange, cloud service hubs, and fiber-based environments.
Key Specifications:
Ports:
- 24x 10G SFP+ (backward compatible with 1G)
- 2x QSFP28 (support 100G, 40G, 4x10G breakout)
- 1x MGMT (RJ45), 1x Console (RJ45 to DB9), 1x USB 2.0
Switch Performance:
- Switching Capacity: 880Gbps
- Throughput: 654Mpps
- MAC Table: 132K
- Buffer: 4.5MB
- Jumbo Frames: 9K
High Availability:
- Hot-swappable dual power (1 AC built-in, 1 optional DC/AC)
- 4 Smart Cooling Fans
- ISSU, GR, BFD Support
- Full stacking support (up to 10 units via virtual stack)
Layer 3 Functions:
- IPv4/IPv6 static & dynamic routing (RIP, OSPF, BGP)
- 128 VLAN interfaces, Policy Routing, Load Balancing
- PIM-DM/SM/SSM, VRRP
Layer 2 Functions:
- VLAN: 4K entries, 802.1Q, Q-in-Q, Protocol/MAC/Subnet VLANs
- LAG: 32 groups (8 ports per group)
- STP/RSTP/MSTP, ERPS (G.8032)
- IGMPv1/v2/v3, MLD Snooping v1/v2, MVR
- Storm Control, Port Mirroring, Loopback Detection
QoS:
- 8 Queues per Port
- SP, WRR, SP+WRR scheduling
- DSCP, CoS, MAC/IP/Port ACL-based classification
- Traffic shaping & policing
Security:
- IEEE 802.1X, RADIUS, TACACS+
- ACLs: IP/MAC/Port/Time-based (up to 1K entries)
- DHCP Snooping, ARP Inspection, IP Source Guard
- DoS Protection, Port Security
Management:
- Web, CLI (Telnet/Console), SNMP v1/v2c/v3
- Secure: SSHv2, SSLv3, TLSv1.3
- TFTP/FTP, RMON, Syslog, Dual Firmware
- Smart Discovery, VLAN-based IP Stack Management
Environment & Build:
- Operating Temp: 0 – 50 °C
- Storage Temp: -40 – 80 °C
- Dimensions: 442.5 × 300.1 × 44.6 mm (1U)
- Weight: 5.72 kg
- Power: 100–240V AC
- Max Consumption: 50.5W (no load)
Ideal For:
- Aggregation/Core switches in data centers
- Metro and campus backbone networks
- ISP and triple-play service networks
Questions & answers
What is the delivery time of Planet 24-Port SFP+ Layer 3 Managed Switch XGS-6350-24X2C?
The article Planet 24-Port SFP+ Layer 3 Managed Switch XGS-6350-24X2C is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet XGS-6350-24X2C to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Planet 24-Port SFP+ Layer 3 Managed Switch XGS-6350-24X2C always at the best possible price. We can give you a discount of 2% on Planet 24-Port SFP+ Layer 3 Managed Switch XGS-6350-24X2C if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
