Planet 5GHz 802.11ac 900Mbps TDMA Outdoor Long-range CPE WBS
|
158,46 EUR |
|
|
( 188,57 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1198199 |
|---|---|
| Mfg Part No: | WBS-900AC |
| UPC/EAN: | 4711605287890 |
| Weight: | 0.12 kg |
Product information for Planet WBS-900AC:

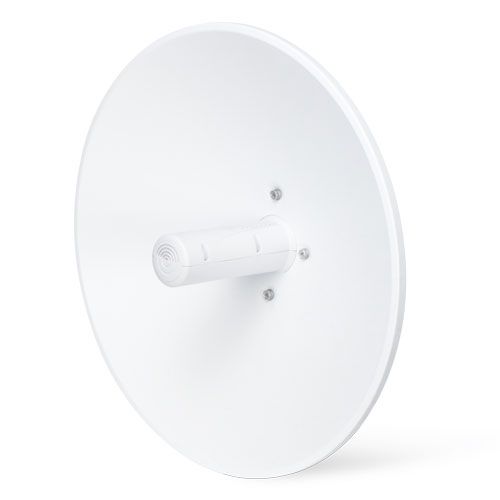

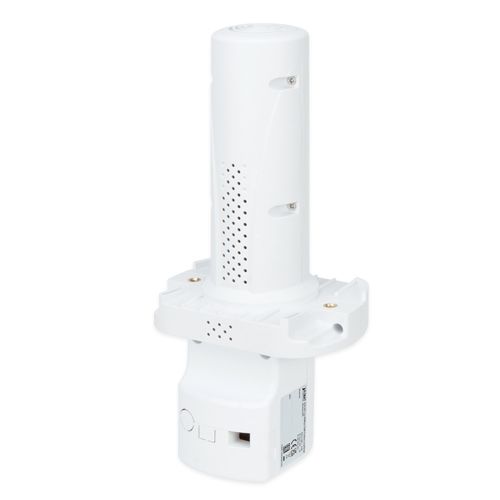

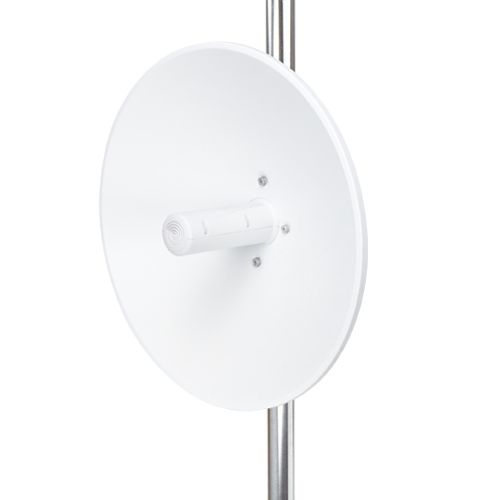

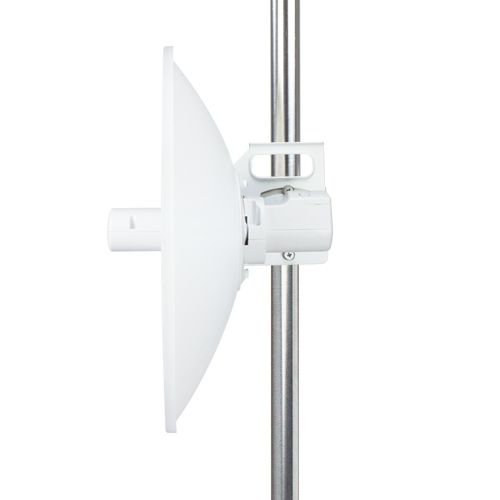

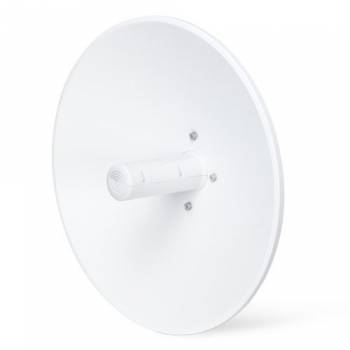

The PLANET WBS-900AC is a 5GHz 802.11ac TDMA Outdoor Wireless CPE engineered for robust point-to-point and point-to-multipoint deployments. Featuring a throughput of up to 900Mbps, integrated 25dBi dual-polarized dish antenna, and advanced TDMA and MU-MIMO Wave 2 technologies, it is the ideal wireless bridge for demanding environments such as cities, campuses, industrial zones, or remote sites. Encased in an IP65-rated enclosure and operating from -40 to +70°C, the WBS-900AC is built to withstand harsh conditions and ensure reliable performance.
Technical Specifications:
Performance & Functionality:
- IEEE 802.11a/n/ac Wave2 MU-MIMO (2T2R)
- Max. data rate: 867Mbps (AC), 300Mbps (N), 54Mbps (A)
- TDMA scheduling and ATPC for reduced interference
- Supports up to 128 concurrent wireless clients
- Integrated 25dBi dual-polarized dish antenna
- VLAN tagging over WDS/TDMA (IEEE 802.1Q)
- Full encryption: WPA/WPA2, WPA-PSK/WPA2-PSK, MAC filtering, SSID hiding
Outdoor-Ready:
- IP65 weatherproof housing with built-in lightning and ESD protection
- Operating temperature: -40 to +70 °C
- Humidity: 5–95% (non-condensing)
- PoE powered via IEEE 802.3at or passive 48V injector
Hardware Interface:
- 1 × PoE port (Gigabit, 802.3at-compliant)
- 1 × LAN port (Gigabit)
- Reset button
- Max. power consumption: < 15W
Radio & Antenna:
- Frequency range: 5150–5850 MHz
- Channels supported: 36–165 (region dependent)
- Antenna: 25dBi gain, ±45° dual polarization, 6° beam width
- Modulation: OFDM (256-QAM, 64-QAM, etc.)
- Receive sensitivity: up to -87 dBm
Software Features:
- Operation modes: AP (Auto WDS), AP (TDMA), Station (WDS/TDMA), Station (ARPNAT)
- SSID broadcast on/off, 1 SSID max
- Fast Roaming: IEEE 802.11k/v/r support
- WiFi Multimedia (WMM), client limit control
- IEEE 802.1Q VLAN (VID: 2–4094), GRE tunneling, SNMP v1/v2c/v3
- HTTPS web-based management, config backup & restore
- Supports Bonjour, LLDP, CDP, SSDP
Dimensions & Weight:
- Unit: 120 × 260 × 85 mm, 333 g
- Antenna: Ø466 × 260 mm, 1560 g
