PLANET 1-Port 10/100/1000T Ethernet to VDSL2 Converter
|
131,15 EUR |
|
|
( 156,07 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Lieske Part No.: | 1227177 |
|---|---|
| Mfg Part No: | VC-231G |
| UPC/EAN: | 4711605282826 |
| Weight: | 0.54 kg |
Product information for Planet VC-231G:

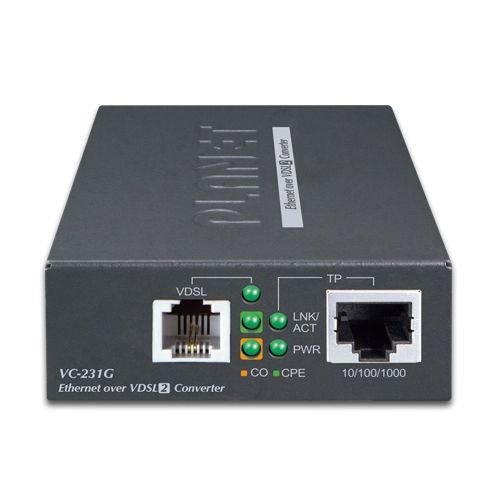

With support for G.INP, G.vectoring (ITU-T G.993.5) and ADSL2+ fallback, it enables stable and fast service delivery for applications like IPTV, VoIP, and video on demand. The device includes a RJ-11 VDSL port, a Gigabit RJ-45 LAN port, and an included splitter for simultaneous POTS telephony use.
It features a CO/CPE mode switch via DIP for simple deployment in point-to-point configurations, perfect for MDUs, MTUs, and FTTx “last mile” deployments.
Key Technical Details:
Ports:
- 1 × RJ-45 10/100/1000BASE-T Ethernet (Auto MDI/MDI-X)
- 1 × RJ-11 VDSL2 interface
- 1 × POTS splitter included
VDSL2/ADSL Support:
- ITU-T G.993.2 (Profiles 17a/30a/35b)
- G.vectoring (G.993.5), G.INP, G.997.1
- ADSL2/2+ fallback supported
- Maximum rates: 316/60Mbps (asymmetric), 200/200Mbps (symmetric)
Configuration and Operation:

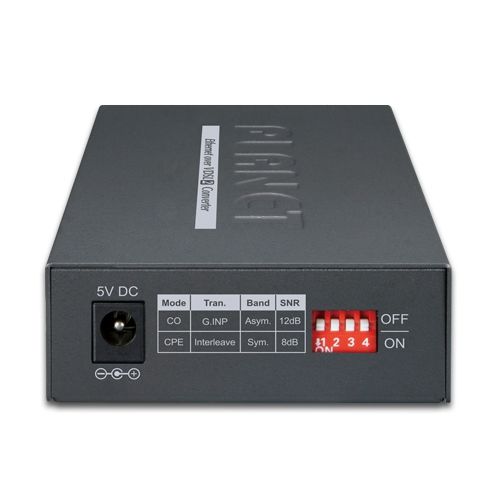

- DIP switch for CO/CPE role selection
- Selectable band plan, SNR margin, G.INP
- Supports 802.1Q VLAN tag transparency
Power:
- 5V DC, 2A
Dimensions and Weight:
- 94 × 70.3 × 26.2 mm
- 196 g
Switching:
- Store-and-Forward architecture
- 1K MAC address table
- 1522-byte max frame size
Environment:
- Operating temperature: 0–50 °C
- Humidity: 5–95% (non-condensing)
Applications:
- FTTx last-mile deployment, Ethernet extension, triple-play delivery, MDU/MTU, hospitality and medical networks
