PLANET 10/100 Mbps Ethernet to VDSL2 Converter - 30a
|
109,12 EUR |
|
|
( 129,85 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 676681 |
|---|---|
| Mfg Part No: | VC-231 |
| UPC/EAN: | 4711213687242 |
| Weight: | 0.54 kg |
Further TV / Video / Audio from PlanetFurther products in category TV / Video / Audio
All products of Planet

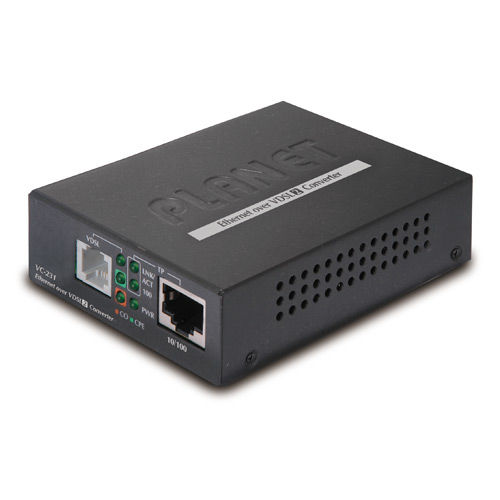

Product information for Planet VC-231:
The PLANET VC-231 is a high-performance Ethernet-over-VDSL2 converter that delivers 100/100Mbps symmetric speeds over existing telephone lines — without any rewiring. Supporting ITU-T G.993.2 VDSL2 profiles 17a and 30a, the device is designed for long-reach Ethernet extension applications, using simple two-wire copper cabling.
With a compact design, plug-and-play setup, and a selectable CO/CPE mode via DIP switch, the VC-231 is ideal for extending networks across large buildings, campus environments, and older infrastructures. It also enables simultaneous telephone and data transmission with the included splitter for POTS voice sharing.
This solution is perfectly suited for triple-play services such as IPTV, VoIP, and high-speed Internet — making it a cost-effective alternative to fiber in legacy deployments.
Interfaces:
Dimensions & Weight:
With a compact design, plug-and-play setup, and a selectable CO/CPE mode via DIP switch, the VC-231 is ideal for extending networks across large buildings, campus environments, and older infrastructures. It also enables simultaneous telephone and data transmission with the included splitter for POTS voice sharing.
This solution is perfectly suited for triple-play services such as IPTV, VoIP, and high-speed Internet — making it a cost-effective alternative to fiber in legacy deployments.
Technical Specifications (Overview):
Interfaces:
- 1 × RJ-45 10/100Mbps Ethernet port (Auto-Negotiation / Auto-MDI/MDI-X)
- 1 × RJ-11 port for VDSL2 connection
- 1 × POTS port via included splitter
VDSL2 Support:
- Standards: ITU-T G.993.1, G.993.2 (Profiles 17a & 30a)
- Up to 100/100Mbps @ 300m (Profile 30a)
- Up to 1.4 km @ 50/2Mbps (Profile 17a)
DIP Switch Configuration:
- CO / CPE mode
- Fast or Interleaved mode
- Target SNR Margin selection
- Profile 17a / 30a selection
Power Requirements:
- 5V DC, 2A (6.6W max.)
Dimensions & Weight:
- 94 × 70.3 × 26.2 mm
- 199 g
Additional Features:
- Store-and-Forward switch architecture
- Extensive LED diagnostics
- IEEE 802.3 / 802.3u compliant
- Transparent to 802.1Q VLAN tagging
- Supports up to 1536-byte frame size
- Compatible with PLANET media chassis systems
- Operating temperature: 0–50 °C; Storage: -10–70 °C
