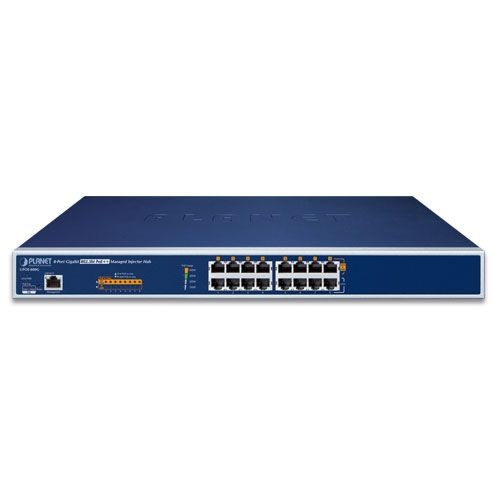

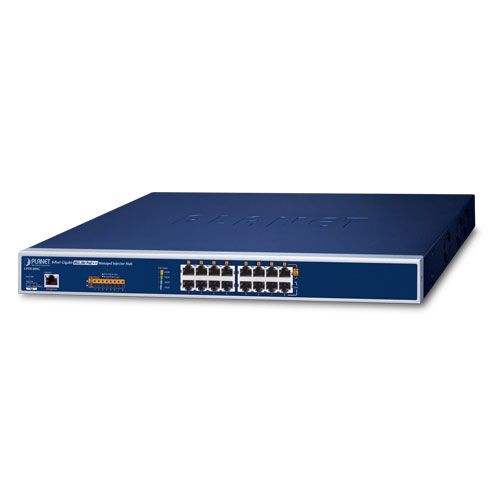

PLANET 8-Port 60W Managed Gigabit Ultra PoE Injector Hub

The PLANET UPOE-800G is a high-performance, managed PoE++ injector hub with 8 ports supporting the IEEE 802.3bt Type-4 standard, delivering up to 95 watts per port. Designed for enterprise-grade networks, it offers a total 400-watt PoE budget and enables central power supply management for remote devices like PTZ cameras, access points, digital signage, and POS systems.

Advanced features such as PoE scheduling, PD alive check, auto power recycling, and real-time power usage monitoring ensure reliability and control. With TLS 1.2/1.3 security, MAC filtering, and HTTPS encryption, it supports secure deployment in any mission-critical environment. Management is handled via a user-friendly web interface, PLANET UNI-NMS, or the CloudViewer mobile app.

Technical Specifications (Summary):

Interfaces:

• 8 x RJ45 Data Input (10/100/1000 Mbps)
• 8 x RJ45 PoE Output (10/100/1000 Mbps, PoE++)
• 1 x RJ45 Management Port (10/100/1000 Mbps)

PoE Power:

• Standard: IEEE 802.3bt Type-4
• Backward compatible with IEEE 802.3at
• Up to 95W per port
• Total PoE power budget: 400 watts
• Supports End-span, Mid-span, Legacy & Force modes

PoE Features:

• Enable/disable per port
• PoE schedule and priority per port
• PD alive check and scheduled reboot
• Real-time usage monitor (per port and total)
• Per-port power mode selection

Management:

• IPv4/IPv6 dual stack
• Web-based interface (HTTP/HTTPS)
• TLSv1.2 and TLSv1.3, SNMP v1/v2c/v3
• PLANET DDNS & Easy DDNS, NTP, Syslog
• Network diagnostics: ping, traceroute
• Remote access via PLANET UNI-NMS & CloudViewer

Security:

• SPI firewall protection
• MAC address filtering
• HTTPS with certificate management

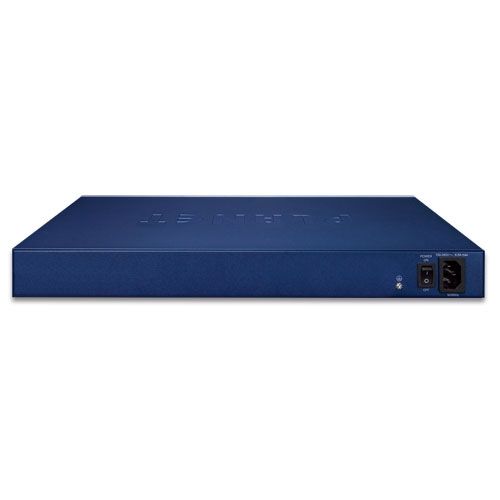

Hardware & Environmental:

• 1U 19” metal housing (444 × 301 × 44 mm)
• Weight: 4.1 kg
• Power consumption: max. 450 watts
• 3 smart cooling fans
• Operating temperature: 0–50 °C | Storage: -10–70 °C
• Humidity: 5–90% (non-condensing)

Certifications:

• FCC Part 15 Class A, CE
• IEEE 802.3af / at / bt compliant
