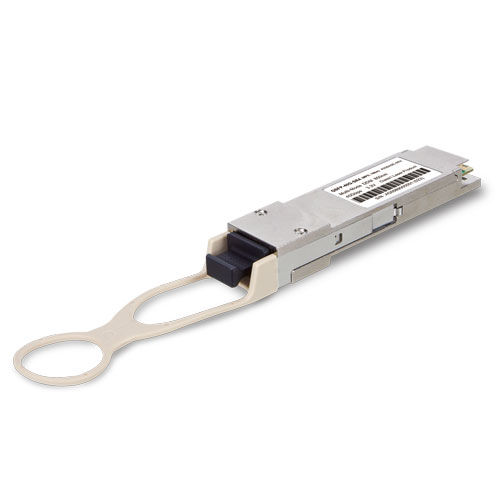

PLANET 40GBASE-SR4 QSFP+ Fiber Transceiver
|
80,06 EUR |
|
|
( 95,27 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 1648532 |
|---|---|
| Mfg Part No: | QSFP-40G-SR4 |
| UPC/EAN: | 4711605283120 |
| Weight: | 0.06 kg |
Product information for Planet QSFP-40G-SR4:
The PLANET QSFP-40G series offers high-performance QSFP+ (Quad Small Form Factor Pluggable) transceivers specifically engineered for 40Gbps duplex data links over optical fiber. Fully compliant with the QSFP+ MSA (Multi-Source Agreement), these transceivers support hot-plugging and can be installed or removed without disrupting the system’s operation.
The QSFP-40G-SR4 module is optimized for short-range applications over multi-mode fiber with MPO/MTP connectors, providing distances of up to 150 meters. The QSFP-40G-LR4 is designed for long-range deployments using single-mode fiber and LC connectors, supporting transmissions up to 10 kilometers.
Each transceiver includes advanced Digital Diagnostic Monitoring (DDM), giving administrators real-time visibility into operational parameters such as temperature, laser bias current, optical input/output power, and voltage.
QSFP-40G-SR4:
The QSFP-40G-SR4 module is optimized for short-range applications over multi-mode fiber with MPO/MTP connectors, providing distances of up to 150 meters. The QSFP-40G-LR4 is designed for long-range deployments using single-mode fiber and LC connectors, supporting transmissions up to 10 kilometers.
Each transceiver includes advanced Digital Diagnostic Monitoring (DDM), giving administrators real-time visibility into operational parameters such as temperature, laser bias current, optical input/output power, and voltage.
Technical Specifications:
QSFP-40G-SR4:
- Package: QSFP+
- PHY Standard: IEEE 802.3ba 40GBASE-SR4
- Fiber Type: Multi-mode
- Connector: MPO/MTP
- Wavelength: 850 nm
- Max Distance: 100 m (OM3), 150 m (OM4)
- Power Supply: 3.3V
- Operating Temperature: 0 to 60 °C
- Features: Hot pluggable, DDM, plug-and-play
QSFP-40G-LR4:
- Package: QSFP+
- PHY Standard: IEEE 802.3ba 40GBASE-LR4
- Fiber Type: Single-mode
- Connector: LC
- Wavelength: 1310 nm
- Max Distance: 10 km
- Power Supply: 3.3V
- Operating Temperature: 0 to 60 °C
- Features: Hot pluggable, DDM, plug-and-play
