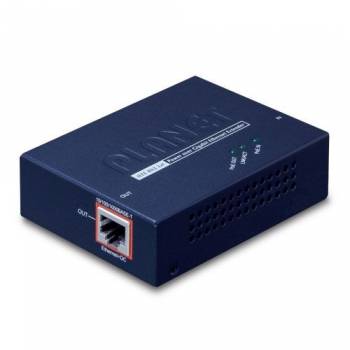

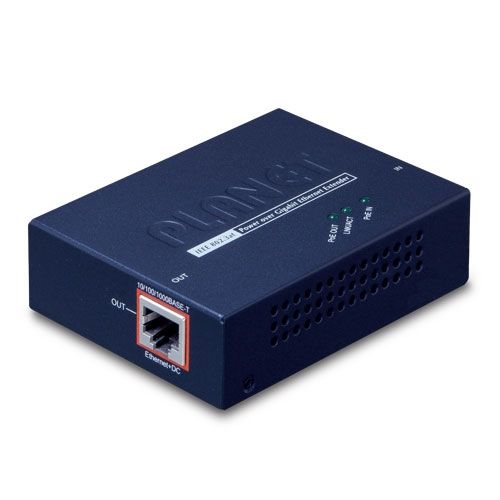

PLANET IEEE 802.3at Power over Gigabit Ethernet Extender

The PLANET POE-E201 is a compact and durable IEEE 802.3at/af compliant PoE+ extender that extends both Gigabit Ethernet data and PoE power transmission up to 200 meters — and up to 500 meters via daisy-chain with multiple units. Requiring no external power supply, the POE-E201 offers a cost-effective solution to extend network reach for PoE IP cameras, access points, and VoIP phones in hard-to-reach locations.

Thanks to its plug-and-play setup, auto PD detection, and robust build, the POE-E201 is ideal for surveillance deployments, campus networks, and public wireless infrastructures.

Technical Specifications (English):

Interfaces:

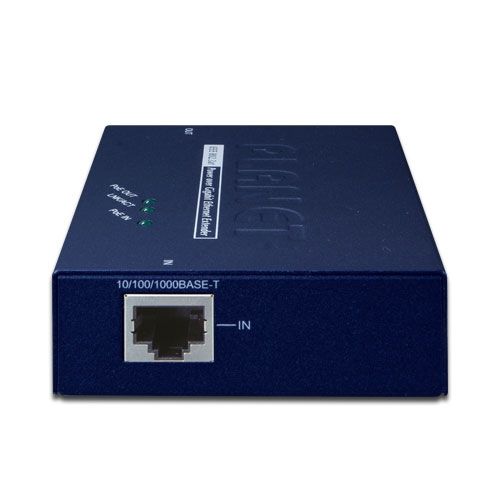

• 1 x RJ45 PoE IN (10/100/1000 Mbps, Data + Power)

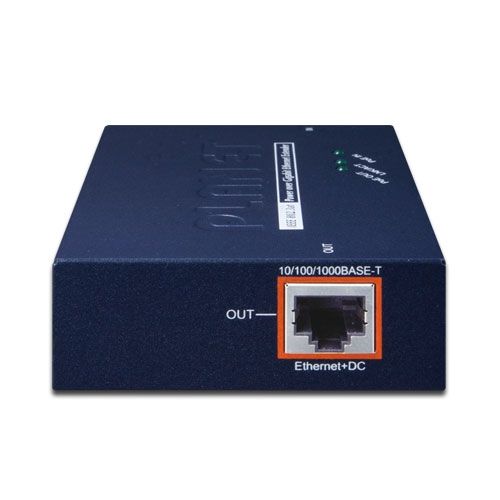

• 1 x RJ45 PoE OUT (10/100/1000 Mbps, Data + Power)

PoE Features:

• Complies with IEEE 802.3at PoE+ and 802.3af standards
• PoE IN: 48~56V DC, up to 30.8W
• PoE OUT: 44~52V DC, up to 26W
• Max Distance: 500m via 4 daisy-chained units
• Power Type: End-span / Type A
• Auto PoE detection and protection

Switching:

• Store-and-Forward switching architecture
• Data Rates: 10/100/1000 Mbps
• Max Frame Size: 9K Bytes
• Flow Control: IEEE 802.3x (Full Duplex), Back Pressure (Half Duplex)

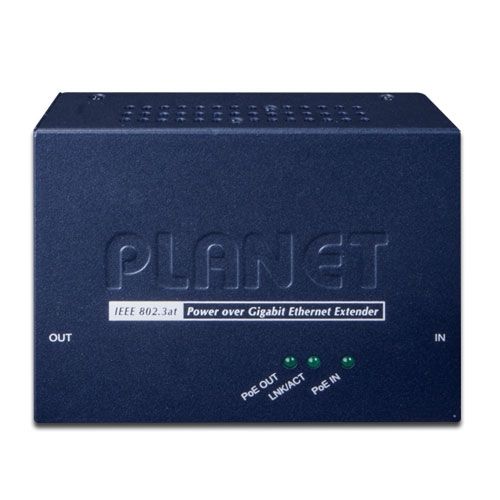

LED Indicators:

• PoE IN (Green)
• LAN Data (Green)
• PoE OUT (Amber)

Installation & Housing:

• Wall or DIN-rail mountable
• Metal enclosure with ESD and surge protection (2KV)
• Dimensions: 94 x 70.3 x 26.2 mm
• Weight: 189 g

Network Cable:

• Cat.5/5e/6 UTP, up to 100 meters per segment

Environment:

• Operating Temperature: -10 ~ 60 °C
• Storage Temperature: -40 ~ 85 °C
• Humidity: 5 ~ 95% (non-condensing)

Certifications:

• FCC Part 15 Class A, CE
• IEEE 802.3, 802.3u, 802.3ab, 802.3af/at compliant
