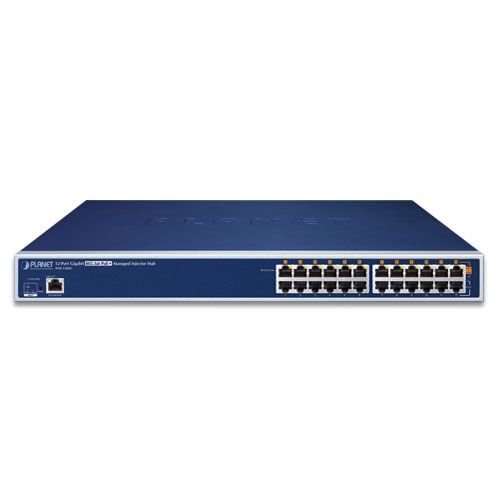

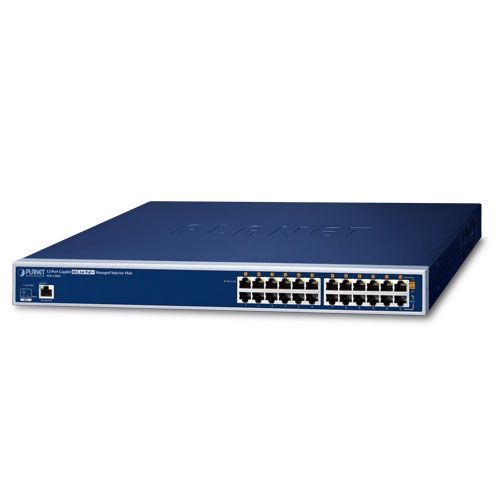

PLANET 12-Port Gigabit IEEE 802.3af Injector Hub (220 Watt)

The PLANET POE-1200G is a 12-port managed PoE+ injector hub, designed to provide a fast, reliable upgrade path to an IEEE 802.3at PoE+ network. Delivering up to 220 watts of total power, this 1U rack-mountable solution injects power into 12 Gigabit Ethernet ports, enabling seamless support for IP cameras, wireless access points, VoIP phones, and more without changing your existing switch.

It features advanced security with TLSv1.2/1.3, web-based GUI, remote monitoring via PLANET’s CloudViewer and UNI-NMS, and PoE features such as scheduling, power recycling, and per-port usage tracking—making it a complete centralized power management system for enterprise networks.

Technical Specifications (English):

Interfaces:

• 12 x RJ45 10/100/1000BASE-T Data Input ports
• 12 x RJ45 10/100/1000BASE-T Data + Power Output ports
• 1 x RJ45 10/100/1000BASE-T Management port

Power over Ethernet:

• Standards: IEEE 802.3af / 802.3at PoE+
• PoE Budget: 220 watts total
• Max Output: 30.8W per port (802.3at), 15.4W (802.3af)
• Power Pin Assignment: 4/5 (+), 7/8 (-)
• Mid-span PSE, up to 100 meters per port

Intelligent PoE Features:

• Per-port PoE scheduling
• PD alive check & automatic reboot
• Power priority settings
• Power consumption monitoring
• PD classification detection

Security & Management:

• Web interface with TLSv1.2 & TLSv1.3
• IPv4/IPv6 dual-stack
• PLANET DDNS / Easy DDNS support
• SNMP v1/v2c/v3, remote syslog, SPI Firewall
• Reset & reboot button
• PLANET Smart Discovery Utility
• PLANET NMS & CloudViewer support

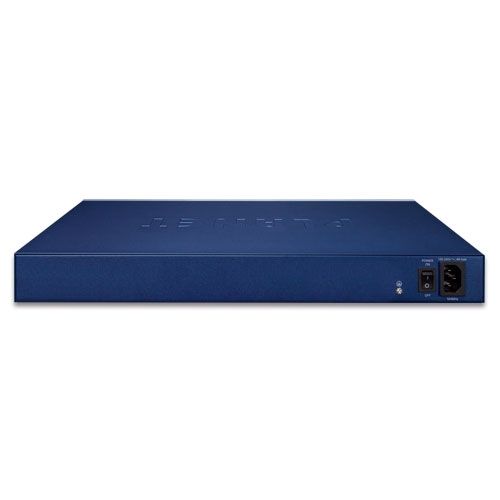

Hardware:

• Form factor: 1U rack-mountable (19”)
• Smart cooling fans x2
• Power consumption: 251W max
• Dimensions: 444 × 301 × 44 mm
• Weight: 3.6 kg

Environmental:

• Operating Temperature: 0 ~ 50 °C
• Relative Humidity: 5 ~ 90% (non-condensing)

Compliance:

• Certifications: CE, FCC Class A
• Standards: IEEE 802.3af/at, 802.3ab/u, RFC 768/791/2068/1157/5424
