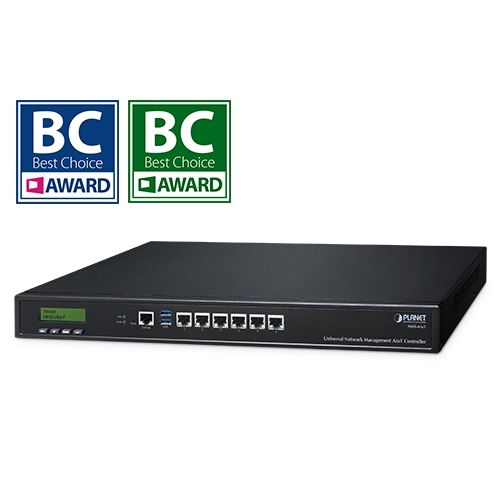

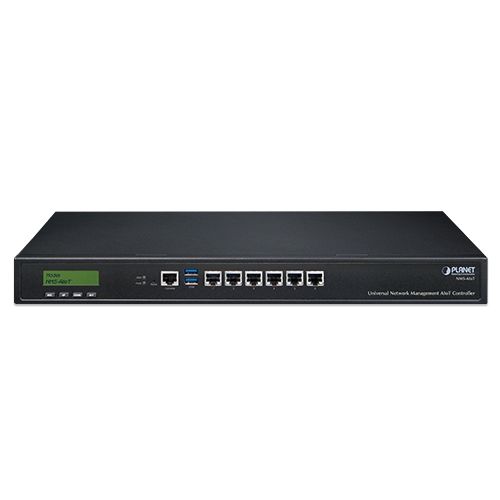

Planet Universal Network Management AIoT Application Server

The PLANET NMS-AIoT is a universal AIoT application server that centrally manages over 3,000 sensor devices. Designed for the era of edge computing and AI-powered IoT environments, it integrates multiple protocols like LoRa, Wi-Fi HaLow, Modbus, and PDU, making it ideal for smart buildings, industrial automation, and environmental monitoring.

With real-time data analytics, automated device control, map-based sensor management, and full ESG energy reporting, the NMS-AIoT enables efficient and secure AI private cloud deployment. IEC 62443-certified with 2FA, SSL VPN, and hybrid VPN support, it delivers enterprise-grade cybersecurity and flexibility.

Technical Specifications (English):

Interfaces:

• 6 x 10/100/1000BASE-T RJ45 ports (LAN 5 & 6 support bypass)
• 2 x USB 3.0 ports (not usable simultaneously)
• 1 x RJ45 console port
• 2 x DB9 COM1/COM2 (reserved)
• 1 x GPIO factory reset
• LEDs: Power, HDD

Display & Control:

• LCD size: 49.45 x 9.58 mm
• Touch buttons: Enter, Exit, Up, Down

Storage:

• 2.5” 64GB SATA HDD

Hardware:

• Dimensions: 438 × 180 × 44 mm (1U, 19” rack-mountable)
• Weight: 3 kg
• Power Supply: AC 100–240V, 65W
• MTBF: 100,000 hours
• Enclosure: Metal

Environmental:

• Operating Temperature: 0 – 50°C
• Storage Temperature: –20 – 70°C
• Humidity: 5 – 90% (non-condensing)

Management Features:

• Smart dashboard for centralized event, sensor, and alarm monitoring
• Automated rule engine for real-time device response
• ESG-ready: CO₂ tracking and energy analytics
• Sensor location visualization via Google Maps
• Real-time alerts via SMTP email
• Sensor data export and history logs
• Role-based user access control

Security:

• IEC 62443-certified
• Two-factor authentication (2FA)
• SSL and hybrid VPN support

AI & Edge Capabilities:

• Built-in edge computing for low latency
• Predictive analytics and anomaly detection

Scalability:

• Supports up to 3,000 sensor nodes

Certifications:

• CE, FCC

Network Standards:

• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
