PLANET 24-Port GE SFP + 4-Port 10G SFP+ L2/L4 Managed Metro

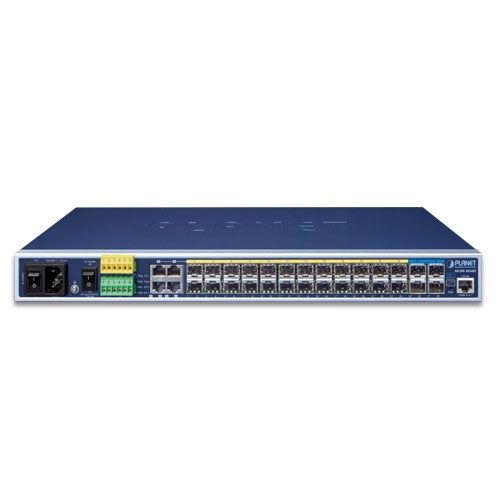

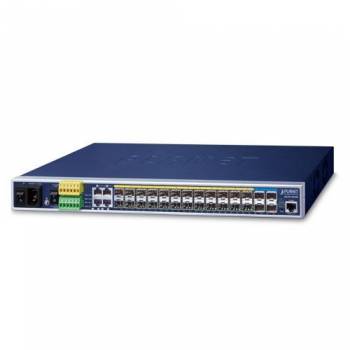

PLANET MGSW-28240F – High-performance 24-Port Layer 3 Metro Ethernet Switch with 10G Capability

The PLANET MGSW-28240F is a powerful Layer 3 switch designed for service providers and enterprise networks requiring high-speed fiber connectivity over long distances. With 24 SFP slots and 4 10G SFP+ ports, it delivers up to 158Gbps switching capacity and operates reliably between -10 to 60 °C, making it perfect for bandwidth-intensive and mission-critical networks.

Ideal for Core/Department Networking

This switch excels as a core layer component in a Gigabit network, linking up to 24 edge switches while maintaining high backbone throughput. The flexibility of triple-speed SFP+ interfaces allows the administrator to choose optimal transceivers for distance or speed requirements.

Robust and Redundant Power Design

The switch features both 100–240V AC and dual 36–60V DC power inputs with reverse polarity protection. It comes in a durable IP30 metal housing, is rack-mountable (1U), and features front-facing interfaces for easy installation and maintenance.

Advanced Layer 2/3 Functions and Network Security

The MGSW-28240F offers robust Layer 2 to Layer 4 capabilities including VLANs, QoS, Multicast and full IPv6 support. Security features like 802.1X, ACLs, DHCP snooping, and Dynamic ARP Inspection protect the network edge and core against modern threats.

Technical Details:

Physical Ports:

• 14 x 100/1000BASE-X SFP ports
• 10 x 100/1000/2500BASE-X SFP ports
• 4 x 10/100/1000BASE-T RJ45 ports (shared)
• 4 x 10GBASE-SR/LR SFP+ slots
• 1 x RS232 to RJ45 console port

Power Supply:

• AC: 100–240V, 50/60Hz
• DC: 36–60V redundant
• Power Consumption: max. 38.7 W

Dimensions and Weight:

• Dimensions: 443.7 x 200 x 44.2 mm
• Weight: 2.935 kg
• 1U Rackmount

Temperature Range:

• Operating: -10 to 60 °C (AC), -40 to 75 °C (DC)
• Storage: -40 to 80 °C

Layer 3 Features:

• OSPFv2, static IPv4/IPv6 routing
• Max. 128 routing entries
• 128 VLAN interfaces

Layer 2 Features:

• 802.1Q VLAN, Q-in-Q, Private VLAN, Voice VLAN
• LACP, static trunking, up to 14 groups
• STP/RSTP/MSTP, BPDU Guard
• Port mirroring, loop protection, ERPS

QoS & Multicast:

• 8 priority queues
• 802.1p, DSCP, TCP/UDP classification
• IGMP v1/v2/v3, MLD v1/v2 snooping

Security:

• IP/MAC-based ACLs
• 802.1X authentication
• RADIUS/TACACS+ integration
• DHCP Snooping, IP Source Guard, DAI

Management:

• CLI (console, Telnet), Web GUI, SNMPv1/v2c/v3
• SSHv2, TLSv1.2
• Dual firmware images, LLDP/LLDP-MED
• NTP, Syslog, SMTP, SFP-DDM support

Included Items:

• PLANET MGSW-28240F Switch
• Console cable (RS232 to RJ45)
• Power cable
• Rackmount kit
• User manual
