PLANET 7-Slot 25,4 cm ( 10 inch ) Media Converter Chassis

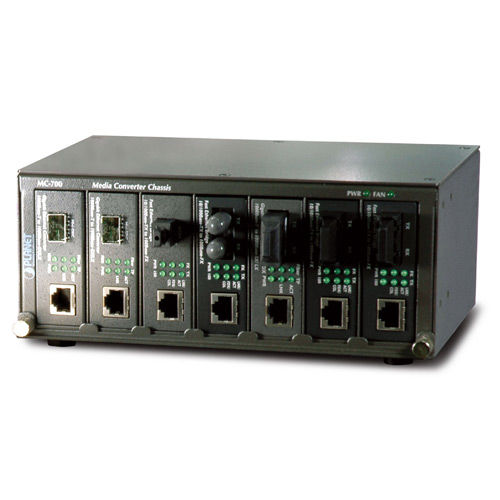

The PLANET MC-700 is a high-density 25,4 cm ( 10 inch ) rack-mountable media converter chassis designed to accommodate up to seven hot-swappable media converter modules. Compact yet powerful, the MC-700 is ideal for structured fiber-optic deployments in enterprise, campus, or edge networks, saving space while simplifying converter management.

Each slot is independently powered and electrically isolated, enabling hot-swappable installation without affecting other slots. It supports a wide range of PLANET media converters, including Fast Ethernet, Gigabit Ethernet, VDSL2, and serial-over-Ethernet modules. A built-in fan and LED indicators for power and fan status ensure reliable cooling and operational visibility.

Technical Specifications (English):

Capacity:

• 7 converter slots (hot-swappable)
• Compatible with PLANET FT-80x, FT-90x, GT-70x, GT-80x, GT-90x
• Also supports VDSL2 (VC-201A, VC-231) and serial (ICS-10x) media converters

Power:

• Input: 100–240V AC, 50/60Hz
• Output per slot: +5V DC
• Max Power Consumption: 40W / 136 BTU
• DC Jack per slot: 2.5 mm receptacle
• Per-slot power isolation

Chassis & Cooling:

• Dimensions: 217 × 140 × 88.5 mm (W × H × D), 2U height
• Housing: Metal, 10” rack-mountable
• Cooling: 1 built-in fan
• LED Indicators: Power, Fan

Environmental:

• Operating Temperature: 0 – 50 °C
• Storage Temperature: -40 – 70 °C
• Operating Humidity: 5 – 90% (non-condensing)
• Storage Humidity: 5 – 90% (non-condensing)

Certifications:

• FCC Part 15 Class A, CE compliant

Highlights:

• Space-saving 25,4 cm ( 10 inch ) rack chassis with 7 independent converter slots
• Plug-and-play and hot-swappable design
• Centralized power distribution and media conversion management
• Electrical protection against over-voltage, over-current, and short-circuit
• Ideal for compact networking environments and scalable fiber deployments
