PLANET 48,3 cm ( 19 inch ) 16-slot SNMP Managed Media Converter Chassis

The PLANET MC-1610MR and MC-1610MR48 are advanced 48,3 cm ( 19 inch ) rack-mountable managed media converter chassis designed for FTTx applications across ISPs, telecoms, enterprises, and campus networks. Supporting up to 16 hot-swappable slots and full centralized management capabilities, these chassis are optimized for Smart Media Converters from PLANET’s FST-80x, GST-80x, and XST-705A series, enabling Fast, Gigabit, and 10G Ethernet fiber conversion.

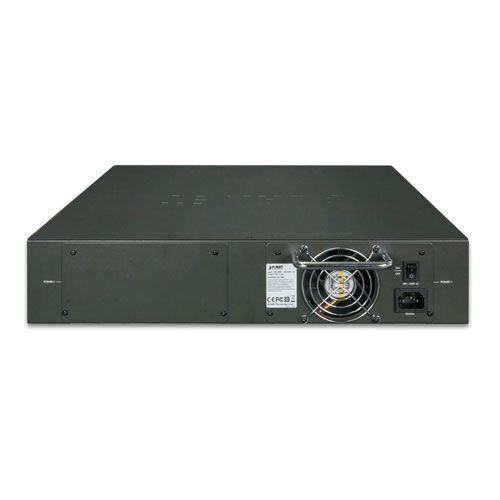

The MC-1610MR series supports SNMP, Web, and console management interfaces, with real-time status monitoring of each installed media converter. Designed for high availability, it includes redundant AC or -48V DC power inputs and temperature-controlled fan cooling. Integrated monitoring for power and fan failures helps prevent downtime in mission-critical deployments.

Technical Specifications (English):

Slots & Compatibility:

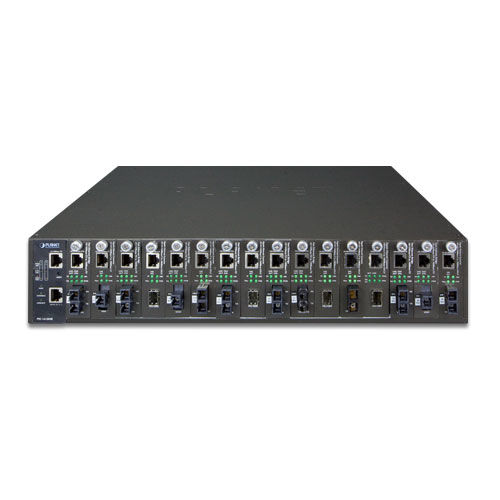

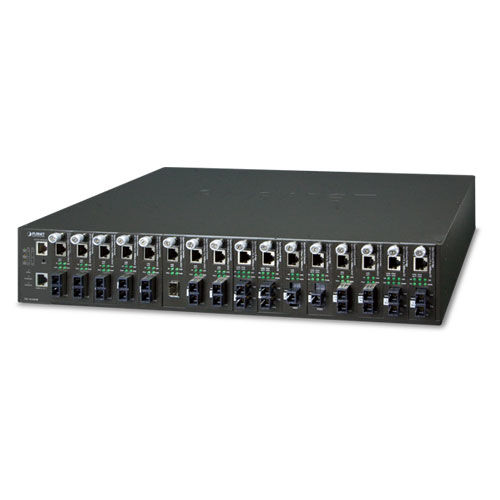

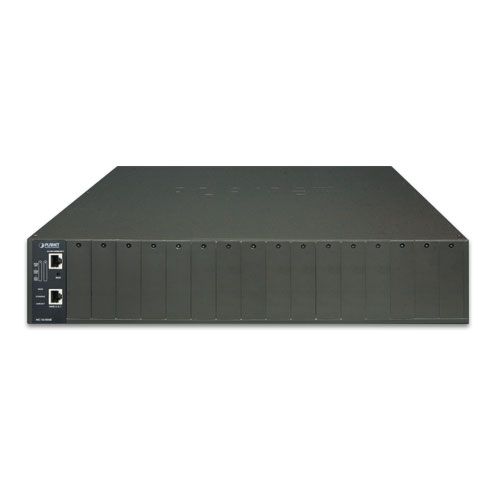

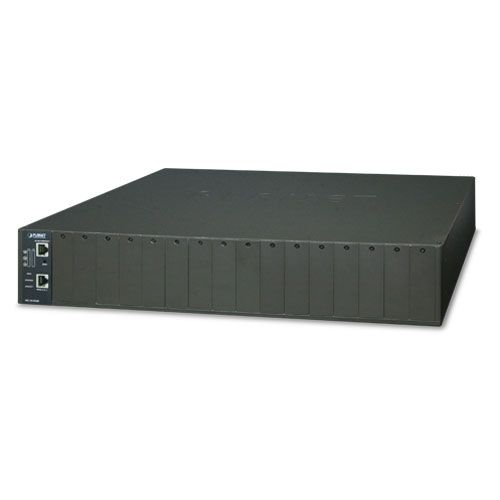

• 16 hot-swappable media converter slots (15 × 80 × 26 mm)
• Supports PLANET Smart converters: FST-80x, GST-80x, XST-705A
• Media types supported: Copper to Fiber (FX, SX, LX), 10GBASE-SR/LR

Management:

• Interfaces: Web, Console (RS232), SNMP v1/v2c
• Features: SNMP Trap (link up/down, cold start), DHCP/DNS client, NTP, remote & local syslog
• Redundant media link (automatic failover)
• Slot-level monitoring: speed, duplex, link status
• PLANET Smart Discovery Utility supported

Hardware:

• Dimensions: 440 × 350 × 88 mm (W × D × H), 2U height
• Weight: 7 kg
• Interfaces: 1 x 10/100/1000BASE-T, 1 x RS232 console port, 1 x reset button
• LEDs: Management, Console, LNK/ACT, Power ON (x2), Power Fail (x2), Fan Fail (x2)

Power:

• MC-1610MR: 100–240V AC, 1A, 50–60Hz
• MC-1610MR48: -48V DC, 2A (range: -40V ~ -60V)
• Output: 5V DC, up to 2A per slot
• Power Consumption:
• MC-1610MR: 10W (system only), 46.9W (fully loaded)
• MC-1610MR48: 5.3W (system only), 96W (fully loaded)

Environmental:

• Operating Temp: 0 – 50 °C, 5 – 90% RH
• Storage Temp: -20 – 70 °C

Certifications:

• FCC Class A, CE marked

Key Features:

• Centralized Smart Media Converter Management

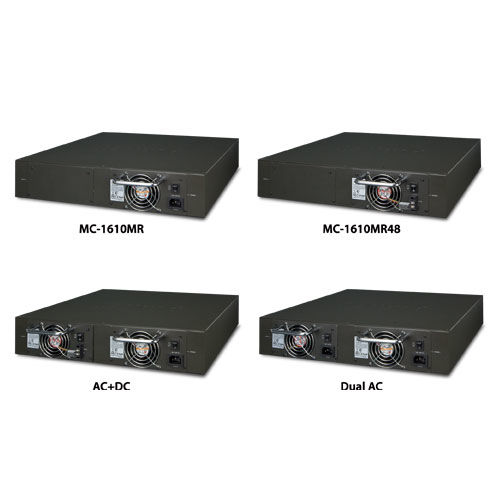

• Redundant power input slots (AC and -48V DC options)
• Redundant media link failover
• Slot-based power isolation for uninterrupted operation
• Ideal for FTTx, campus, carrier, and data center fiber networks
