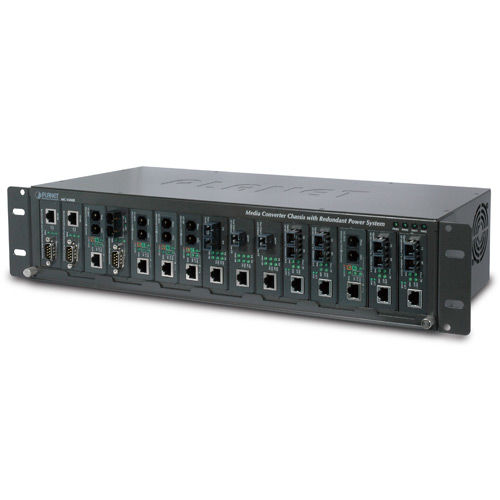

PLANET 15-Slot Media Converter Chassis (AC Power) Redundant
|
442,88 EUR |
|
|
( 527,03 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1225981 |
|---|---|
| Mfg Part No: | MC-1500R |
| UPC/EAN: | 4711213687761 |
| Weight: | 5.62 kg |
Product information for Planet MC-1500R:

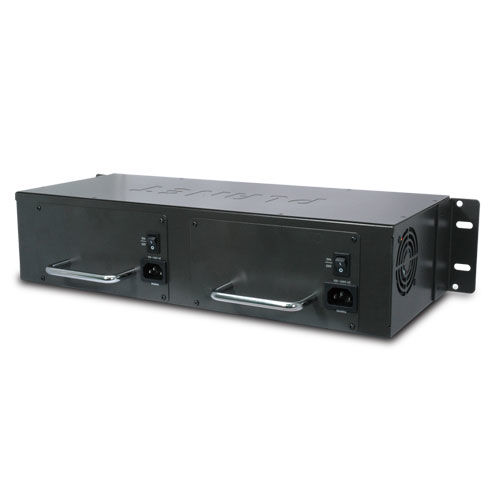

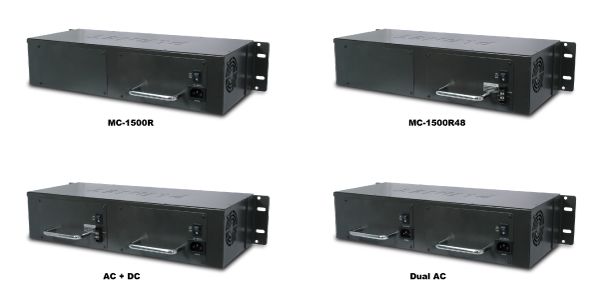

Each bay features an independent power feed, allowing converters to be hot-swapped without affecting other devices. The MC-1500R includes an AC power unit (100–240V), while the MC-1500R48 includes a –48V DC unit. Both support redundant power modules for uninterrupted operation. Integrated cooling is ensured via two internal fans, and system/fan status is monitored via front-panel LEDs.
Technical Specifications (English):
General:
- Format: 48,3 cm ( 19 inch ) rack-mountable, 2.4U height
- Slots: 15 open slots
- Slot Dimensions: 27 × 95 × 71 mm (W × D × H)
- Supported Converters:
- Ethernet: FT-80x / FT-90x series
- Gigabit: GT-70x / GT-80x series
- VDSL2: VC-201A / VC-231
- Serial: ICS-10x series
Power Supply:
- Input: 100–240V AC, 3.3A, 50–60Hz (MC-1500R)
- Optional: –48V DC (MC-1500R48)
- Output per slot: 5V DC, 1A
- Consumption: 10W (system only), 80W (fully loaded)
- Protection: Over-voltage, over-current, short circuit
- Electrical isolation per slot
Cooling & Indicators:
- Cooling: 2 x fans built-in
- LEDs: Power1, Power2, Fan1, Fan2
Construction:
- Dimensions: 440 × 180 × 102.3 mm (W × D × H)
- Weight: 4.3 kg
- Housing: Metal enclosure
Environment:
- Operating Temp: 0 – 50 °C, 5 – 90% RH (non-condensing)
- Storage Temp: –20 – 70 °C, 5 – 90% RH
Certifications:
- FCC Class A, CE mark
Highlights:
- Hot-swappable converter slots for uninterrupted service
- Optional redundant power system
- Centralized solution for Ethernet/fiber/DSL/serial conversion
- Designed for FTTx, campus, and ISP deployments
- Compatible with PLANET MC converter chassis series
