PLANET 15-slot 48,3 cm ( 19 inch ) media converter chassis

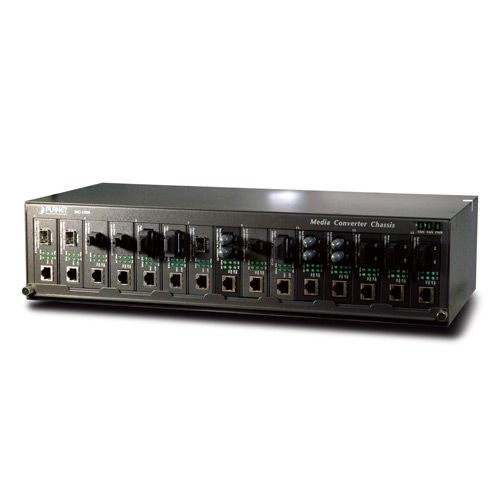

The PLANET MC-1500 is a high-quality 48,3 cm ( 19 inch ) rack-mountable media converter chassis that accommodates up to 15 modular media converters. Designed for space-saving and centralized fiber-optic wiring management, the MC-1500 serves as an ideal media conversion center with a compact 2.4U form factor.

Each bay in the chassis operates with independent power, allowing hot-swappable installation or replacement of converters without affecting other network connections. Two built-in cooling fans with LED indicators ensure stable operation and easy system monitoring. The MC-1500 supports a wide variety of PLANET media converters, including Ethernet, Fast Ethernet, Gigabit Ethernet, copper-to-fiber, and SX-to-LX conversions.

Technical Specifications (English):

Slots:

• Number of Slots: 15 open bays
• Slot Dimensions: 27 × 95 × 71 mm (W × D × H)
• Compatibility: PLANET Ethernet / Fast Ethernet / Gigabit Ethernet converters

Chassis & Dimensions:

• Dimensions: 440 × 103 × 180 mm (W × H × D)
• Rack Height: 2.4U
• Enclosure: Metal, 19” rack-mountable

Power Supply:

• Input: 100–240V AC, 1.8A, 50/60Hz
• Output per Slot: +5V DC, minimum 1A
• Voltage Regulation: ±1%
• Electrically isolated bays for uninterrupted operation

Cooling & Indicators:

• Fans: 2 cooling fans with airflow design
• LED Indicators: Power, Fan A, Fan B (On: normal operation; Off: failure)

Environmental:

• Operating Temperature: 0 – 50 °C
• Storage Temperature: –20 – 70 °C
• Humidity: 0 – 90% (non-condensing)

Certifications:

• FCC Class A, CE-marked

Highlights:

• High-density media conversion center for fiber-optic networks
• Supports copper and fiber connectors (ST, SC, MTRJ)
• Compatible with both multimode and single-mode converters
• Centralized LED status monitoring
• Easy maintenance, cost-effective deployment, hot-swappable design
